2.3.3 Multi Laser Module
The multi laser module contains the laser units for the individual laser lines and the corresponding
electronic system. The laser modules can be configured for a maximum of four laser lines (refer to section
2.7 Technical Data).
An optical fiber cable links the laser module with the spinning disc unit.

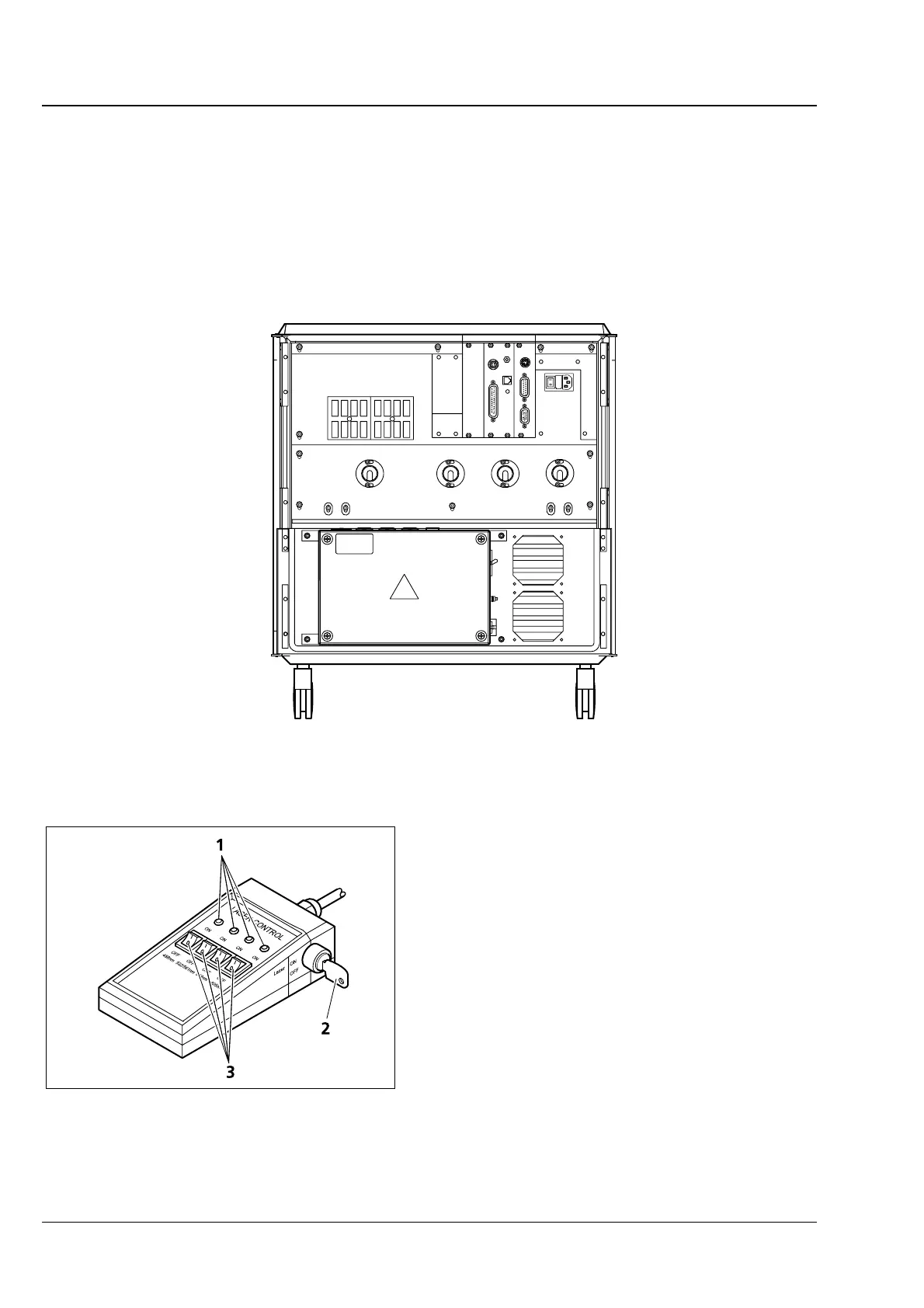

Fig. 2-4 Multi laser module
The laser lines are controlled by means of the laser
controller included in the delivery, which is
connected to the multi laser module. The key-
operated switch (
Fig. 2-5/2) is used to switch the
laser line system on and off.
The individual laser lines can be switched on by
means of the corresponding switches (
Fig. 2-5/3)
of the laser controller. The status LEDs (
Fig. 2-5/1)
indicate the active laser lines. The laser lines are
switched off by means of the key-operated switch.
Fig. 2-5 Laser controller
