Zeiss Cell Observer SD - CSU-X1 Control Box; Multi Laser Module

OPERATION
Cell Observer SD Control and Functional Components Carl Zeiss
M60-2-0021 e 01/2009 423638-7044-001 51
4.1.2 CSU-X1 Control Box
1 Main power switch 2 Automatic circuit breaker switch

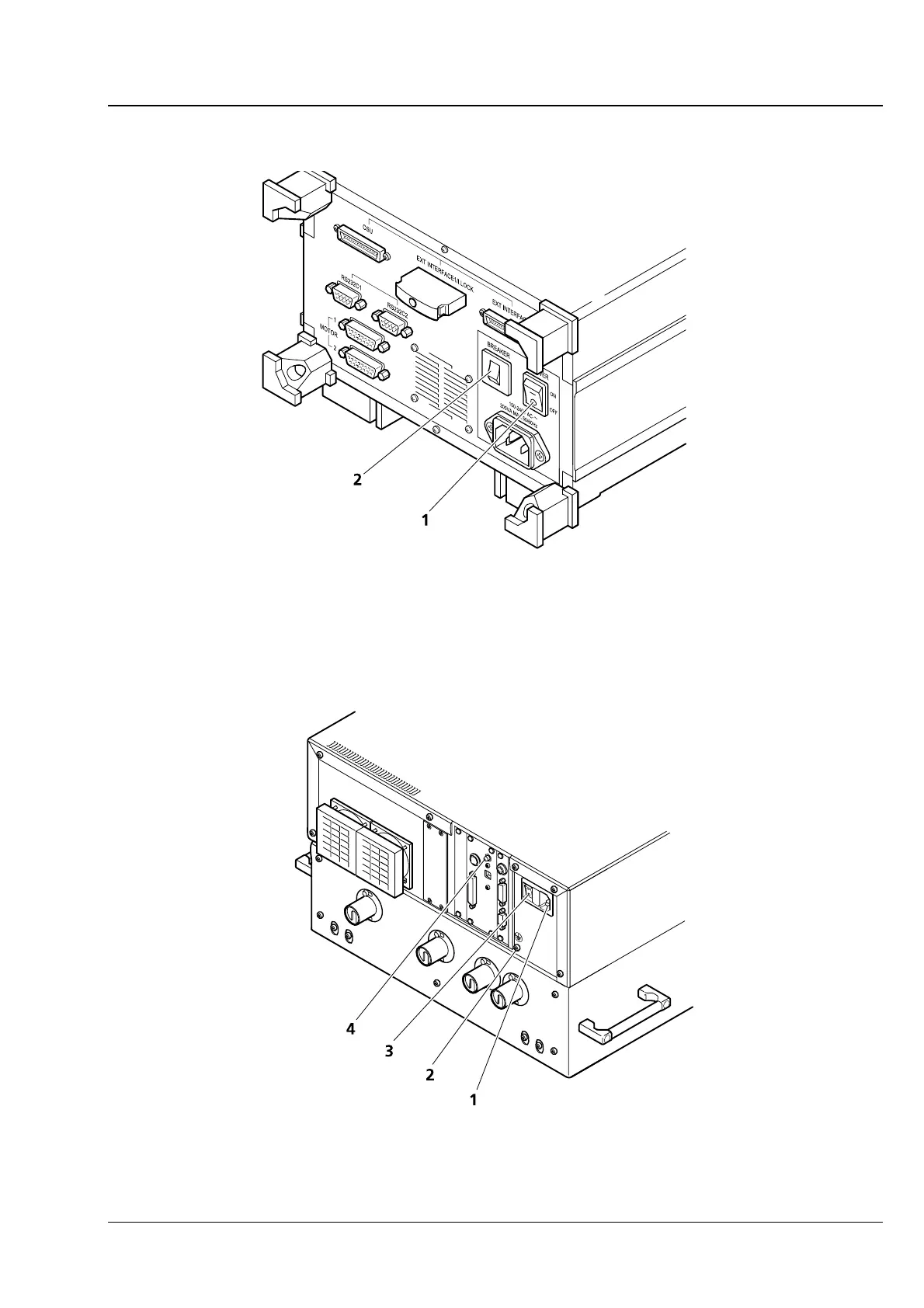

Fig. 4-2 Control and functional components of CSU-X1 control box (rear-side view)
4.1.3 Multi Laser Module
1 Line power inlet port 3 Main power switch
2 PE conductor terminal for PE cable (included in delivery) 4 AOTF Reset button
Fig. 4-3 Control and terminal components of multi laser module
