OPERATION
Carl Zeiss Control and Functional Components Cell Observer SD
50 423638-7044-001 M60-2-0021 e 01/2009
4 OPERATION
The Cell Observer SD is a class 3B laser device 3B and is labelled as such. WARNING: This risk
category includes medium-power lasers. Make sure to prevent exposure to radiation from such
lasers. Do not look directly into the laser beam!
4.1 Control and Functional Components
4.1.1 CSU-X1 Spinning Disc Unit
1 Shutter hbutton 4 Push-rod for camera channel switching
2 ON/OFF key switch with control LED 5 Emission filter slide
3 Control LED

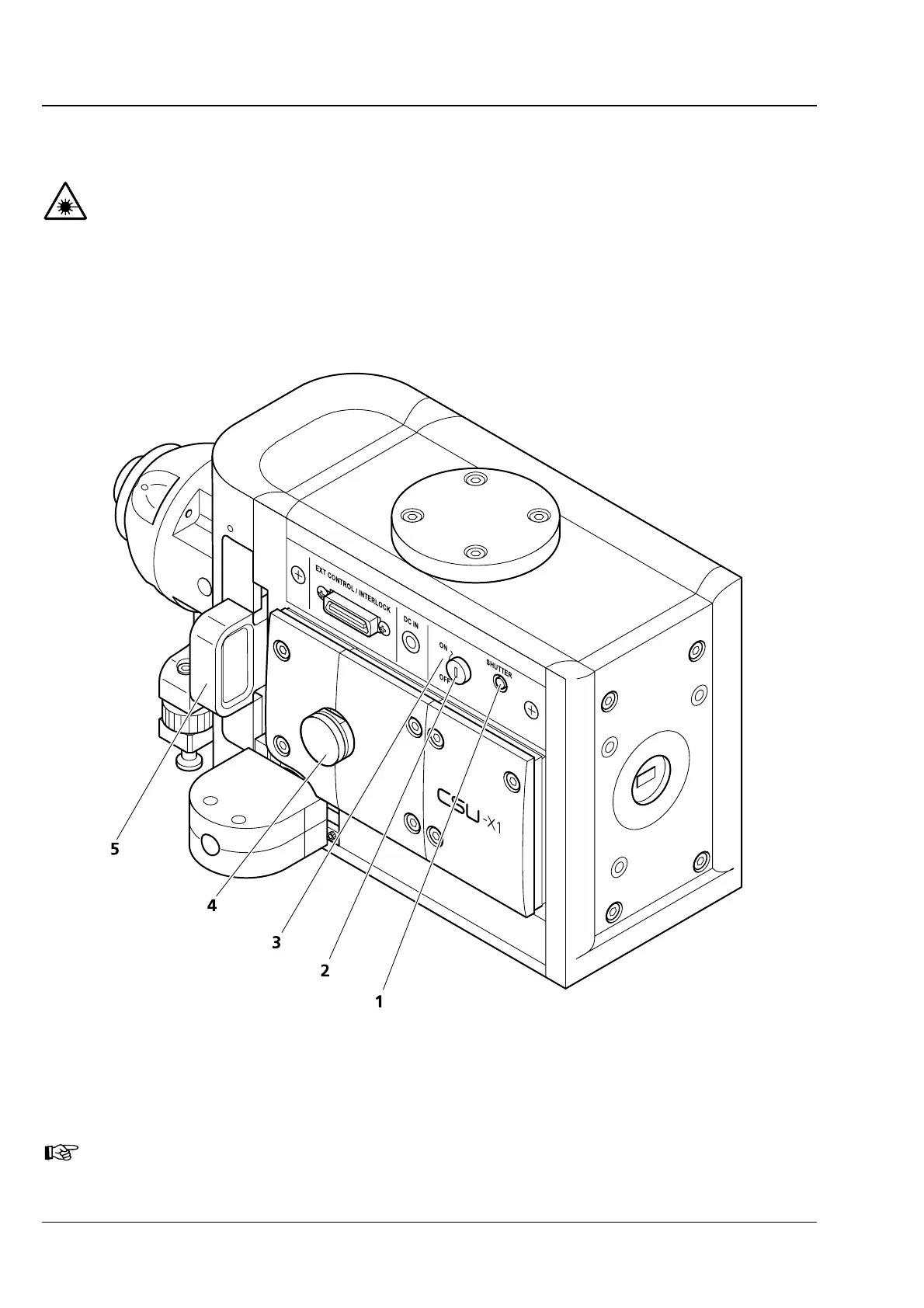

Fig. 4-1 Control and functional components at the CSU-X1 spinning disc unit
The CSU-X1M 1800/5000 Dual Cam type spinning disc units have two emission filter slides.
