5.7.1.2.2 Function Code C6 – Clutch Ahead Travel
This function adjusts the amount of Clutch push-pull cable travel in both the Ahead and the
Astern directions.
The available Values are 00.0 to 100.0 percent of the maximum available travel from Neutral
to Ahead.
The Default Value is 80%.
To determine, and if required, change the Value (Refer to Sections Section 5.2: Activating
Set Up Mode and Section 5.3: Storing Values To Memory):
A Move the Control Head lever to the Ahead detent.
B Move the Clutch Selector Lever to the Ahead stop.
C Does the cable’s ball joint and lever align?
• If yes, no further adjustment of this Function is required.

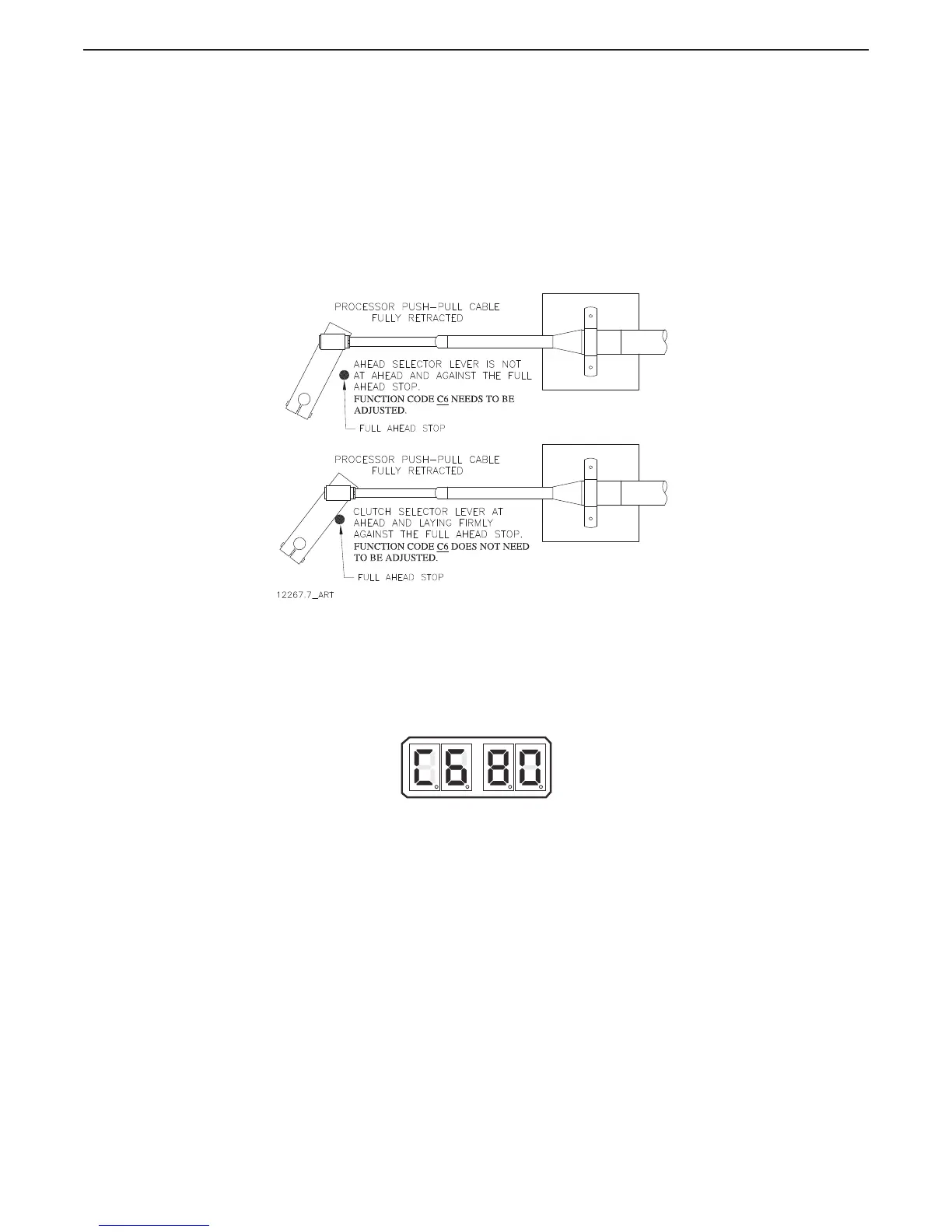

Figure 5-37: Clutch Push-Pull Cable Ahead Position
• If no, continue with the next step.
D Scroll to Function Code C6.
E Activate Set Up Mode.
F Scroll Up or Down until the ball joint and lever align perfectly.
G Store the Value to memory.
H Return the Control Head lever to the Neutral/Idle position.
Figure 5-38: Display LED Function C6 Set Up Activated
To Next Page
