INTRODUCTION
MM9000 Rev C.8 01/13 Page 25
MM9000 ClearCommand User Manual
Introduction
1.1.4 9211 Processor (Throttle - Electronic, Shift - Servo 1, Troll - Servo 2)
The 9211 System is designed for pleasure and light commercial marine vessels that require remote
control of:
• electronic engine governors
• mechanically actuated clutches
• mechanically actuated trolling valves.
The Processor is typically mounted in the engine room area and is connected to the electronic
governor with a two-conductor, shielded, electric cable.
The transmission and trolling valve are controlled mechanically using a standard 33C type push-pull
cable.

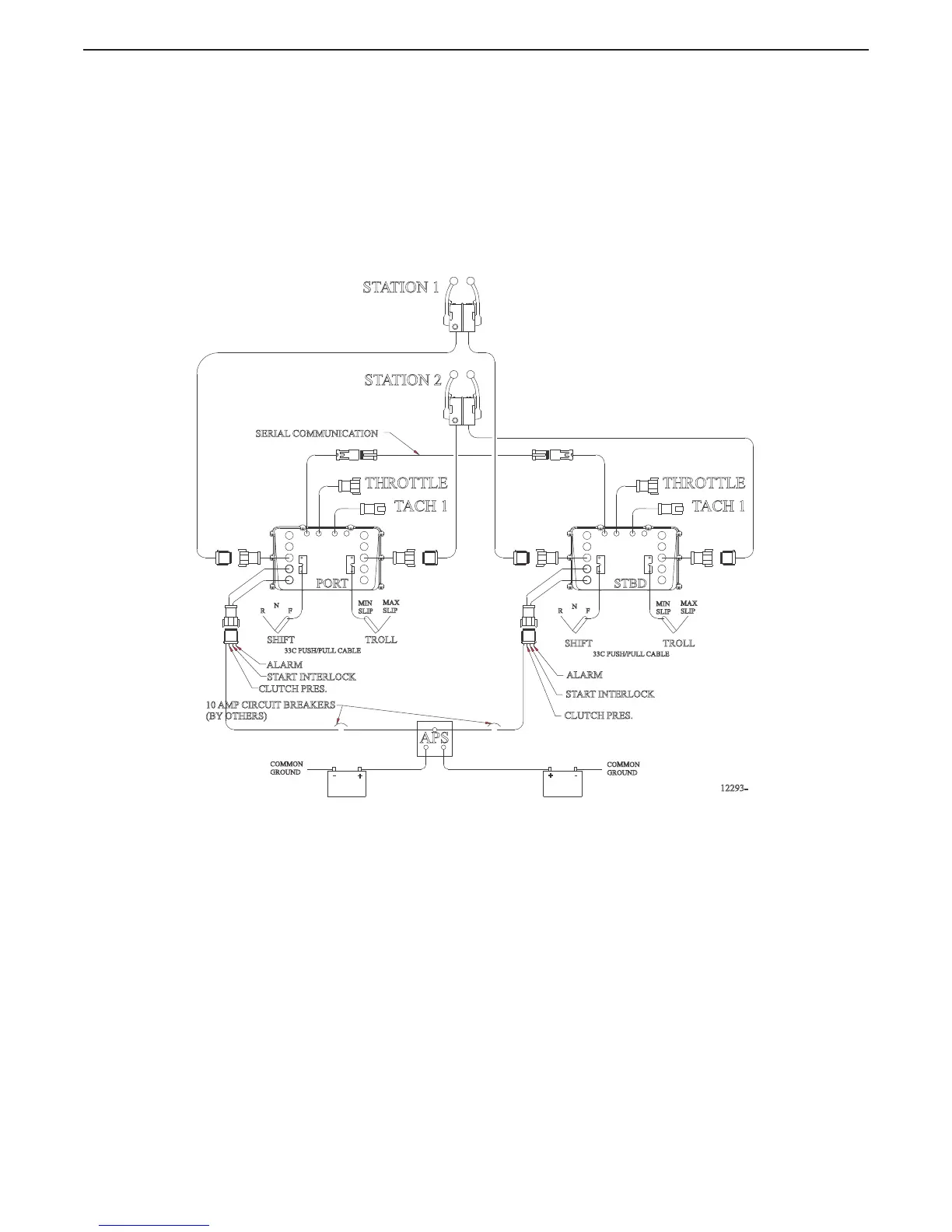

Figure 1-4: Basic 9211 ClearCommand System Diagram
33C PUSH/PULL CABLE
33C PUSH/PULL CABLE
TROLLSHIFT
F
N
RFR
N
TROLLSHIFT
STBD
STATION 2
STATION 1
PORT
12293-
SERIAL COMMUNICATION
10 AMP CIRCUIT BREAKERS
(BY OTHERS)
COMMON
GROUND
COMMON
GROUND
+
-
+
-
APS
CLUTCH PRES.
START INTERLOCK
ALARM
START INTERLOCK
CLUTCH PRES.
ALARM
TACH 1 TACH 1
THROTTLETHROTTLE
MIN
SLIP
MAX
SLIP
MIN
SLIP
MAX
SLIP
