MMC-343: 7 Installation
Before starting the actual installation of the Station Expander, make sure you have the correct parts and
tools. See section MMC-343: 6 Tools For Installation. Read ALL the instructions pertinent to each part
before beginning the installation of that part
7.1 Station Expander

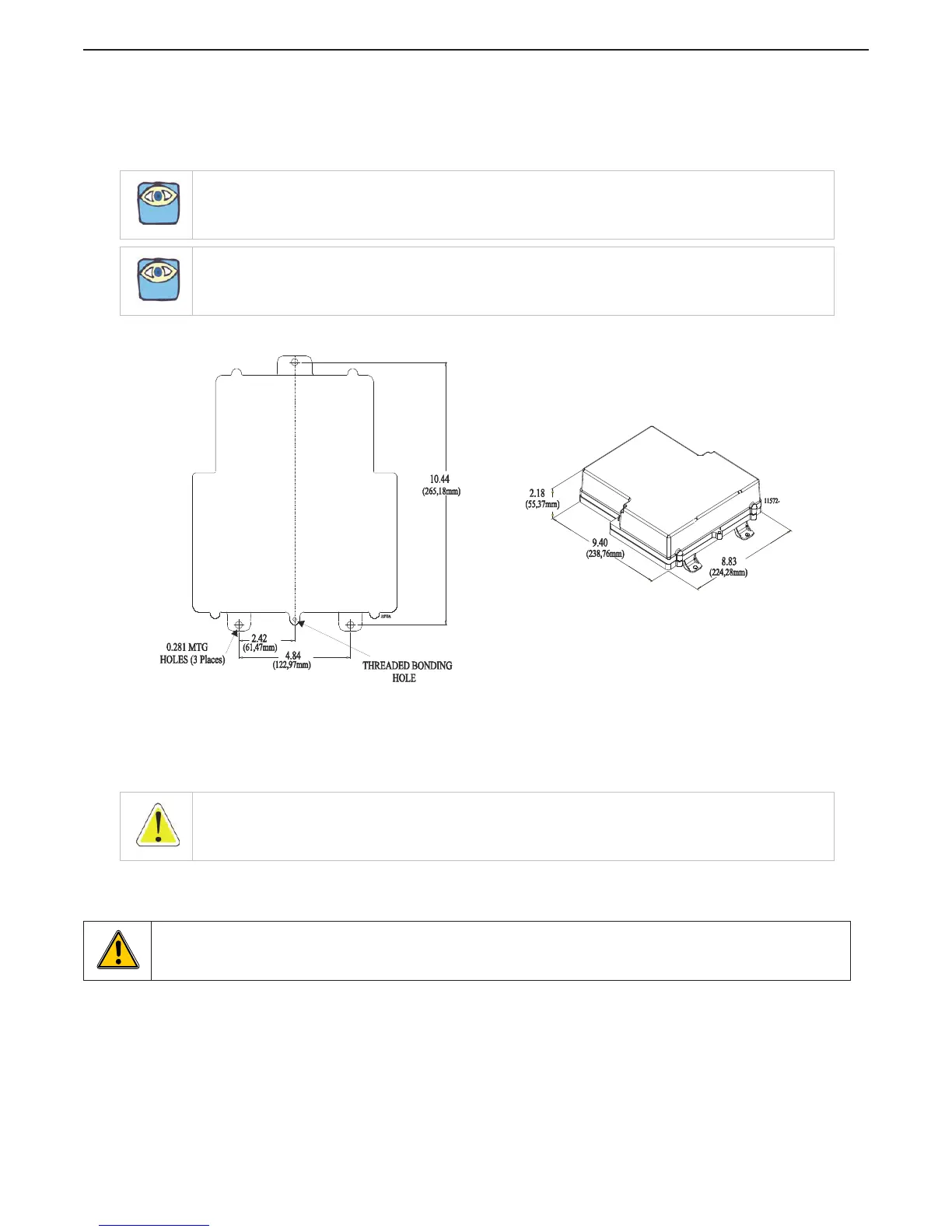

Figure MMC-343-4: Station Expander Dimensions
A Place the Station Expander on the mounting surface and mark the three screw holes.
B Remove the Expander and drill the screw holes.
C Secure the Expander using 1/4 inch or M6 fasteners.
D Connect to the Bonding System.
A Insert the Wire Harness plug into the POWER connector on the Station Expander.
B Continue with the following Sections that apply to this application.
NOTE: When connecting the plugs, ensure that the release buttons are depressed and held until plug is fully
connected. To disconnect the plugs, the release buttons MUST be held depressed until plug is disconnected.
NOTE: When installing the harness cable, support the cables using clamps or straps not more than 18 inches
(0,5m) apart, unless contained in a conduit. Install each cable so it is protected from physical damage. Refer
to ABYC Standard E-9.
WARNING: When connecting the Power Harness to the Station Expander be sure the power is OFF.
WARNING: Note that the dimensions are out of scale, pay attention to properly size the cut out before use !
