26 EN 3340.758.003a - 2014-11
INTRODUCTION
MM9000 Rev C.8 01/13 Page 26
MM9000 ClearCommand User Manual
Introduction
1.1.5 9221 Processor (Throttle - Electronic, Shift - Solenoid, Troll - Servo 2)
The 9221 System is designed for pleasure and light commercial marine vessels that require remote
control of:
• electronic engine governors
• solenoid activated clutches
• mechanically actuated trolling valves
The Processor is typically mounted in the engine room area and is connected to the electronic
governor with a two-conductor, shielded, electric cable.
The transmission’s Ahead and Astern solenoids are connected via 2 two-conductor cables, and the
trolling valve is controlled mechanically using a standard 33C type push-pull cable.

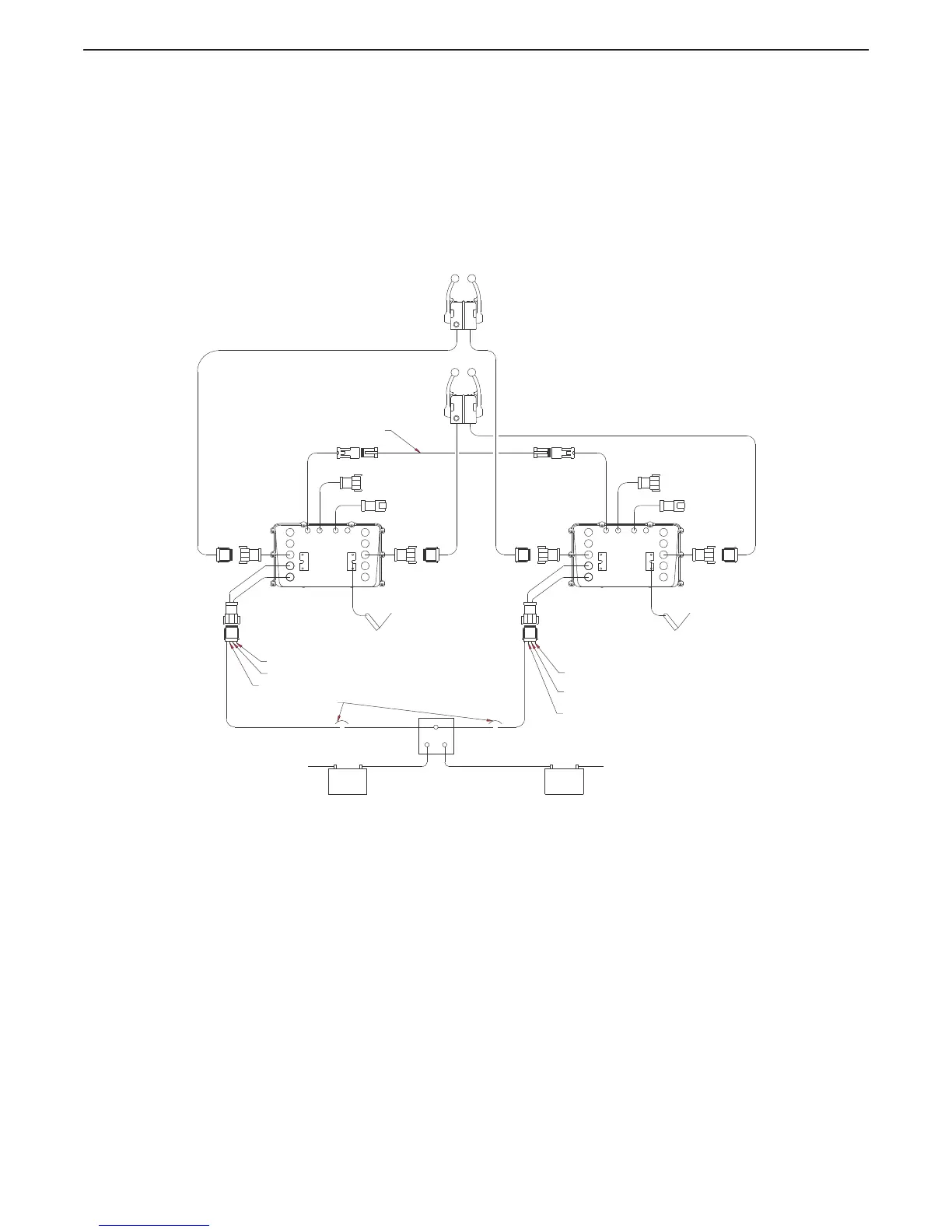

Figure 1-5: Basic 9221 ClearCommand System Diagram
1.2 System Features
1.2.1 Standard Features
• Station-in-Command indication. (Section 2.2: Taking Command)
• Up to five Remote Stations. (Section 2.2: Taking Command)
• Single Control Head lever command of speed and direction. (Section 2.3: Basic Operation)
33C PUSH/PULL CABLE
STBD
STATION 2
STATION 1
PORT
12297
SERIAL COMMUNICATION
10 AMP CIRCUIT BREAKERS
(BY OTHERS)
COMMON
GROUND
COMMON
GROUND
+
-
+
-
APS
CLUTCH PRES.
START INTERLOCK
ALARM
START INTERLOCK
CLUTCH PRES.
ALARM
TACH 1 TACH 1
THROTTLETHROTTLE
TROLL
MAX
SLIP
MIN
SLIP
TROLL
33C PUSH/PULL CABLE
MAX
SLIP
MIN
SLIP
