• Deactivates Set Up Mode WITHOUT any changes to the Function Value stored in memory.
(Operator must hold the button down until function code stops blinking, then release.) The
previously saved Function Value will then be displayed.

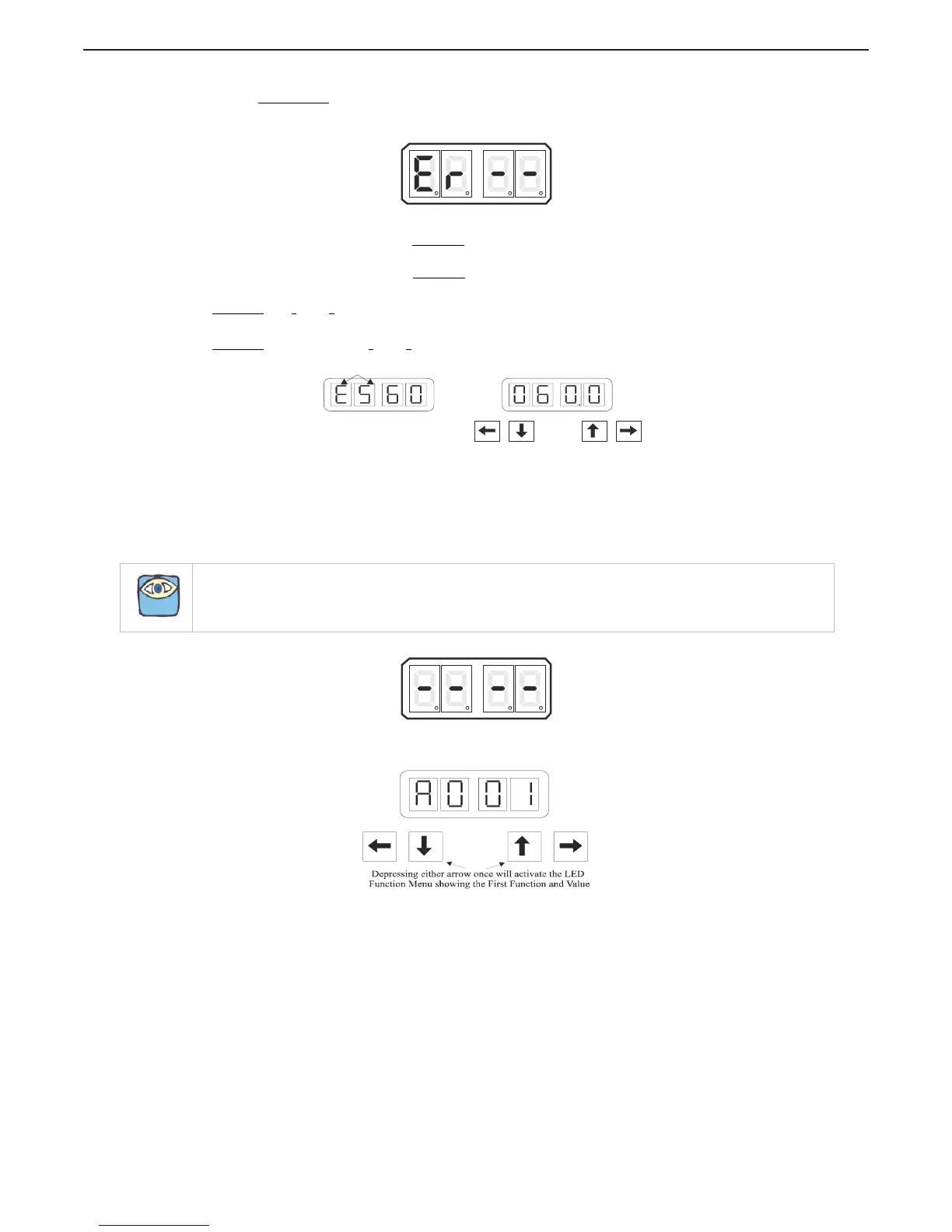

Figure MMC-343-8: Error Menu Example
• While in Function Menu, changes the Display LED to the Error Menu, if any errors are present.
(has no effect if there are no errors stored)
• While in the Error Menu, changes
the Display LED back to the Function Menu.
• “Right” Push Button Only
Pressing
the “Right” Push Button once has the following function:
• While in the Error Menu, clears inactive errors. (Active errors blink, inactive do not)
Pressing
and holding the “Right” Push Button has the following function:
Figure MMC-343-9: Display LED Four Digit Value
• While in Set Up Mode, or Function Menu, allows the Function Value of the current Function
Code to be displayed with all four Display LEDs.
MMC-343: 9 Activating Set Up Mode and Storing a Value
Figure MMC-343-10: Display Normal Operating Condition
Figure MMC-343-11: Display Function Menu Activated
A The Display is in Normal Operating condition with red running center dash lines.
NOTE: To escape from the set up procedure at any time without saving the changed value. Depress the LEFT
Arrow Push Button. The Function Code will stop flashing and the Function will be saved with the original
value.
Depress
and
Hold
Throttle Maximum
Function Code and Default Value
Blinking
15340_ART
To Next Page
