5. CABLE/HARNESS CONNECTIONS:

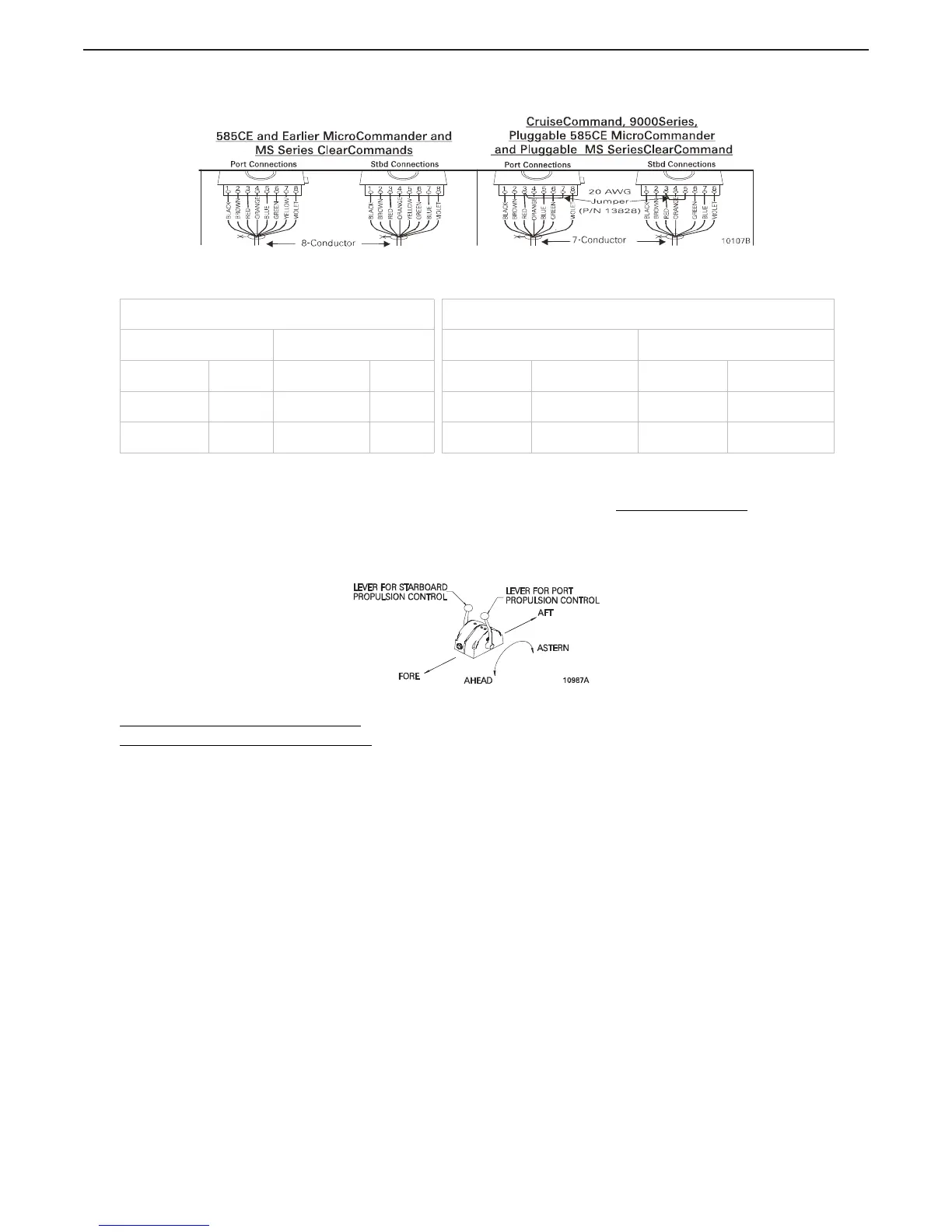

Figure MMC-280-4: Terminal Connections
Cable/Jumper connections 5 and 7 at the Port and Starboard terminal block are direction sensitive.
6. Pluggable Connections
Pluggable Control Heads are supplied with a harness pigtail for each lever. When disconnecting/
connecting the plugs, ensure that the release button or buttons are depressed and held
until plug is
fully disconnected or connected. Disconnecting/connecting plugs without depressing and holding
the release button or buttons WILL damage the plug.
7. AFT FACING CONTROL HEADS
Figure MMC-280-5: AFT Facing Control Head
For dual lever Control Head Stations that have the user facing aft: Reverse connections 5 and 7.
For single lever Control Head Stations
that have the user facing aft and the one Control Head lever on the
user’s right, reverse connections 5 and 7.
Handheld Control is a Station option. Contact your ZF Dealer for further information on Handheld
requirements and options.
MicroCommander/ClearCommand CruiseCommand/9000 Series
Port Lever: Starboard Lever: Port Lever: Starboard Lever:
Terminal 3 Red Terminal 3 Red Terminal 3 Red & JUMPER Terminal 3 Red & JUMPER
Terminal 5 Blue Terminal 5 Yellow Terminal 5 Blue Terminal 5 JUMPER
Terminal 7 Yellow Terminal 7 Blue Terminal 7 JUMPER Terminal 7 Blue
