24 EN 3340.758.003a - 2014-11
INTRODUCTION
MM9000 Rev C.8 01/13 Page 24
MM9000 ClearCommand User Manual
Introduction
1.1.3 9210 Processor (Throttle-Electronic, Shift-Servo 1)
The 9210 System is designed for pleasure and light commercial marine vessels that require remote
control of:
• electronic engine governors
• mechanically actuated clutches
The Processor is typically mounted in the engine room area and is connected to the electronic
governor with a two-conductor, shielded, electric cable.
The transmission is controlled mechanically using standard 33C type push-pull cable.

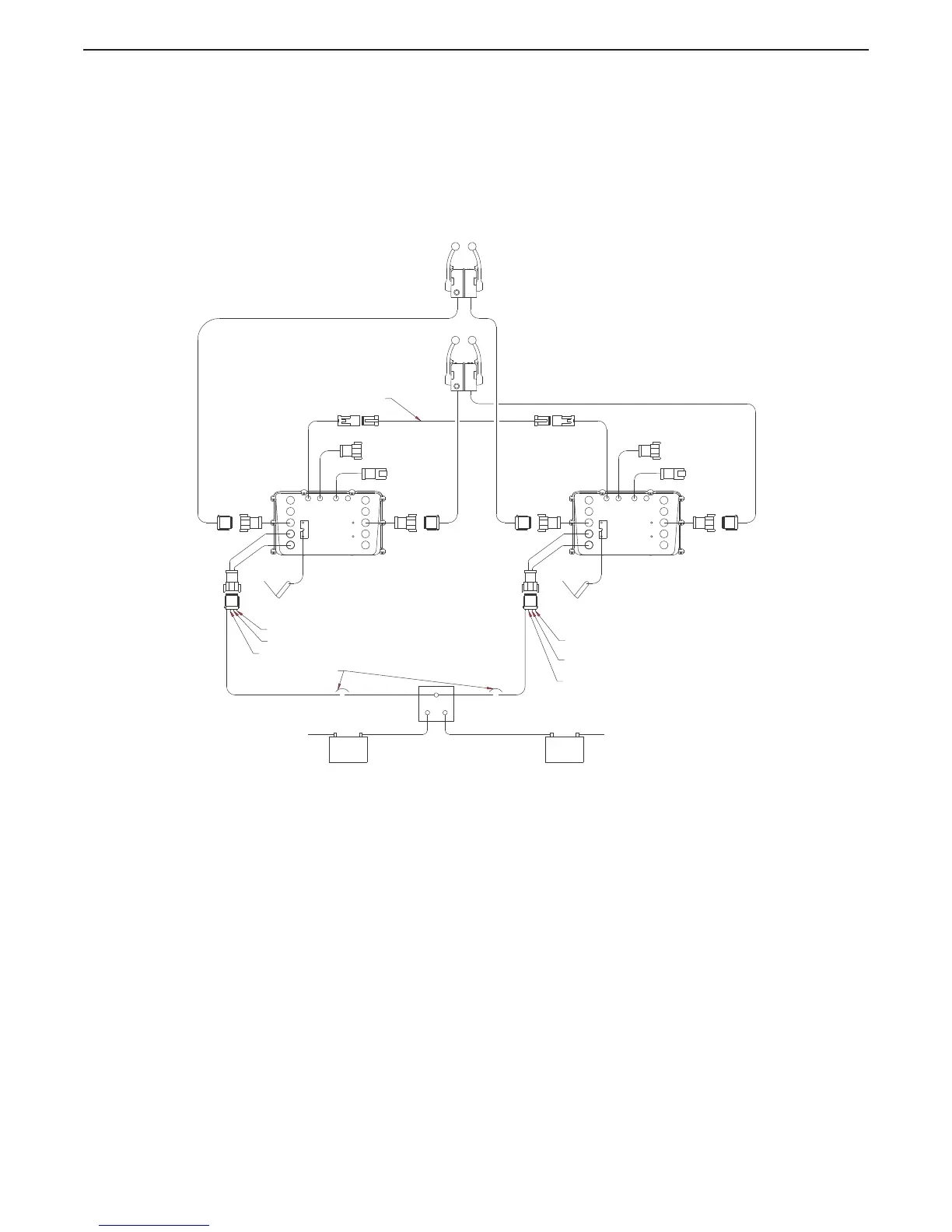

Figure 1-3: Basic 9210 ClearCommand System Diagram
33C PUSH/PULL CABLE
33C PUSH/PULL CABLE
SHIFT
F
N
RFR
N
STBD
STATION 2
STATION 1
PORT
12294-
SERIAL COMMUNICATION
10 AMP CIRCUIT BREAKERS
(BY OTHERS)
COMMON
GROUND
COMMON
GROUND
+
-
+
-
APS
CLUTCH PRES.
START INTERLOCK
ALARM
START INTERLOCK
CLUTCH PRES.
ALARM
TACH 1 TACH 1
THROTTLETHROTTLE
SHIFT
