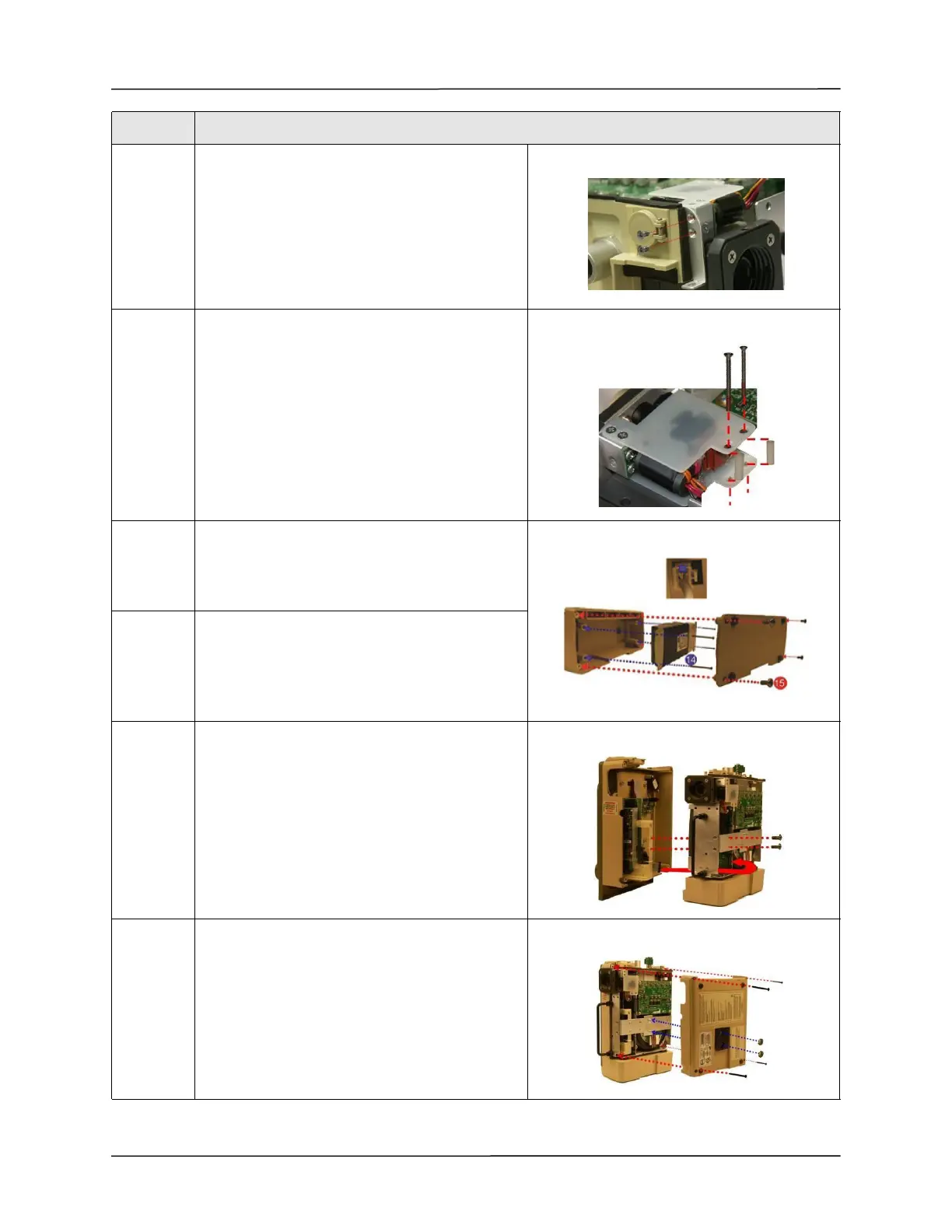

Service Kit Installation Procedures
906-0731-04-01 Rev. C ZOLL Ventilator Service Manual 4–71
12 Secure the Power Input assembly to the Connector
Panel using the two 4-40 x 1/4 screws (provided in
the kit).
13 Secure the Power Input assembly to the Chassis
using the two spacers and the two 4-40 x 1 1/4
screws (provided in the kit).
Note: Do not over-tighten the screws.
(Maximum torque - 3.5 in.- lb.)
14 Re-assemble the battery by connecting its cable to
the connector (pull lightly on cable to ensure it s
locked in place) then tightening the four 6-32 x 2 1/
4 screws.
15 Re-assemble the battery compartment cover by
tightening the four 6-32 x 5/16 screws.
16 Place the front case assembly over the ventilator
module and tighten the two 4-40 x 1/4 screws unto
the dovetail mounting bracket.
Reconnect the ribbon cable unto the PIM board.
Make sure the two ejector latches are secured.
17 Attach the back case to the ventilator module and
align cover with handle, air intake housing and
dovetail mounting studs.
Insert and tighten the four 6-32 x 2” screws and
then the two 10-32 Keps nuts (provided in the kit).
