Service Kit Installation Procedures
906-0731-04-01 Rev. C ZOLL Ventilator Service Manual 4–79

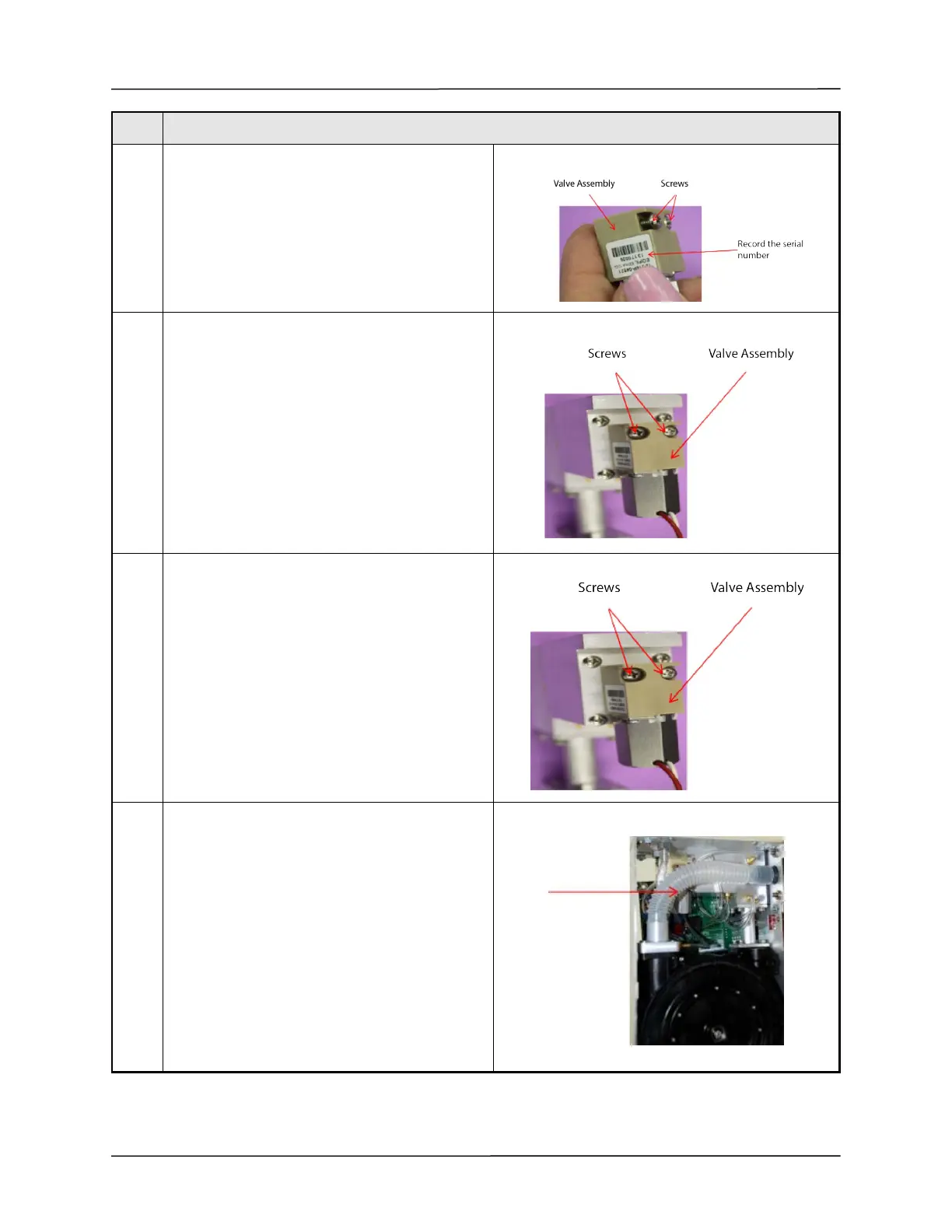

10 Hold Valve Assembly with the O-Rings attached
and insert the 2 screws.
Phillips, Pan Head, 4-
40 x 11/16 (P/N 358-0440-11)
Record serial number used in your service records.
11 Attach Valve Assembly to the Oxygen Inlet
Manifold in the orientation as shown and tighten
with 2 screws (4-40 x 11/16).
Note: Make sure the O-rings stay in place.
12 Note orientation of Oxygen Flow valve cable.
Connect Oxygen Flow Valve cable to J2 of SPM
PCB. Test that the connector is locked in place by
gently pulling up on the connector.
13 Re-attach the 6" corrugated tubing if it was
previously removed.
Step Procedure
