Service Kit Installation Procedures
4–80 www.zoll.com 906-0731-04-01 Rev. C

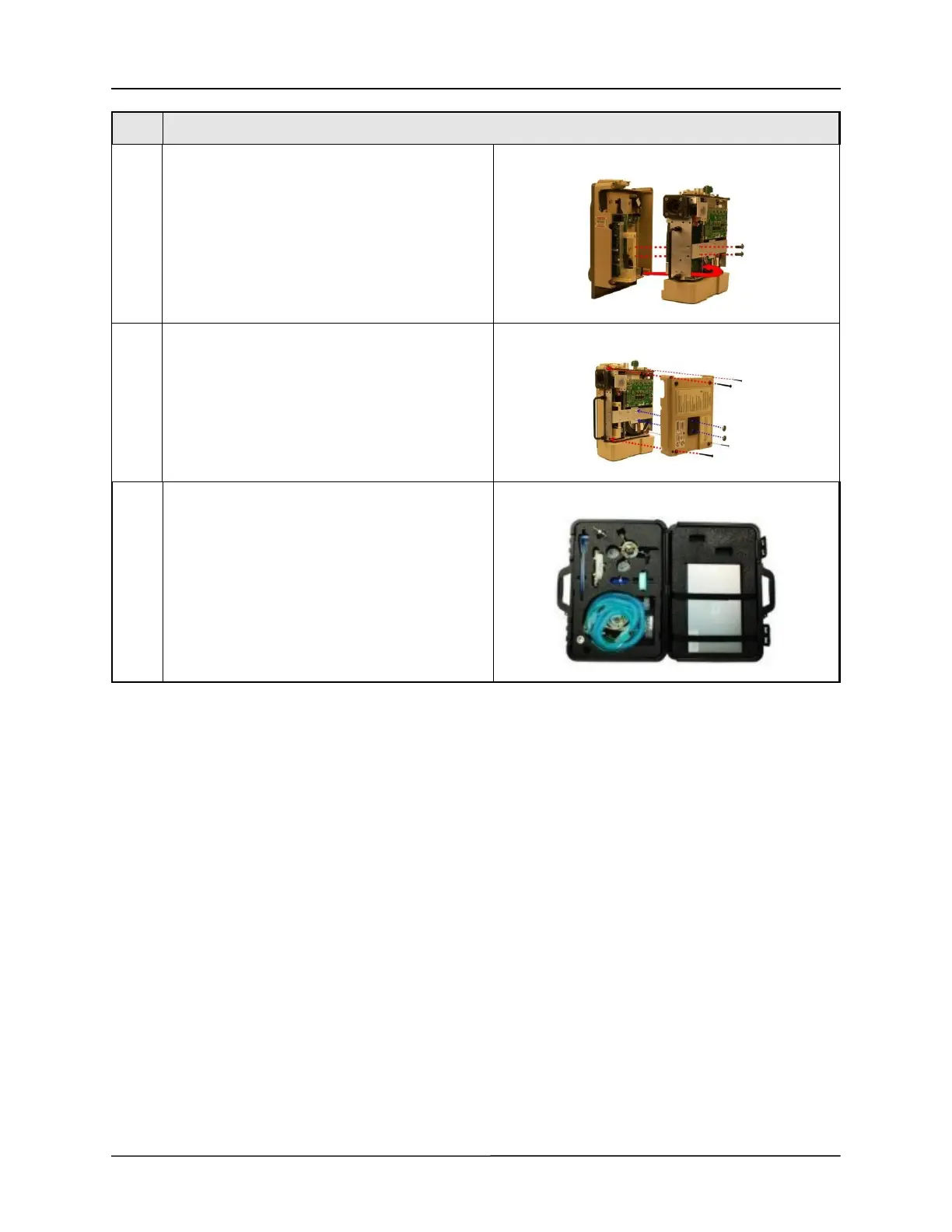

14 Place the front case assembly over the ventilator
module and tighten the two 4-40 x 1/4 screws to
the dovetail mounting bracket.
Reconnect the ribbon cable unto the PIM board.
Make sure the two ejector latches are secured.
15 Attach the back case to the ventilator module and
align cover with handle, air intake housing and
dovetail mounting studs.
Insert and tighten the four 6-32 x 2” screws and
then the two 10-32 Keps nuts (provided in the kit).
16 Re-certify the ventilator using the RCS.
Step Procedure
