Service Kit Installation Procedures
906-0731-04-01 Rev. C ZOLL Ventilator Service Manual 4–23

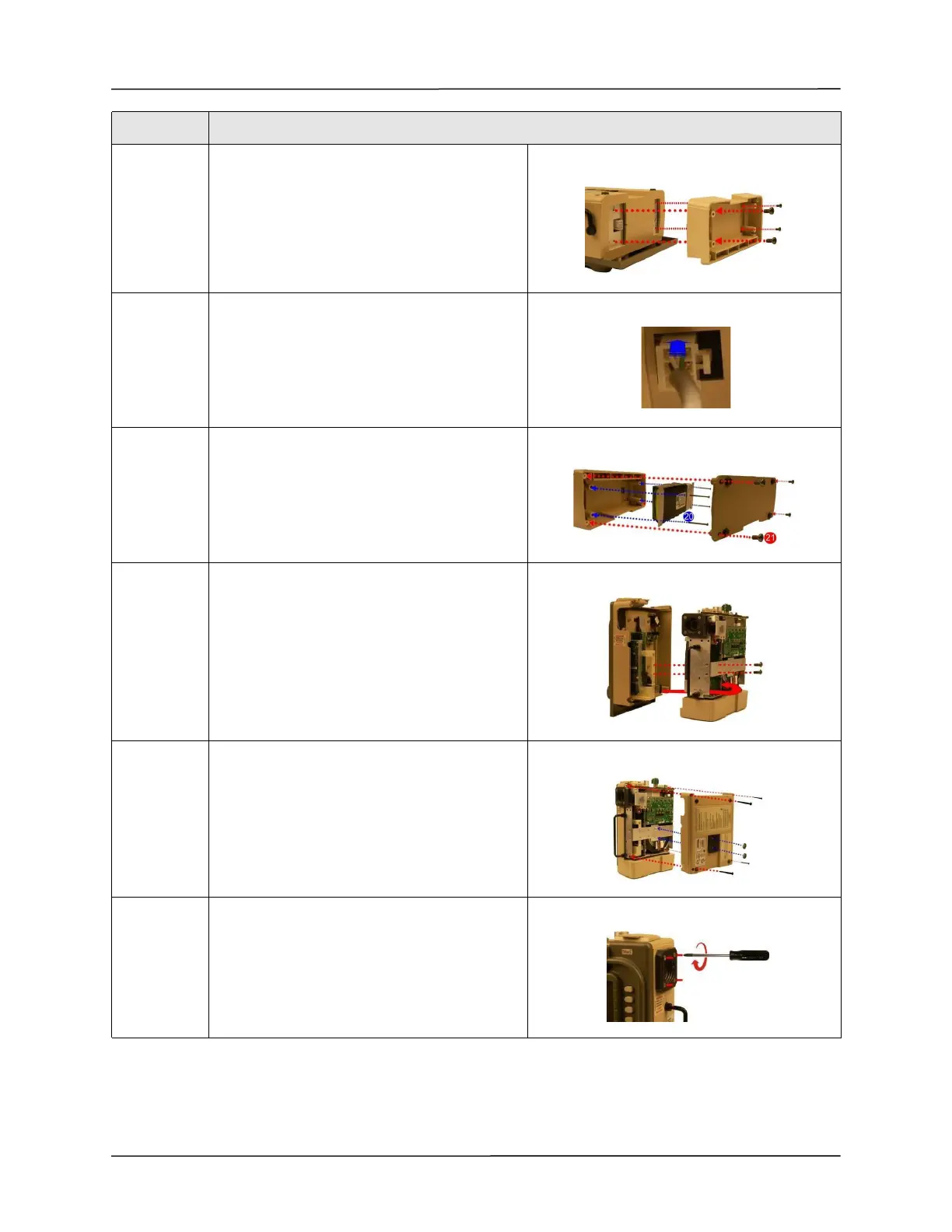

19 Rotate battery compartment to mate with upper
and lower case cutouts and press firmly into
place. Secure it with the
four 6-32 x 5/16 screws provided.
20 Re-assemble the battery by connecting its cable
to the connector (pull lightly on cable to ensure
it is locked in place), then tighten the four 6-32 x
2 1/4 screws.
21 Re-assemble the battery compartment cover by
tightening the four 6-32 x 5/16 screws.
22 Place the front case assembly over the ventilator
module and tighten the two 4-40 x 1/4 screws to
the dovetail mounting bracket.
Reconnect the ribbon cable unto the PIM board.
Make sure ejector latches are secured.
23 Attach the back case to the ventilator module
and align cover with handle, air intake housing
and dovetail mounting studs.
Insert and tighten the four 6-32 x 2” screws and
then the two 10-32 Keps nuts (provided in the
kit).
24 Tighten the four 8-32 x 3 screws on the outer air
intake.
