Service Kit Installation Procedures
4–22 www.zoll.com 906-0731-04-01 Rev. C

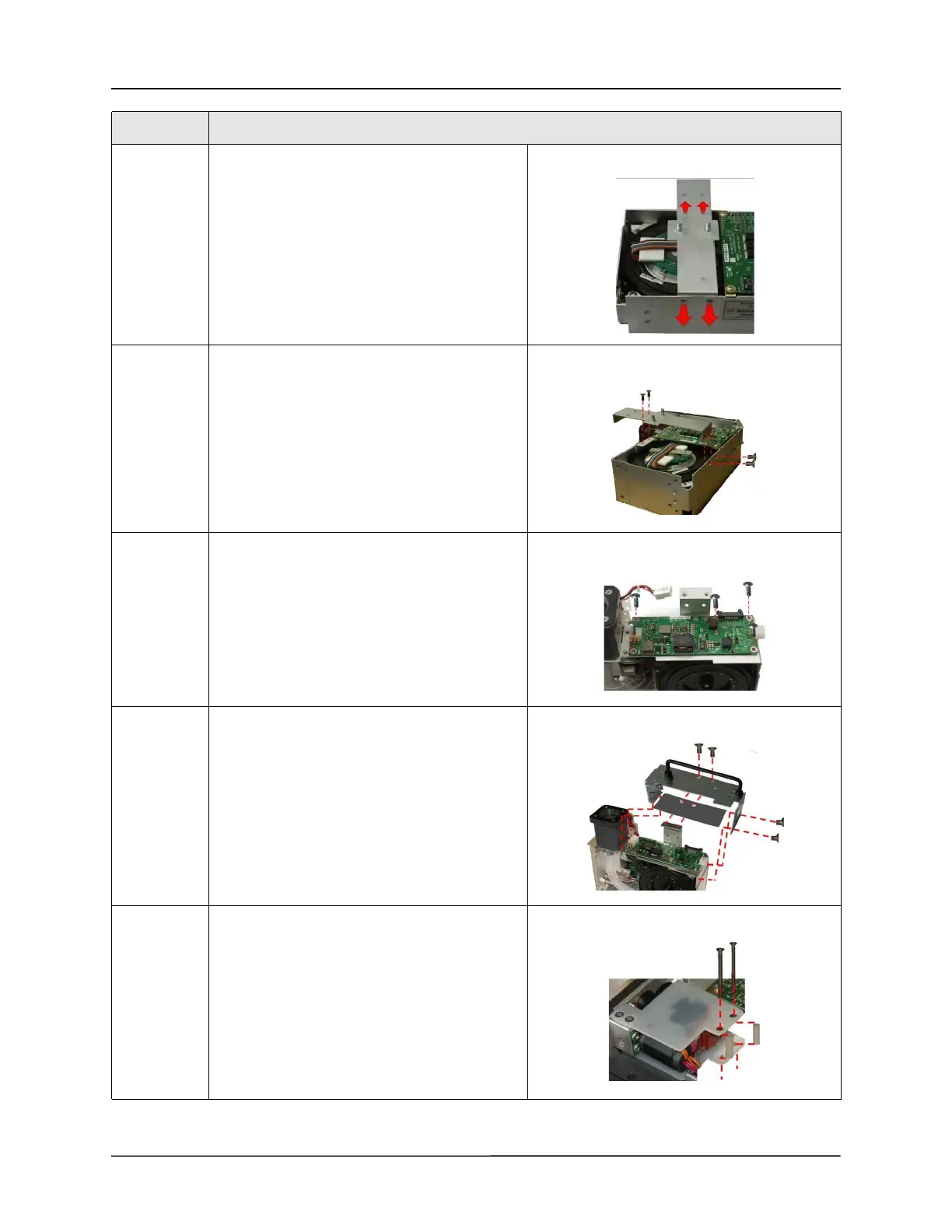

14 Remove the dovetail stabilizer bracket by
loosening and removing the two 6-32 x 1/4 and
the two 4-40 x 1/4 screws.
15 Install the dovetail stabilizer bracket onto the
new SPM assembly by tightening the two 6-32 x
1/4 and two 4-40 x 1/4 screws.
16 Secure the PIM board to the new SPM with the
five 4-40 x 1/4 screws. Caution: Do not over-
tighten the screws.
(Maximum torque - 3.5 in.- lb.)
17 Secure the chassis to the ventilator module using
the two 6-32 x 1/4 screws with SpO
2
insulator,
the two 8-32 x 1/4 and the
two 6-32 x 5/16 screws.
18 Secure the Power Input assembly to the Chassis
using the two spacers and two
4-40 x 1 1/4 screws.
Note: Do not over-tighten the screws.
(Maximum torque - 3.5 in.- lb.)
Step Action
