Chapter 12 Routing
LTE3302-M432 & LTE3312-M432 User’s Guide
108
The following table describes the labels in this screen.
12.3 Dynamic Routing Screen
Use this screen to enable and configure RIP on the LTE Device. Click Configuration > Network > Routing >
Dynamic Routing to open the Dynamic Routing screen.

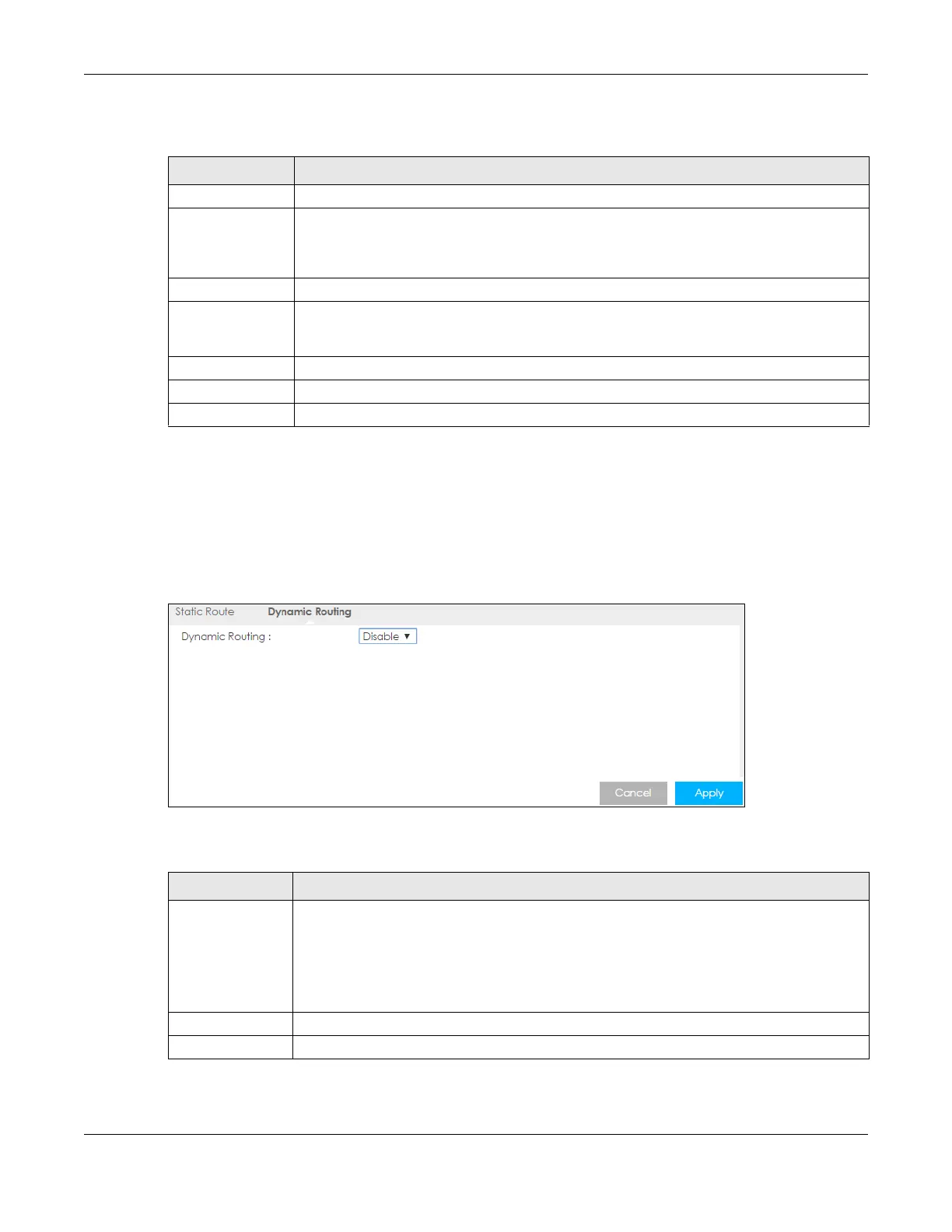

Figure 74 Configuration > Network > Routing > Dynamic Routing
The following table describes the labels in this screen.
Table 46 Configuration > Network > Routing > Static Route: Add/Edit
LABEL DESCRIPTION
Static Route Select to enable or disable this rule.
Destination IP
Address
This parameter specifies the IP network address of the final destination. Routing is always
based on network number. If you need to specify a route to a single host, use a subnet mask
of 255.255.255.255 in the subnet mask field to force the network number to be identical to the
host ID.
IP Subnet Mask Enter the IP subnet mask here.
Gateway IP
Address
Enter the IP address of the next-hop gateway. The gateway is a router or switch on the same
segment as your LTE Device's interface(s). The gateway helps forward packets to their
destinations.
Back Click Back to return to the previous screen without saving.
Cancel Click Cancel to set every field in this screen to its last-saved value.
Apply Click Apply to save your changes back to the LTE Device.
Table 47 Configuration > Network > Routing > Dynamic Routing
LABEL DESCRIPTION
Dynamic Routing RIP (Routing Information Protocol) allows a router to exchange routing information with other
routers. The RIP version controls the format and the broadcasting method of the RIP packets
that the LTE Device sends (it recognizes both formats when receiving). RIP version 1 is
universally supported but RIP version 2 carries more information. RIP version 1 is probably
adequate for most networks, unless you have an unusual network topology.
Select the RIP version from RIPv1 and RIPv2. Otherwise, select Disable to turn if off.
Cancel Click Cancel to begin configuring this screen afresh.
Apply Click Apply to save your changes back to the LTE Device.
