2N Helios IP User Manual

Mounting – Electrical Installation
2.3
30

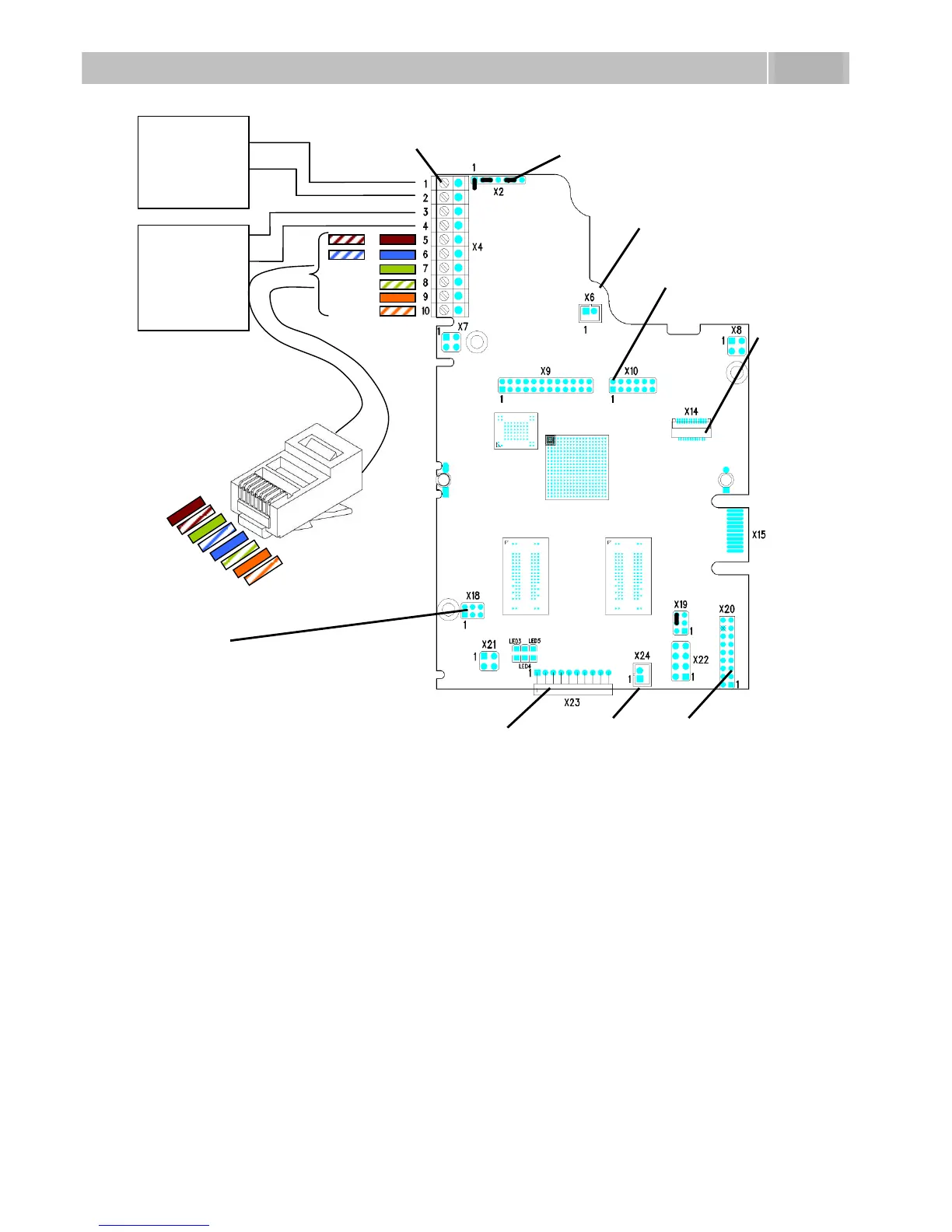

Figure 2.13 Description of 2N
®
Helios IP connectors, PCB version 535v5
Terminal Block X2 Connection
Terminal block X2 includes 10 terminals whose functions are distinguished by colour.
Terminals 5–10 are used for connecting 2N
®
Helios IP to the Ethernet. Terminals 3–4
are designed for connecting the electric lock and terminals 1–2 help connect an
external 12V / 2A DC power supply if no PoE power supply is available.
1. The terminal block is included in the package. To adjust an already installed
2N
®
Helios IP, disconnect it IP from the power supply. Then pull to remove
the terminal block from the printed circuit board.
2. Insert the wires under the respective terminals.
3. Tighten the terminals using a flat screwdriver.
4. Replace the terminal block to the printed circuit board.
+
El. lock
932070E
932080E
932090E
+
Power
adapter
91341481E
Terminal block
–
12V / 2A DC
Configuration connector
Speaker
connector
Microphone
connector
Additional lock
connector
Connector for
extending modules
Camera
connector
Display
connector
+
+
RFID Card reader
connector

2N Helios IP Specifications

General

Type	IP Intercom
Connectivity	Ethernet
Tamper Switch	Yes
Audio	Full duplex
Microphone	Built-in
Speaker	Built-in
Camera	Yes
Power Supply	PoE
Operating Temperature	+60°C
Ingress Protection	IP54
Protocols	SIP, RTSP, ONVIF
Audio Codec	G.711, G.722
Installation	Surface mount, flush mount (depending on model)
