2N Helios IP User Manual

Mounting – Electrical Installation
2.3
32
Configuration Connector Connection subsection. Set on the configuration connector
whether the electric lock will be powered from an external or internal power supply.
External Power Supply Connection
If the Ethernet network is not equipped with the PoE technology, you have two
alternative options how to supply power to 2N
®
Helios IP.
1. Using a PoE injector, Part No. 91378100. 2N
®
Helios IP is then powered
through an Ethernet cable as shown in Tab. 1 above.
2. Using a power adapter, Part No. 91341481E.
The external power supply from a power adapter can be connected to terminals 1 and
2.
Electric lock
2N
®
Helios IP
Marking
Marking
Terminal No.
91341481E
–
1
+
2

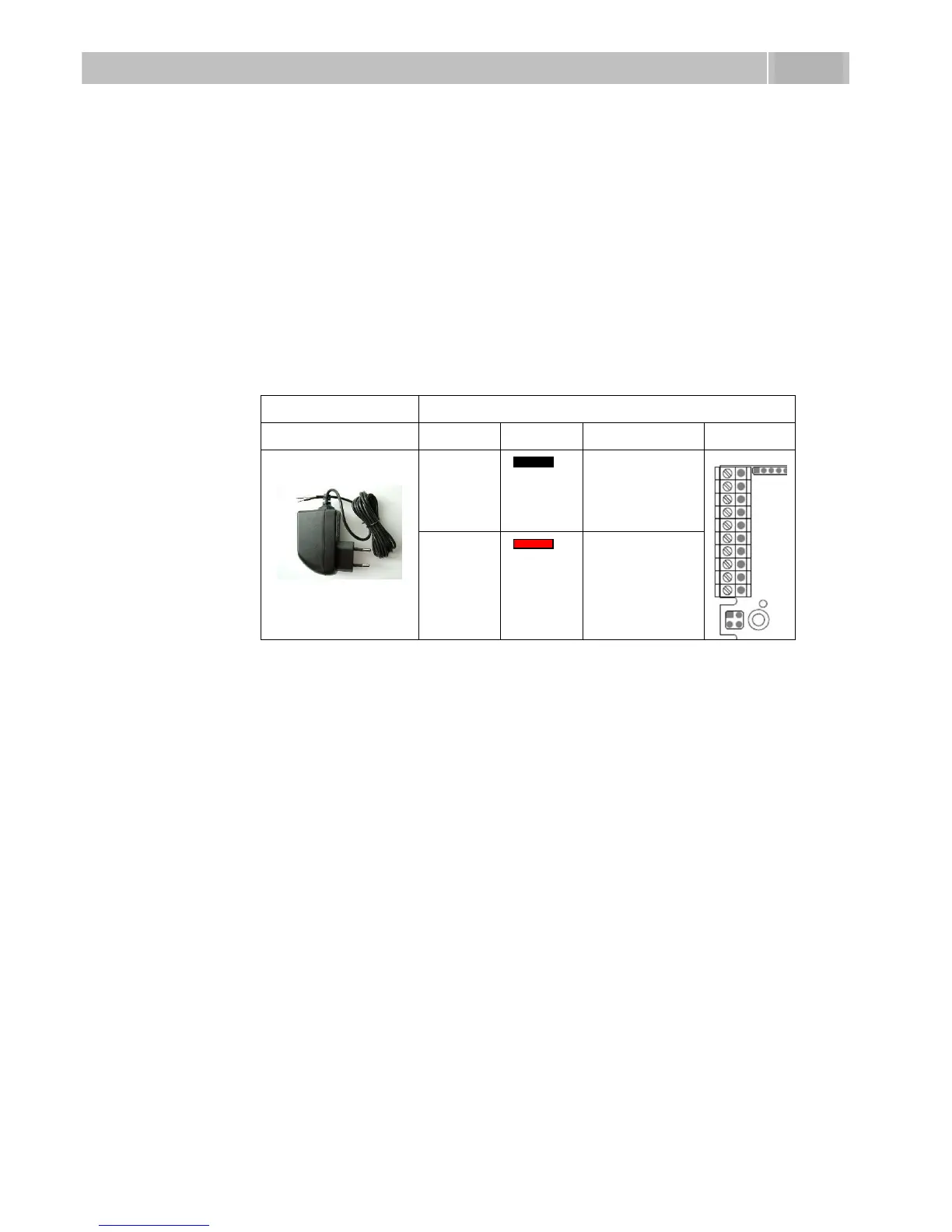

Table 2.3 Terminal Block Connection for Power Adapter
1
2

2N Helios IP Specifications

General

Type	IP Intercom
Connectivity	Ethernet
Tamper Switch	Yes
Audio	Full duplex
Microphone	Built-in
Speaker	Built-in
Camera	Yes
Power Supply	PoE
Operating Temperature	+60°C
Ingress Protection	IP54
Protocols	SIP, RTSP, ONVIF
Audio Codec	G.711, G.722
Installation	Surface mount, flush mount (depending on model)
