23.16 Shape time acc 1 Defines the shape of the acceleration ramp at the beginning of
the acceleration.
0.000 s: Linear ramp. Suitable for steady acceleration or
deceleration and for slow ramps.
0.001…1000.000 s: S-curve ramp. S-curve ramps are ideal
for lifting applications. The S-curve consists of symmetrical
curves at both ends of the ramp and a linear part in between.
Note: For safety reasons, shape times are not applied to
emergency stop ramps.
Acceleration:
Deceleration:
0.000 s
0.000 …1800.000 s Ramp shape at start of acceleration. 10 = 1 s
23.17 Shape time acc 2 Defines the shape of the acceleration ramp at the end of the
acceleration. See parameter 23.16 Shape time acc 1.
0.000 s
0.000 …1800.000 s Ramp shape at end of acceleration. 10 = 1 s
23.18 Shape time dec 1 Defines the shape of the deceleration ramp at the beginning
of the deceleration. See parameter 23.16 Shape time acc 1.
0.000 s
0.000 …1800.000 s Ramp shape at start of deceleration. 10 = 1 s
No. Name/Value Description Def/FbEq16

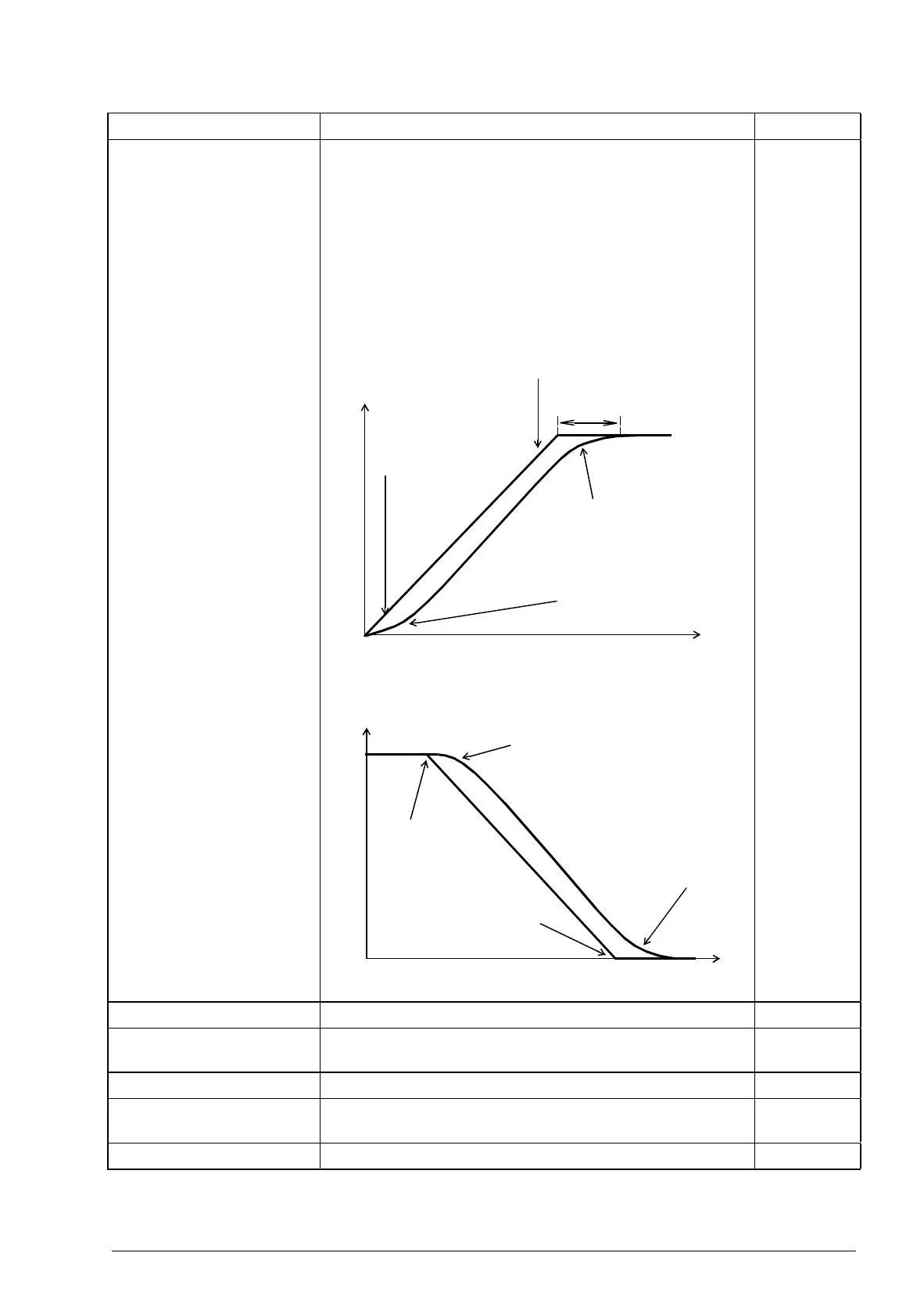

S-curve ramp:
23.17 > 0 s
Linear ramp:
23.16 = 0 s
Linear ramp:
23.17 = 0 s
S-curve ramp:
23.16 > 0 s
Speed
Time
Shape time
S-curve ramp:
23.18 > 0 s
Linear ramp:
23.18 = 0 s
S-curve ramp:
23.19 > 0 s
Speed
Time
Linear ramp:
23.19 = 0 s
