128 Safety functions
With ramp monitoring

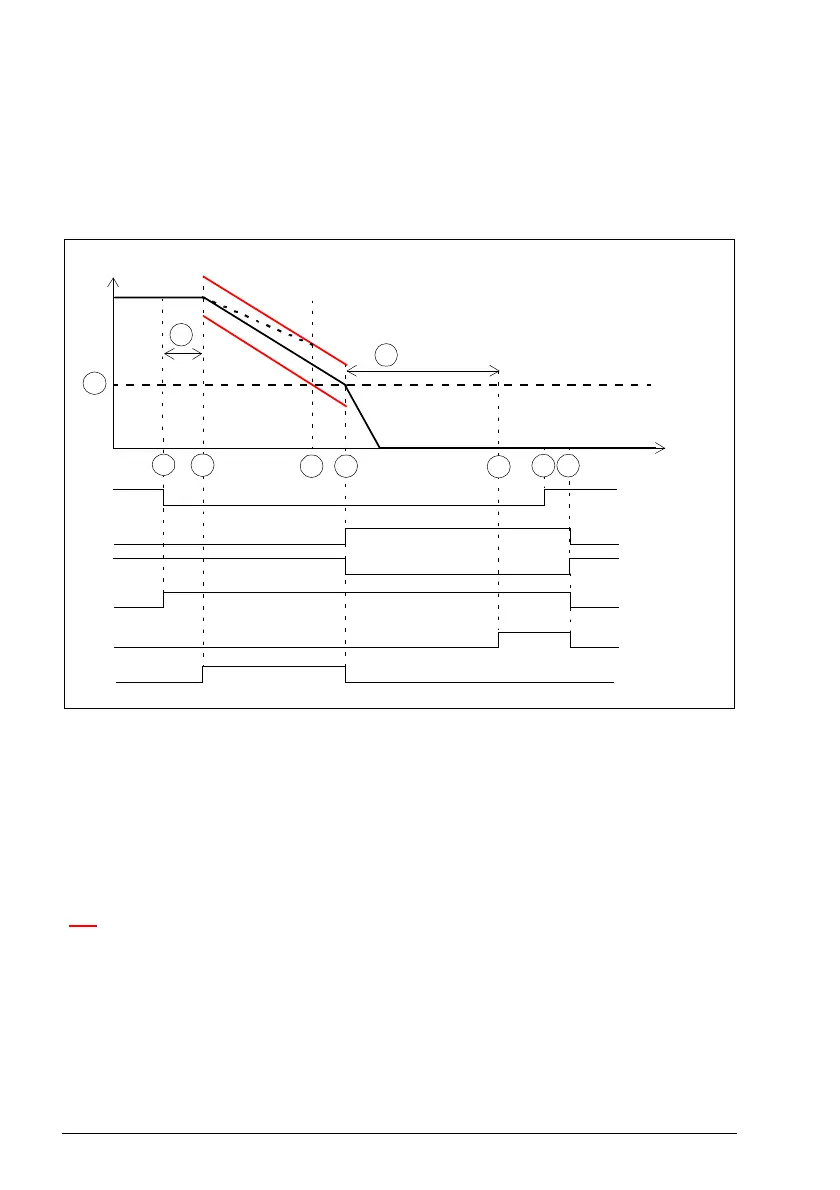

The operation of the SSE with speed limit activated SBC and ramp monitoring is
described in the time diagrams and tables below. For configuration, see section How
to configure SSE with speed limit activated SBC on page 356.
With a safe speed estimate
A SBC speed (parameter SBC.15): Speed limit below which the FSO activates the SBC
(brake) and drive STO functions while ramping. The safety function is completed, the
ramp monitoring is stopped and the SSE completed indication (parameter SSE.22) goes
on. The acknowledgment becomes allowed.
B SBC time to zero (parameter SBC.13): Time from the SBC activation to the moment
when the safety function is completed and the SSE completed indication (parameter
SSE.22) goes on. The acknowledgment becomes allowed. You must set this to the
estimated time in which the motor brakes to a stop from the maximum speed.
C Response time (depends on system configuration, see page 532)
Ramp monitoring limits
Drive STO state
& indication
SSE request
Motor speed
Time
SSE state &
indication
1
6
2
5
SBC output
3
A
C
SSE completed
indication
SAR0
monitoring
3b
- -> Safe torque off (STO)
B
SBC.13
4
