374 Configuration
Configuring SMS
To configure the SMS, set the FSO parameters listed below to appropriate values
using the Drive composer pro PC tool. See parameter groups SMS on page 430 and
Safety on page 402.
There are two different versions of the SMS function. Select the required version with
parameter 200.71 SMS activity and version.
For more information on the SMS function, see page 177.
How to configure SMS, version 1

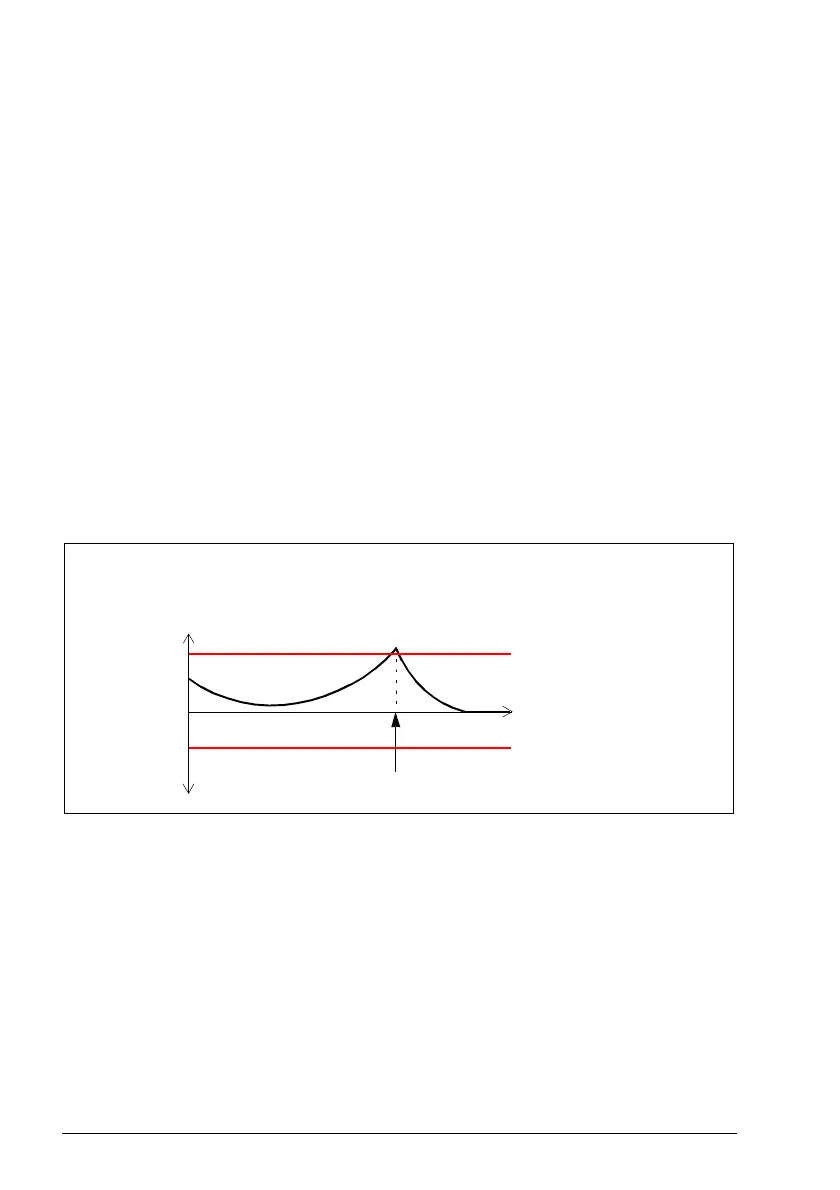

Example: The figure below shows an example of the SMS, version 1 set-up:
• SMS function version 1 activated (200.71 SMS activity and version = Version 1)
• positive limit 1800.0 rpm (SMS.14 SMS trip limit positive = 1800 rpm)
• negative limit -1200.0 rpm (SMS.13 SMS trip limit negative = -1200 rpm)
• SSE function configured as immediate STO
(SSE.13 SSE function = Immediate STO).
• See also section Configuring mute times on page 393.
SMS.14 = 1800 rpm
SMS.13 = -1200 rpm
200.71 = Version 1
Speed
Time
SSE activated
