312 Configuration
Configuring general settings
How to configure general settings
To configure the general settings, set the FSO parameters listed below to appropriate
values using the Drive composer pro PC tool. See parameter group FSOGEN on
page 180.

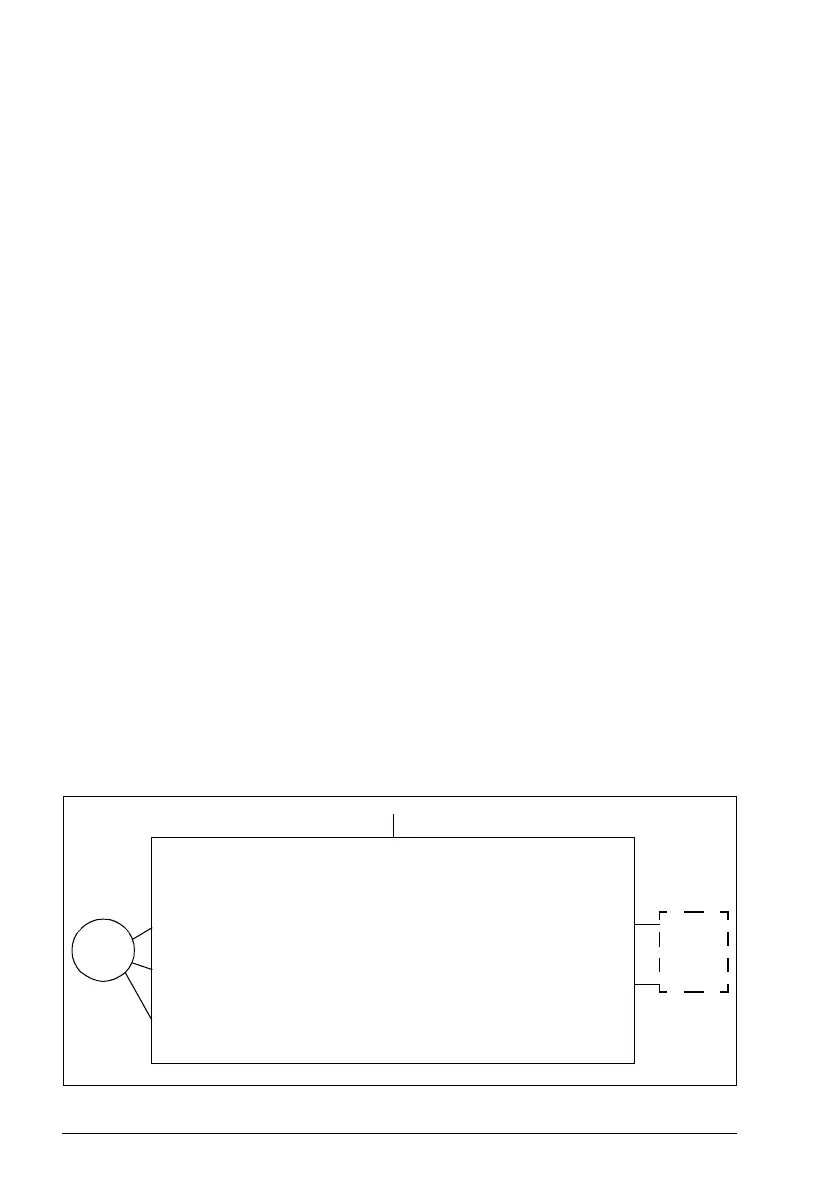

Example: The figure below shows an example I/O set-up:
• After power-up, the acknowledgement can only be performed manually
(FSOGEN.41 Power-up acknowledgement = Manual).
• Acknowledgement button is connected to input X114:4
(FSOGEN.42 Acknowledgement button input = DI X114:4).
• FSOGEN.22 Motor nominal frequency = 50.00 Hz. Use the same value with the
drive parameter 99.08. Motor nominal frequency, and the value on the motor type
designation label. Note: For a DCS880 drive, set this value to 25 Hz.
• FSOGEN.21 Motor nominal speed = 1360.0 rpm. Use the same value with the
drive parameter 99.09 Motor nominal speed, and the value on the motor type
designation label. Note: For a DCS880 drive, the equivalent parameter is 99.14
M1 nominal (base) speed.
• FSOGEN.51 Zero speed without encoder = 90.0 rpm
(when an encoder is used: FSOGEN.52 Zero speed with encoder). Stopping
functions are considered to be completed at this speed. Use suitable (low
enough) value according to application.
• External requests ending in the drive STO are reported to the drive as events
(FSOGEN.61 STO indication ext request = Event).
• Safety function limit hits are reported as faults
(FSOGEN.62 STO indication safety limit = Fault).
• No output connected for the completion of stop functions (STO, SSE, SS1)
(FSOGEN.11 Stop completed output = None).
FSOGEN.42
= DI X114:4
FSOGEN.22
= 50.00 Hz
FSOGEN.21
= 1360.0 rpm
FSOGEN.41
= Manual
FSOGEN.61
= Event
FSOGEN.62
= Fault
Drive
event
system
FSOGEN.51
= 90.0 rpm
M
FSOGEN.11
= None
