xx1000001297

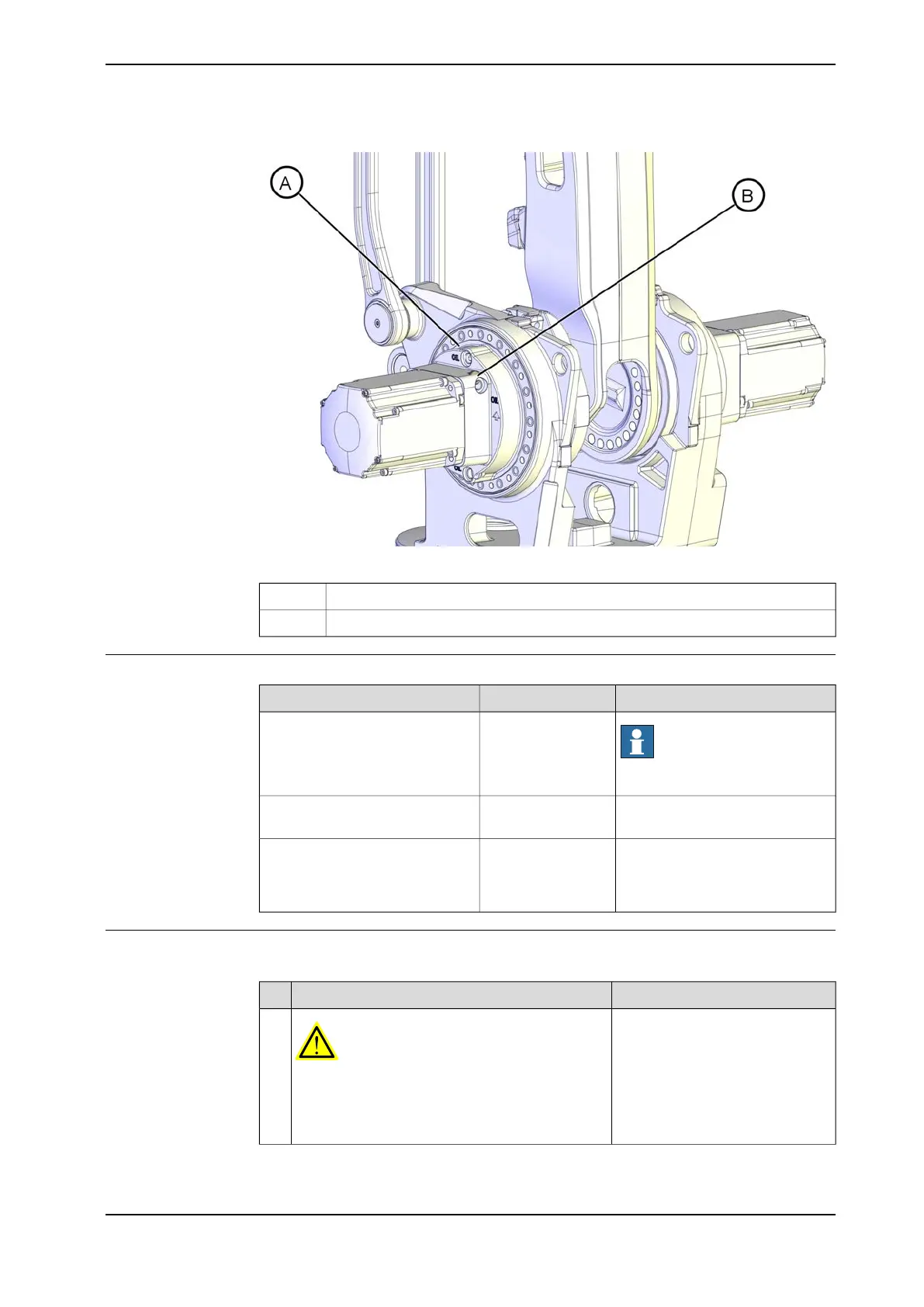

Gearbox, axis 3A
Oil plug, fillingB
Required equipment
NoteArt.no.Equipment etc.
Note
Do not mix with other oils!
See Type and
amount of oil in
gearboxes on
page 121.
Lubricating oil
Content is defined in section
Standard tools on page 383.
-Standard toolkit
These procedures include refer-
ences to the tools required.
Other tools and procedures may
be required. See references to
these procedures in the step-by-
step instructions below
Inspecting, oil level gearbox 2 - 3
Use this procedure to inspect the oil level in gearbox axes 2 - 3.
NoteAction
WARNING
Handling gearbox oil involves several safety risks.
Before proceeding, please read the safety inform-
ation in the section Safety risks during work with
gearbox lubricants (oil or grease) on page 36.
1
Continues on next page
Product manual - IRB 460 105
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
3 Maintenance
3.3.2 Inspecting, oil level gearbox axes 2 - 3
Continued
