ABB IRB 460 Series - Inspecting, Oil Level Gearbox Axis 6

3.3.3 Inspecting, oil level gearbox axis 6
Location of gearbox

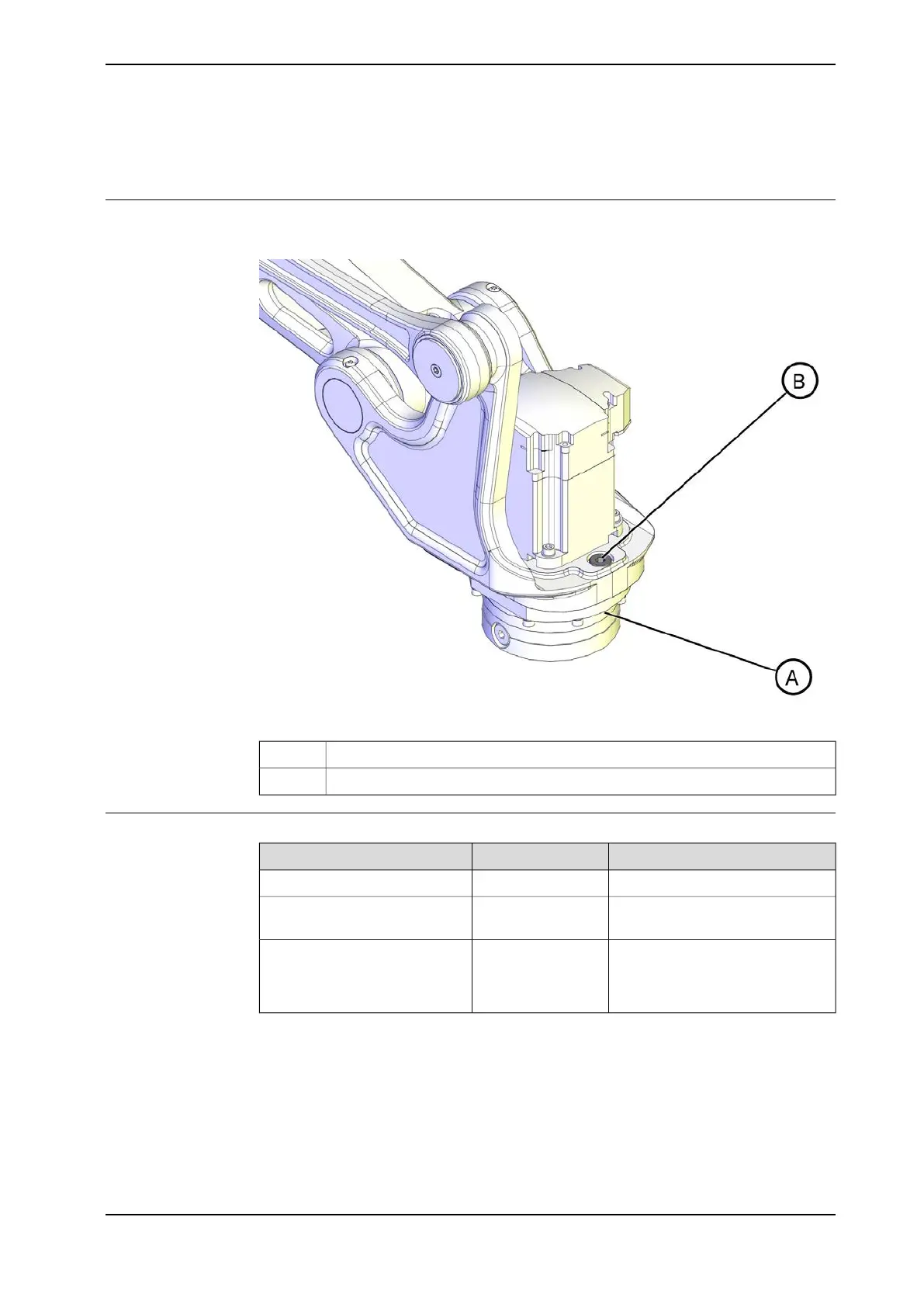

The axis 6 gearbox is located in the tilthouse unit as shown in this figure.
xx1000001301
Gearbox, axis 6A
Oil plug, fillingB
Required equipment
NoteArt. no.Equipment
Kyodo Yushi TMO 1503HAC032140-001Lubricating oil
Content is defined in section
Standard tools on page 383.
-Standard toolkit
These procedures include refer-
ences to the tools required.
Other tools and procedures may
be required. See references to
these procedures in the step-by-
step instructions below.
Continues on next page
Product manual - IRB 460 107
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
3 Maintenance
3.3.3 Inspecting, oil level gearbox axis 6
