4.6.4 Replacing gearbox axis 6
Location of gearbox axis 6

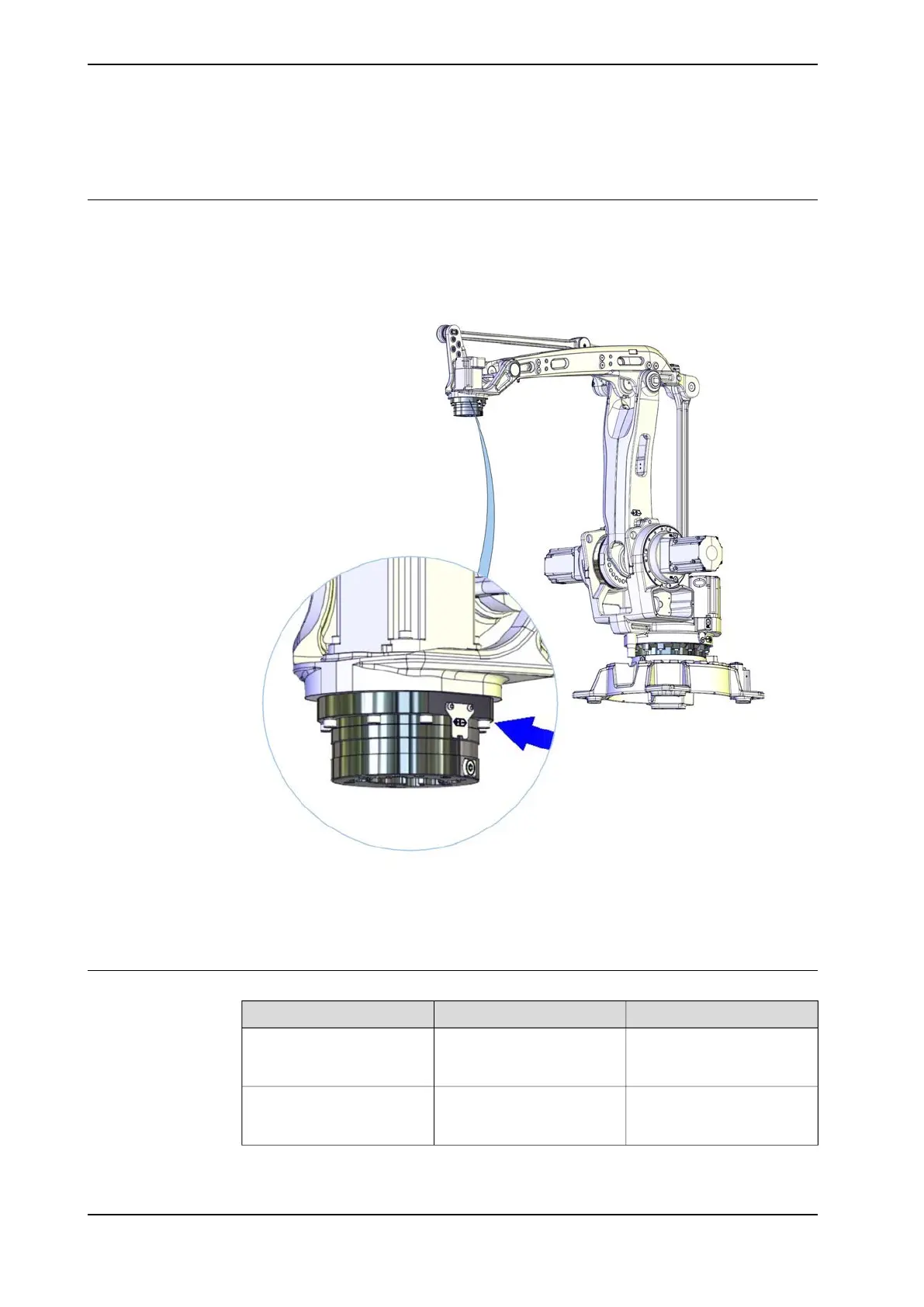

The axis 6 gearbox is located in the center of the wrist as shown in the figure.
xx1100000124
Required equipment
NoteArt. no.Equipment
Includes o-ringFor spare part no. see:
• Spare parts on
page 389.
Gearbox axis 6
For spare part no. see:
• Spare parts on
page 389.
Turning disk
Continues on next page
338 Product manual - IRB 460
3HAC039842-001 Revision: P
