5.2 Synchronization marks and axis movement directions
5.2.1 Synchronization marks and synchronization position for axes
Introduction
This section shows the position of the synchronization marks and the
synchronization position for each axis.

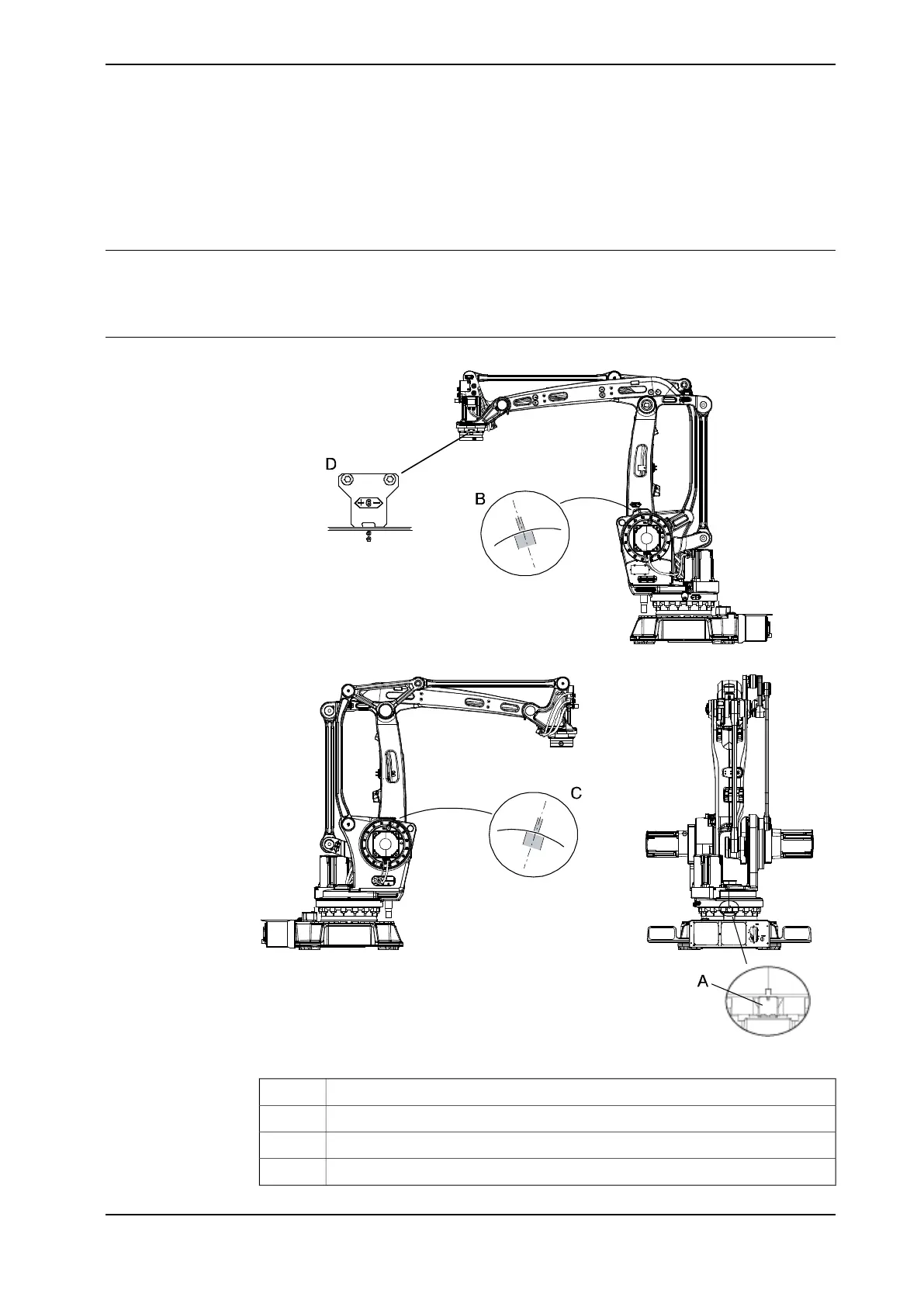

Synchronization marks, IRB 460
xx1000001433
Calibration plate, axis 1A
Calibration mark, axis 2B
Calibration mark, axis 3C
Calibration plate and marking, axis 6D
Product manual - IRB 460 351
3HAC039842-001 Revision: P
