ABB IRB 460 Series User Manual

3.3.9 Inspecting the signal lamp (option)

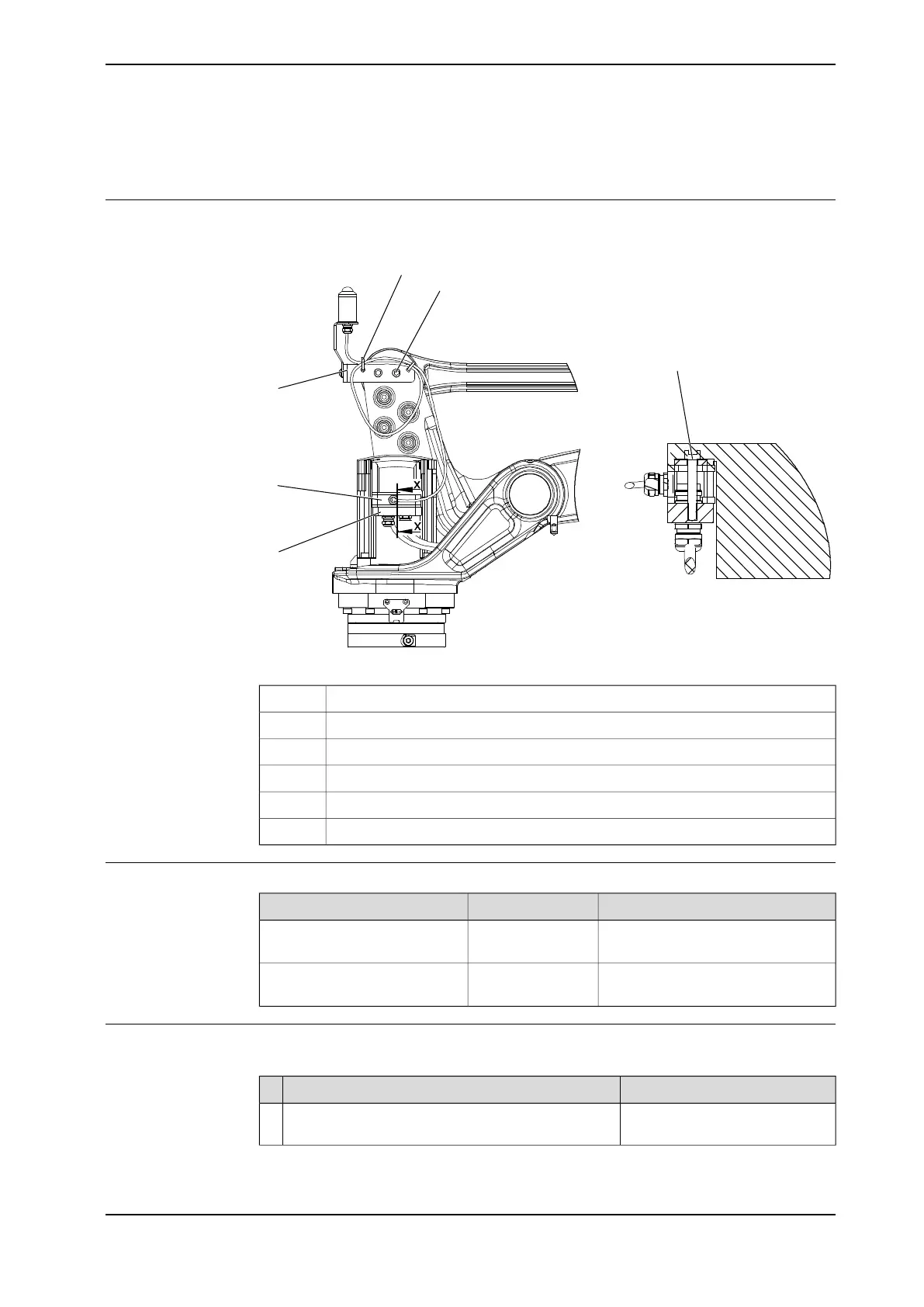

Location of signal lamp
The signal lamp is located as shown in this figure.
x - x
A
B
C
D
F
E
xx1000001288
Signal lamp bracketA
Attachment screws, M8x12 and bracket (2 pcs)B
Cable straps (2 pcs)C
Cable gland coverD
Motor adapter including gasketE
Attachment screw, M6x40 (1 pc)F
Required tools and equipment
NoteArticle numberEquipment
To be replaced if damage is detected.See Spare parts on
page 389.
Signal lamp kit
Content is defined in section Stand-
ard tools on page 383.
-Standard toolkit
Inspecting, signal lamp
Use this procedure to inspect the function of the signal lamp.
NoteAction
Inspect that signal lamp is lit when motors are put in
operation ("MOTORS ON").
1
Continues on next page
Product manual - IRB 460 119
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
3 Maintenance
3.3.9 Inspecting the signal lamp (option)
