2.3.9 Installation of signal lamp, upper arm (option)
General
As an option, a signal lamp can be installed on the robot. The lamp is activated
when the controller is in the MOTORS ON state.

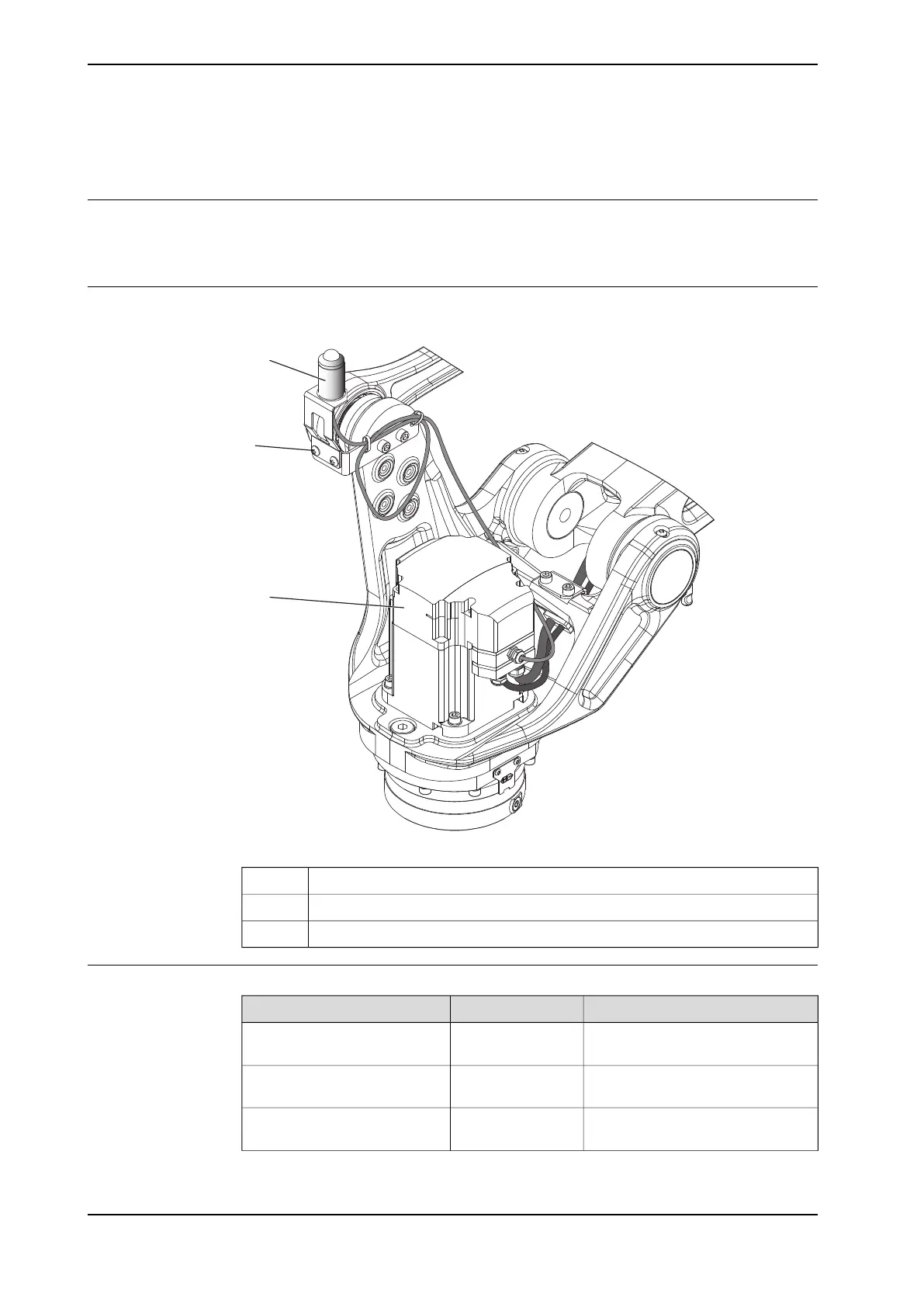

Location of signal lamp, upper arm
The signal lamp is located on the tilthouse unit, as shown in figure.
A
C
B
xx1000001287
Signal lampA
Attachment screw M6x8 (2 pcs)B
Motor coverC
Required equipment
NoteArticle numberEquipment, etc.
Complete kit with signal lamp,
cables, adapter, gasket, screws etc.
Spare parts on
page 389.
Signal lamp kit
Fitted between motor and cable
gland, replace if damaged.
3HAC033206-001Gasket
Content is defined in section Stand-
ard tools on page 383.
Standard toolkit
Continues on next page
