NoteArticle numberEquipment, etc.
Other tools and procedures may
be required. See references to
these procedures in the step-by-
step instructions below.
Signal lamp kit

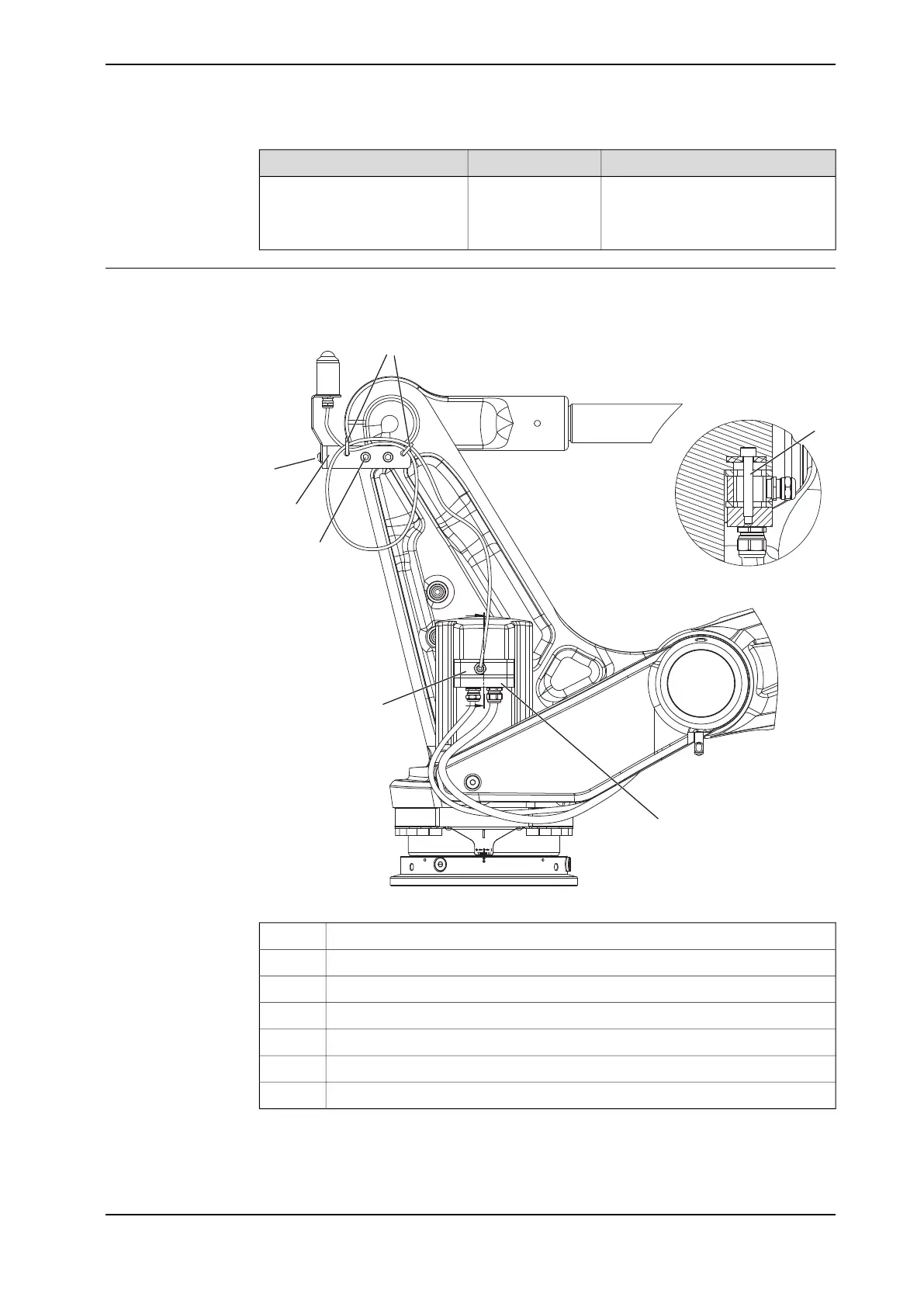

Figure shows signal lamp kit on IRB 760.
x
x
x - x
A
B
C
D
G
F
E
xx1000001064
Signal lamp bracketA
Attachment screws for the bracket, M8x12 (2 pcs)B
Attachment screws for the signal lamp (2 pcs)C
Cable straps (2 pcs)D
Cable gland coverE
Motor adapter including gasketF
Attachment screw, M6x40 (1 pc)G
Continues on next page
Product manual - IRB 460 81
3HAC039842-001 Revision: P
