3.4.3 Changing oil, gearbox axes 2 and 3
Location of oil plugs
Gearboxes, axes 2 and 3, are located in lower arm rotational center, underneath
motor attachment.

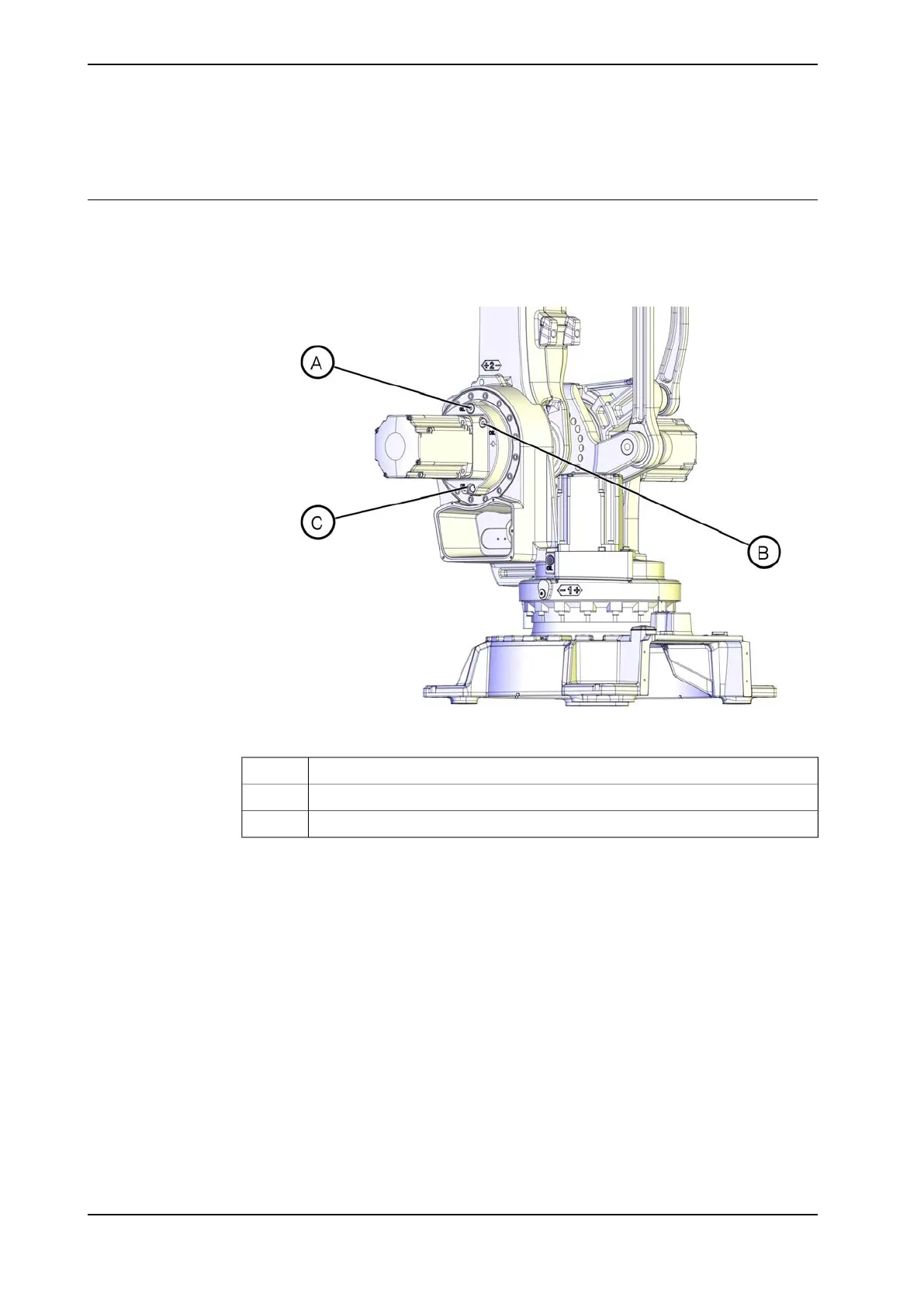

The figure shows the position of gearbox, axis 2.
xx1000001348
Ventilation hole plug, gearbox axis 2A
Oil plug, fillingB
Oil plug, drainingC
Continues on next page
126 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
3 Maintenance
3.4.3 Changing oil, gearbox axes 2 and 3
