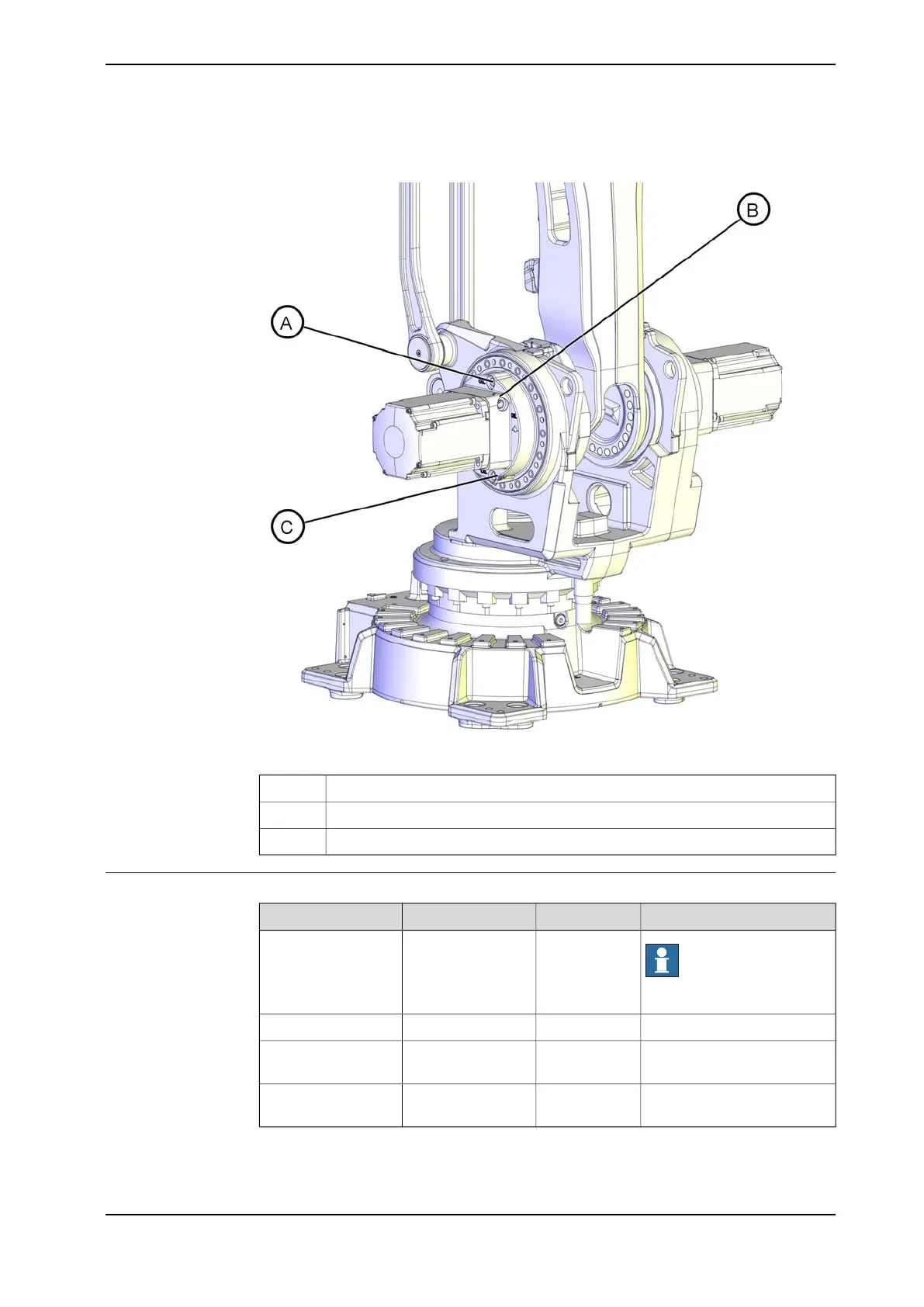

The figure shows position of gearbox, axis 3.
xx1000001351
Ventilation hole plug, gearbox axis 3A
Oil plug, fillingB
Oil plug, drainingC
Required equipment
NoteAmountArt. no.Equipment etc.
Note
Do not mix with other oils!
3,200 ml in
each gearbox
See Type and
amount of oil in
gearboxes on
page 121.
Lubricating oil
Capacity: 4,000 mlOil collecting vessel
Content is defined in section
Special tools on page 384.
3HAC021745-001Oil exchange equip-
ment
Content is defined in section
Standard tools on page 383.
-Standard toolkit
Continues on next page
Product manual - IRB 460 127
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
3 Maintenance
3.4.3 Changing oil, gearbox axes 2 and 3
Continued
