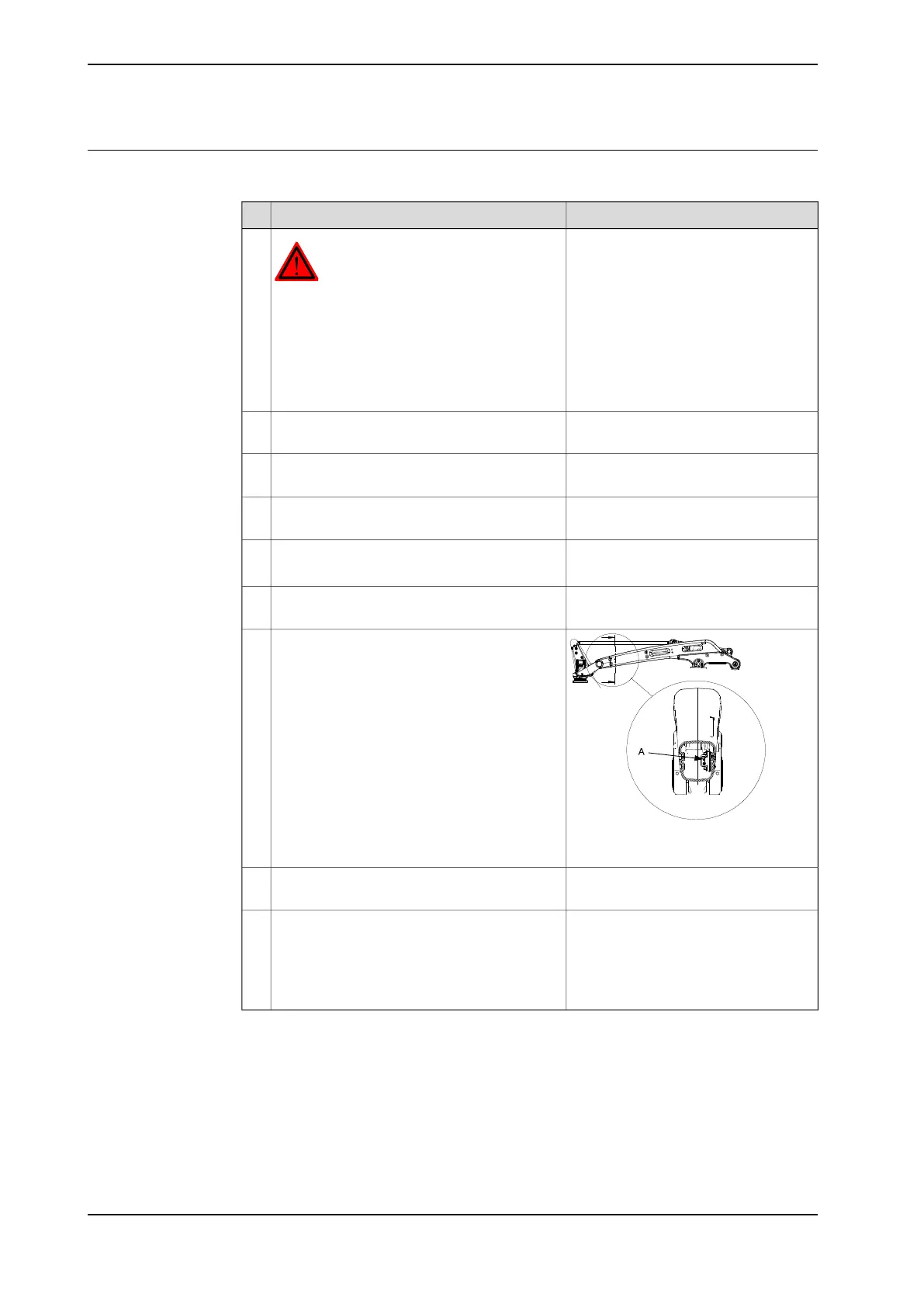

Inspecting cable harness, axes 1-6
Use this procedure to inspect cable harness of axes 1-6.
NoteAction
DANGER
Turn off all:
• electric power supply
• hydraulic pressure supply
• air pressure supply
to the robot, before entering the robot working
area.
1
Make an overall inspection of the cable har-
ness in order to detect wear and damage.
2
Shown in figure Location of cable har-
ness, axes 1-6 on page 109
Check the connectors at the base.3
Shown in figure Location of cable har-
ness, axes 1-6 on page 109.
Check the motor cables.4
Shown in figure Location of cable har-
ness, axes 1-6 on page 109.
Check the cable guide axis 2.
Replace if damaged.
5
Shown in figure Location of cable har-
ness, axes 1-6 on page 109
Check the metal clamps on the lower arm.6
xx0500002498
Check the metal clamps holding the cable
harness inside the upper arm, as shown in
figure to the right.
7
A: Metal clamp inside upper arm
Shown in figure Location of cable har-
ness, axes 1-6 on page 109.
Check the metal clamp holding the motor cable
on axis 6.
8
Detailed in section:Replace the cable harness if wear or damage
is detected!
9
Replacing cable harness, lower end
(axes 1-3) on page 147.
Replacing the cable harness, upper end
(incl. axis 6) on page 157.
110 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
3 Maintenance
3.3.4 Inspecting, cable harness
Continued
