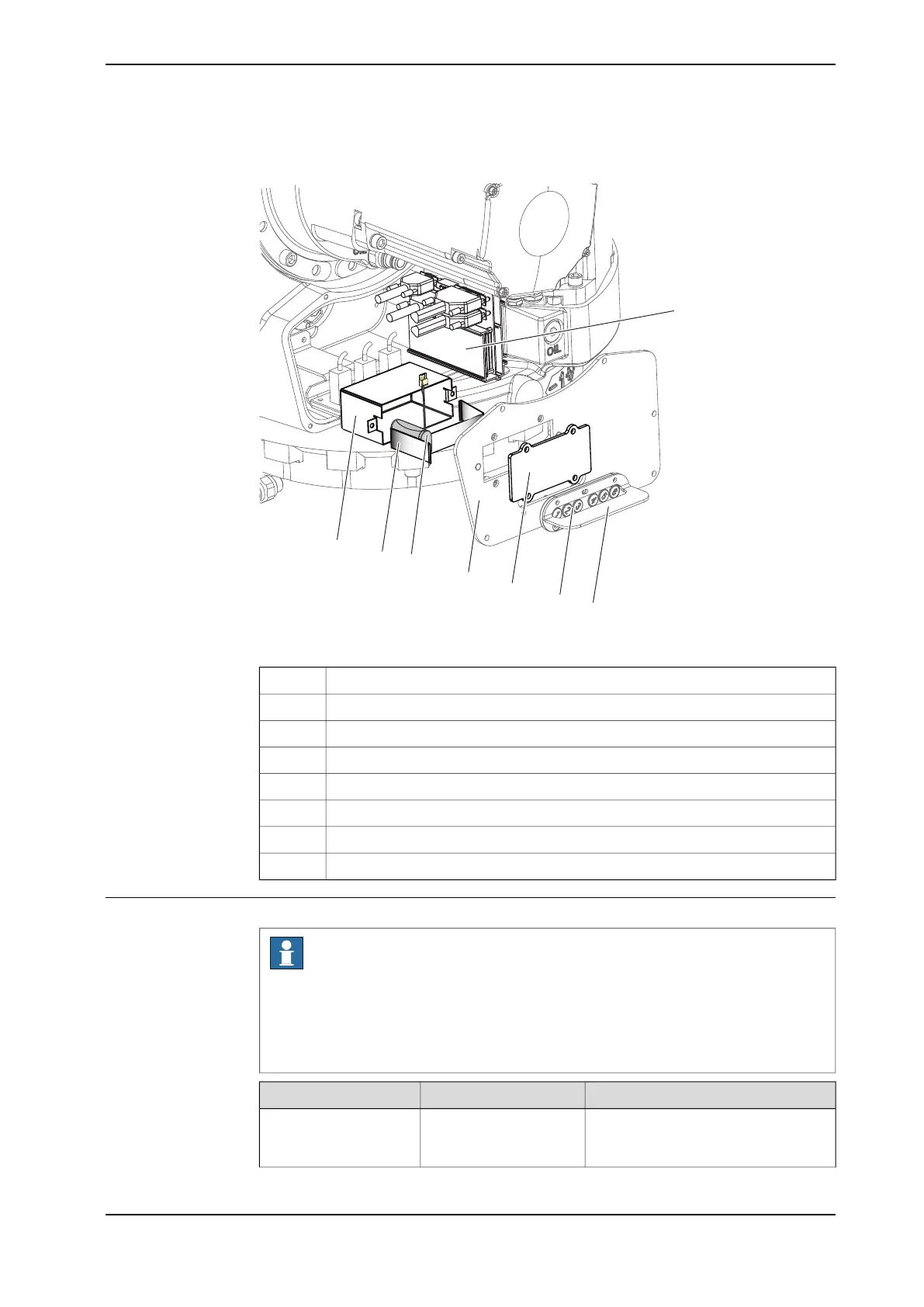

SMB board RMU 101 (with 3-pole contact)
xx1300001115
Battery boxA
Battery holderB
Battery pack, RMU lithium (3-pole battery contact)C
SMB coverD
Battery coverE
BU button guard plateF
Push button guardG
Serial measurement board, RMU 101H
Required equipment
Note
There are different variants of SMB units and batteries. The variant with the
3-pole battery contact has longer lifetime for the battery.
It is important that the SMB unit uses the correct battery. Make sure to order the
correct spare parts. Do not replace the battery contact!
NoteArticle numberEquipment, etc.
For spare part number,
see: Spare parts on
page 389.
SMB unit
Continues on next page
