NoteArt.no.Equipment, etc.
VK 65x8 (2 pcs)Spare parts on page 389VK cover
D=70/85 T=8 (2 pcs)3HAB3701-19Sealing ring
3HAA2103-13Taper roller bearing
Used for mounting outer
bearing races.
3HAC040028-001Press tool, premounting outer
race bearing
Used for assembly and disas-
sembly.
3HAC040029-001Press tool, replacing shaft
Used for disassembly of
shaft.
3HAC040035-001Auxiliary shaft
3HAC040025-001KM7 socket
3HAB3537-1Grease
Dinitrol 490Rust preventive
Loctite 2433HAB7116-1Locking liquid
Content is defined in section
Standard tools on page 383.
-Standard toolkit
These procedures include
references to the tools re-
quired.
Other tools and procedures
may be required. See refer-
ences to these procedures in
the step-by-step instructions
below.

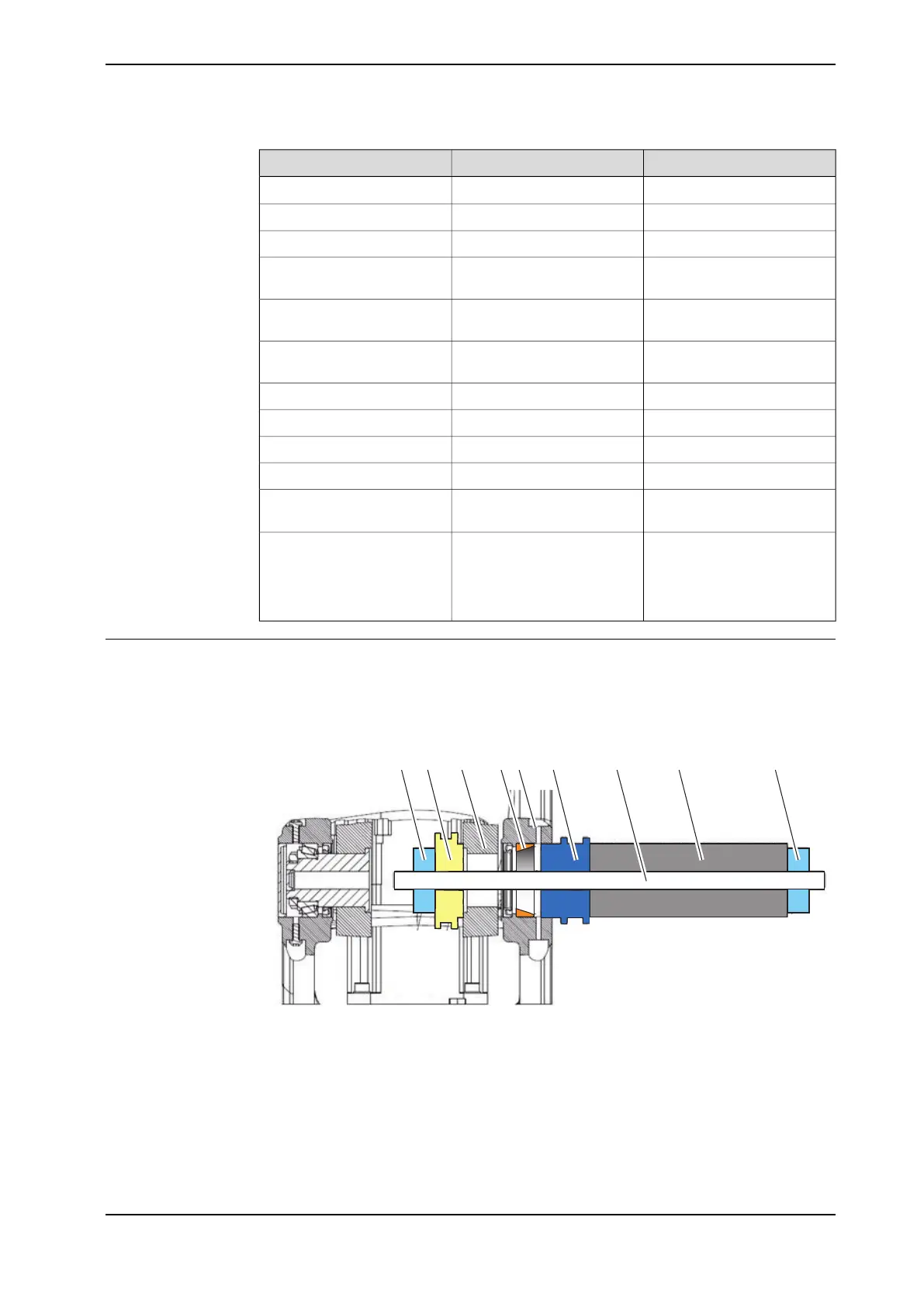

Press tool pre-mounting outer race bearings
The press tool used for pre-mounting the outer bearing races in the tilthouse,
consists of the parts shown in the figure. For art. no. see Required equipment on
page 192.
xx1100000250
A Thread washer (2 pcs)
B Support washer (3HAC040029-001)
C Upper arm
D Outer race bearing
Continues on next page
Product manual - IRB 460 193
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.2 Replacing the tilthouse unit
Continued
