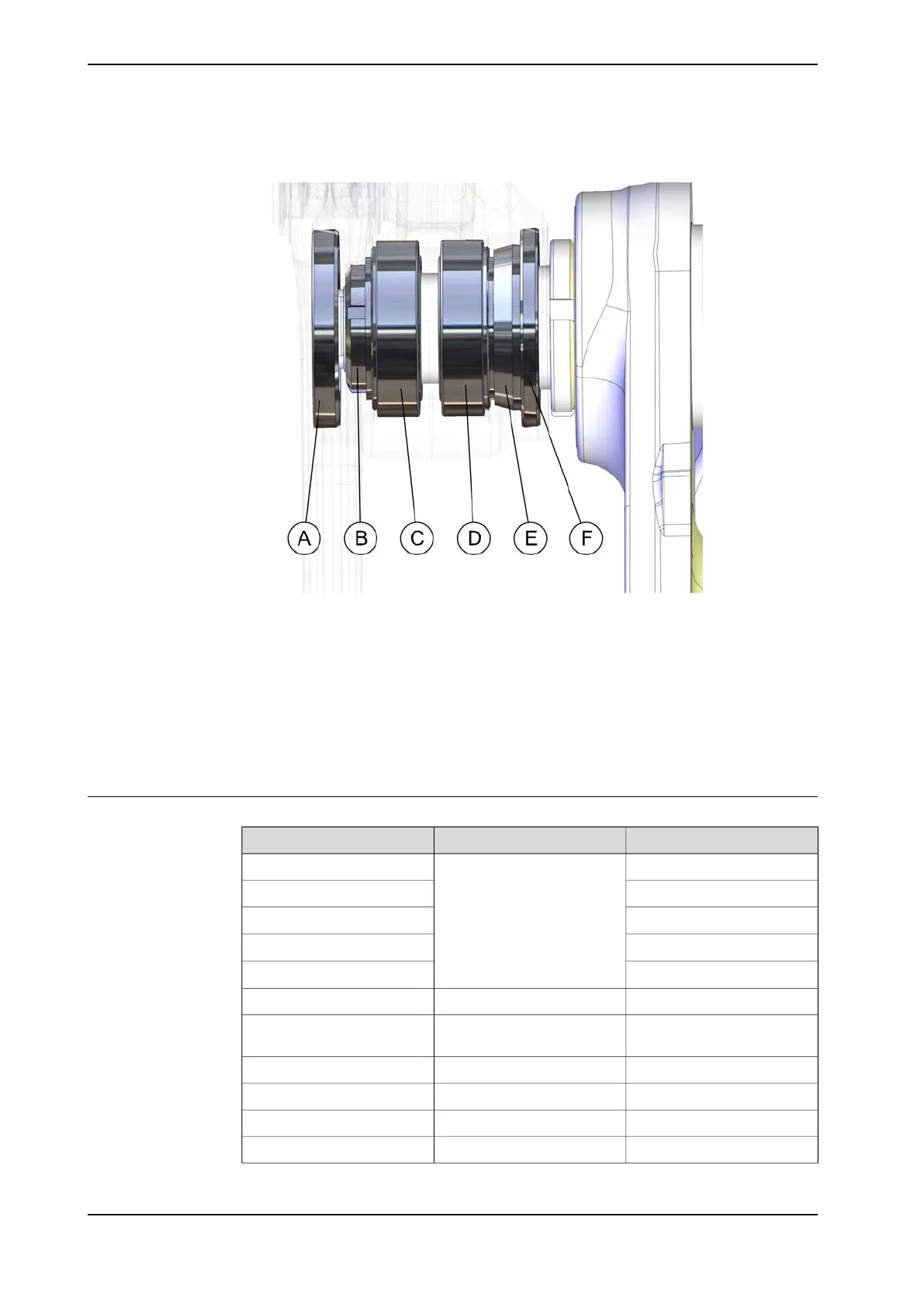

Design with support ring
xx1300000007
A VK cover
B Lock nut
C Bearing
D Bearing
E Support ring, including o-ring
F Radial sealing
Required equipment
NoteArt. no.Equipment, etc.
For spare part number, see:
• Spare parts on page 389
Link
Replace if damaged.Bearing
Replace if damaged.Radial sealing
i
Replace if damaged.Support ring
i
Replace if damaged.O-ring
i
Used for bearings.3HAC040022-002Auxiliary shaft
Used to press the outer races
of bearings in link.
3HAC040030-001Press tool link (bearing outer
races)
3HAC040031-001Press tool support
Used to fit the link.3HAC040022-001Press tool, link
3HAC040024-001Socket KM 8
Used to remove the link.-Bearing puller
Continues on next page
242 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.6 Replacing the linkage - link
Continued
