NoteAction
Art. no. is specified in Required
equipment on page 294.

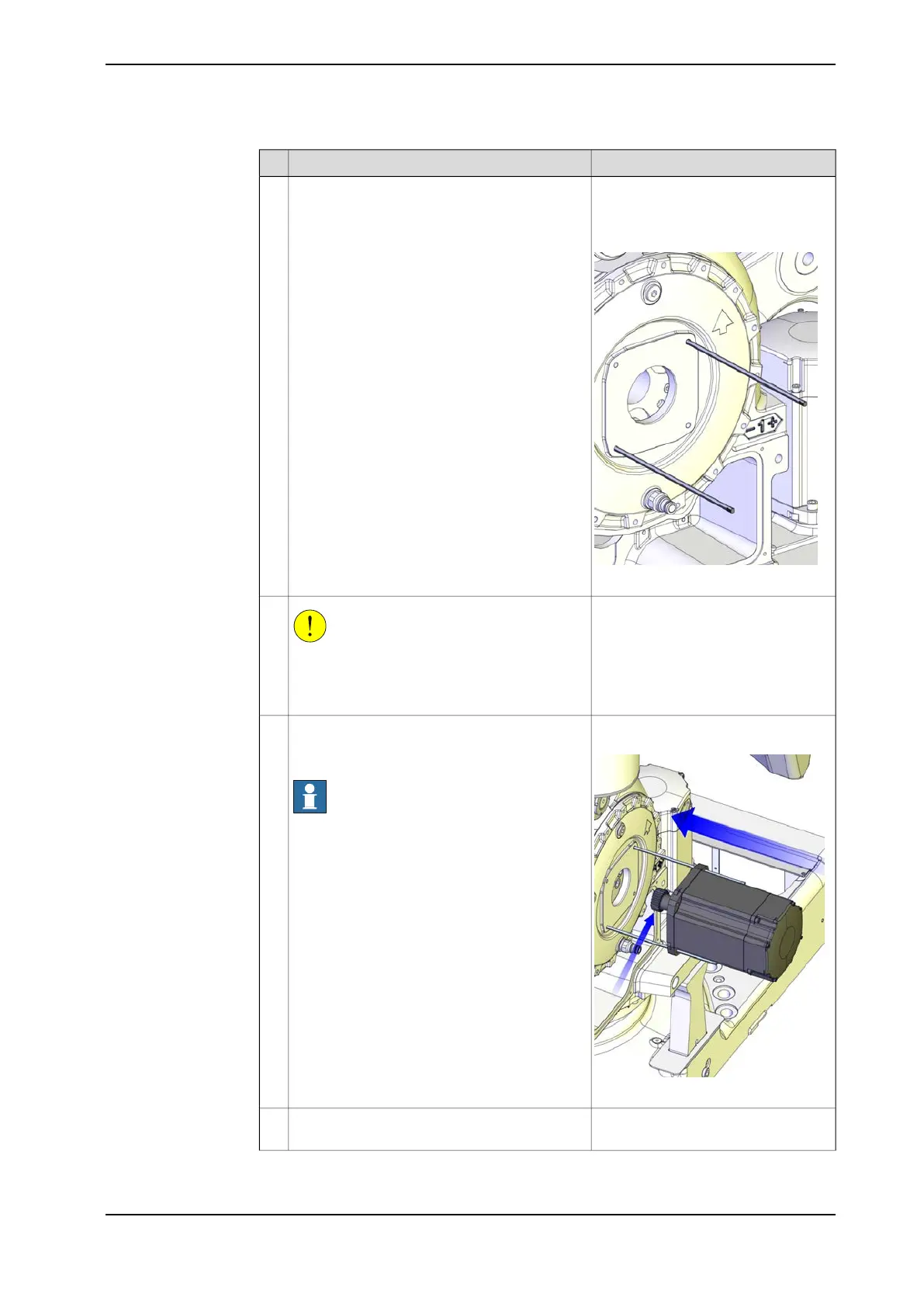

Fit the two guide pins in the two lower motor
attachment holes.
4
The figure shows IRB 760 but the
principle is the same.
xx1000001131
CAUTION
The motor weighs 29 kg.
All lifting accessories used must be sized ac-
cordingly!
5
The figure shows IRB 760 but the
principle is the same.
xx1000001185
Lift the motor and guide it on to the guide pins,
as close to the correct position as possible
without pushing the motor pinion into the gear.
Note
Make sure the motor is turned the right way,
that is connections for the cables facing down-
wards.
6
Remove the lifting tool and allow the motor to
rest on the guide pins.
7
Continues on next page
Product manual - IRB 460 301
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.5.2 Replacing motors, axes 2 and 3
Continued
