Periodic check of the calibration tool
If including the calibration tool in a local periodic check system, the following
measures should be checked.
• Outer diameter within Ø12g4 mm, Ø8g4 mm or Ø6g5 mm (depending on
calibration tool size).
• Straightness within 0.005 mm.

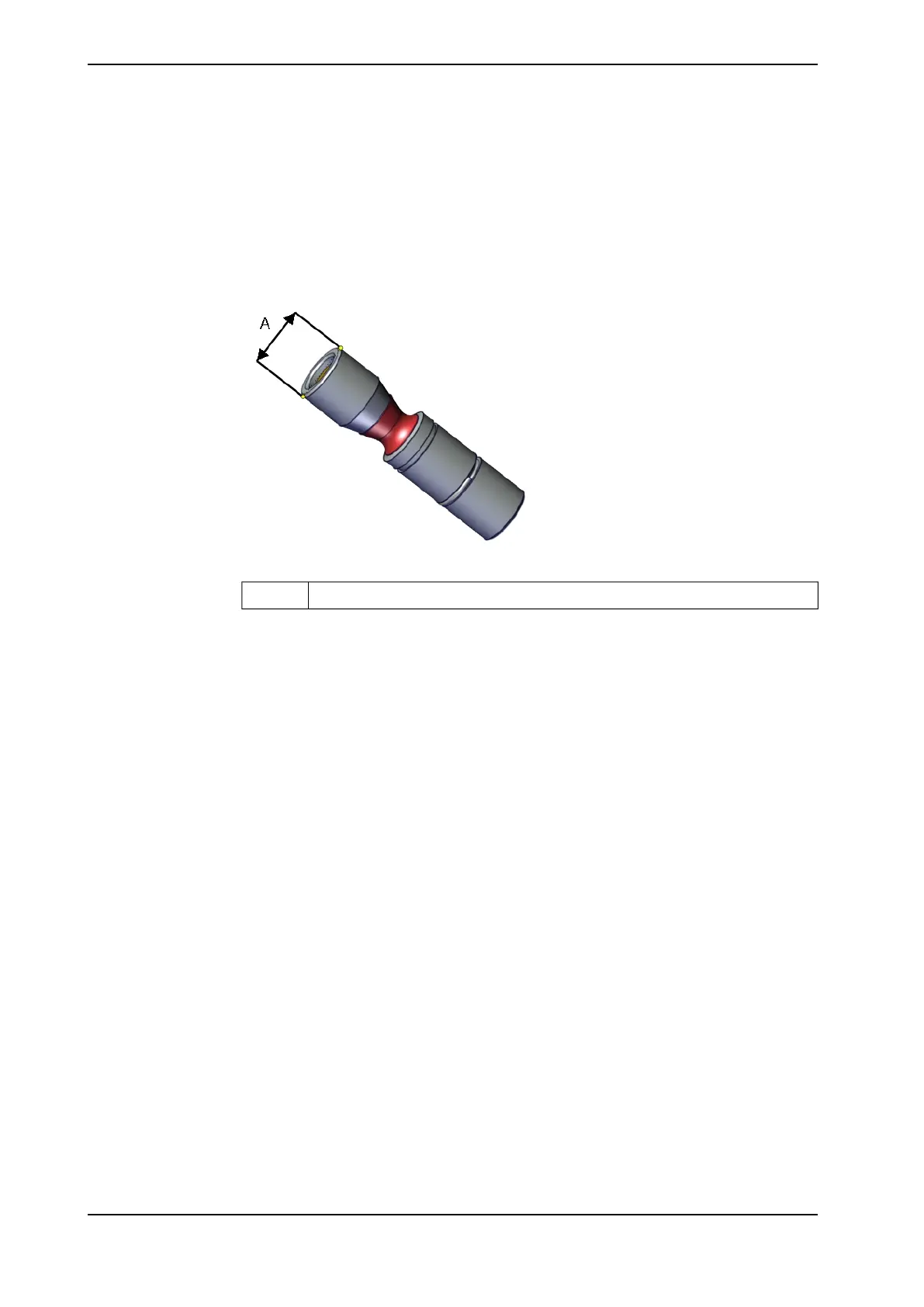

xx1500000951
Outer diameterA
