NoteAction
DANGER
Turn off all:
• electric power supply
• hydraulic pressure supply
• air pressure supply
to the robot, before entering the robot working
area.
3
Attachment points on the robot

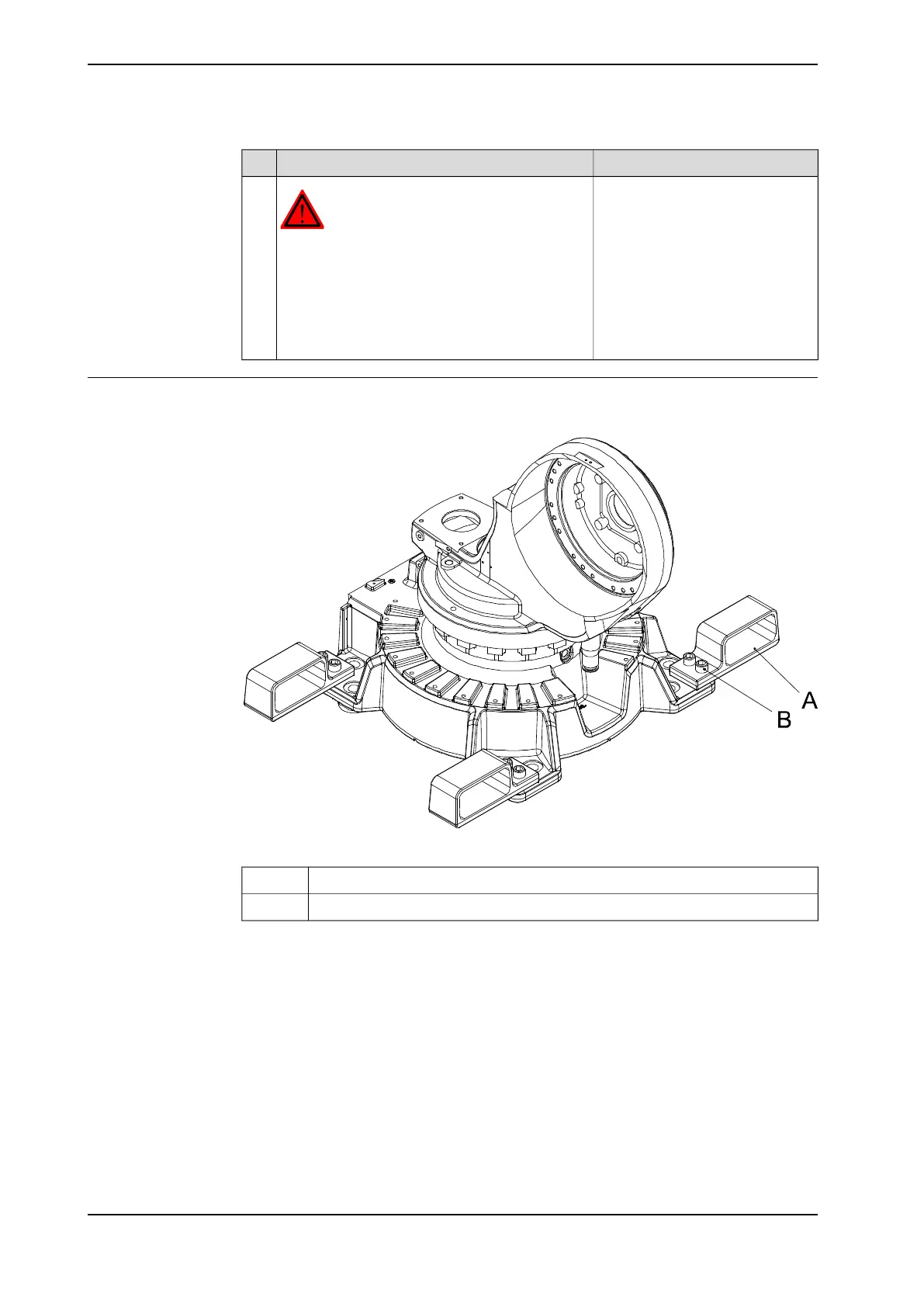

The fork lift accessory is fitted on the robot as shown in the figure.
xx0600002910
Fork lift pocketA
Attachment screw M20x60 quality 8.8 (2 pcs x4)B
Continues on next page
56 Product manual - IRB 460
3HAC039842-001 Revision: P
