ABB IRB 460 Series - Page 59

NoteAction
IRB 6620

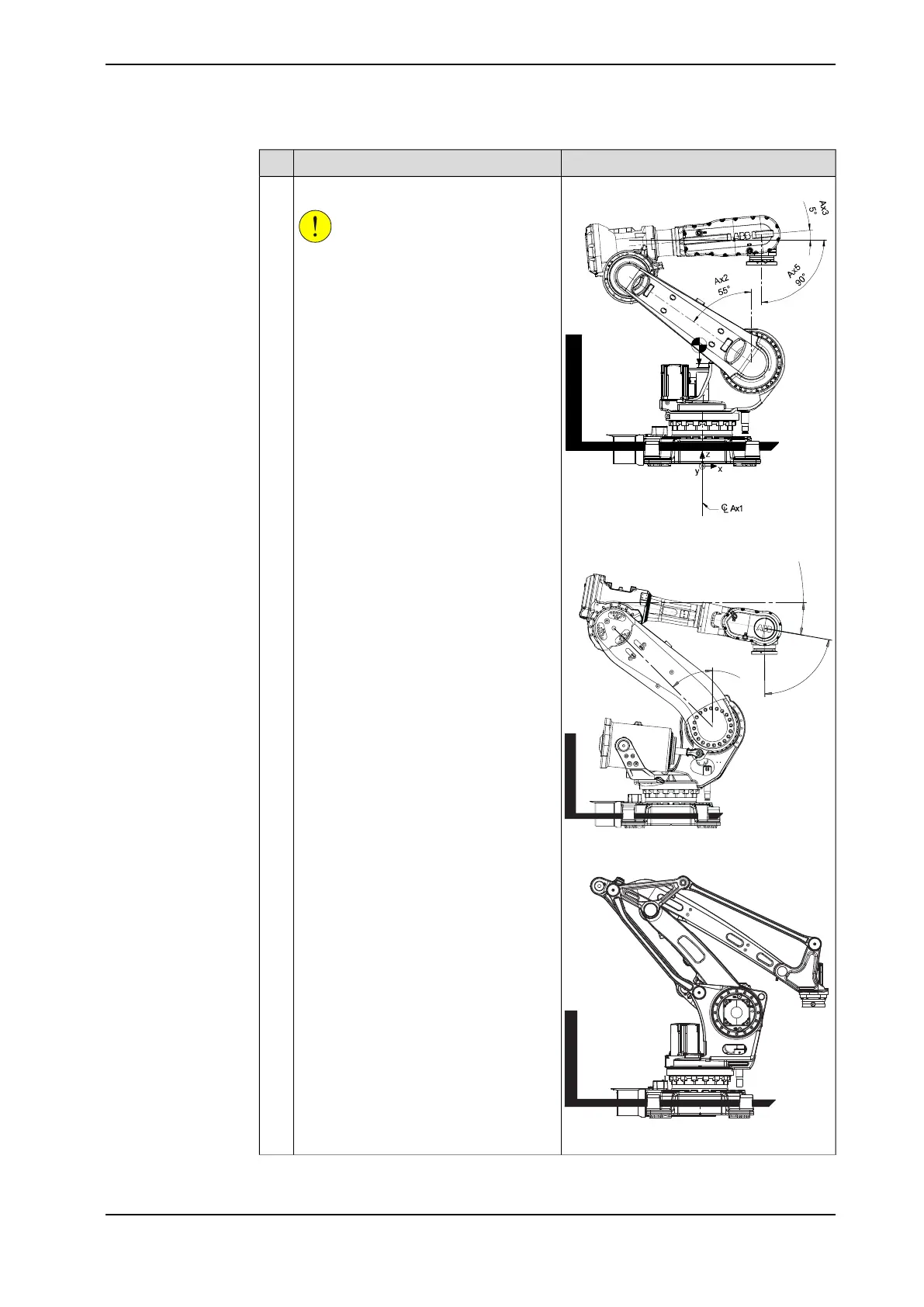

xx0600002911
Insert fork lift forks into the pockets.
CAUTION
Lifting the robot with fork lift shall only be
done with all four fork lift pockets fitted!
If lifting with fewer than four fork lift
pockets fitted, there is a risk of accidents!
4
IRB 6640
A
x2
Ax3
A
x5
45°
1
0°
80°
xx0600003401
IRB 460
xx1000001159
