Attachment points

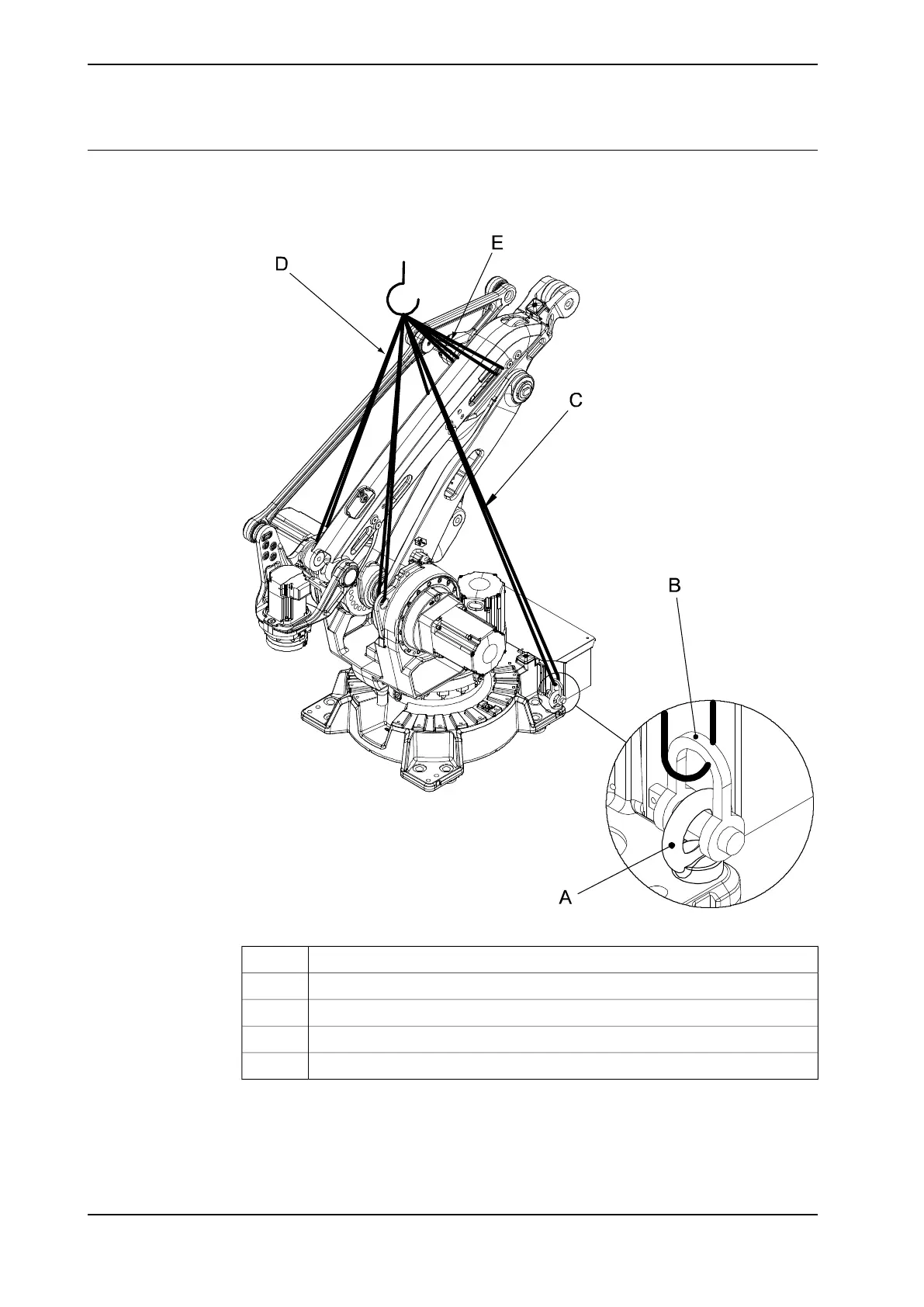

This figure shows how to attach the roundslings to the robot.
The illustration is similar with the label attached to the robot’s lower arm.
xx1000001156
Lifting eye bolts M20 (2 pcs)A
Shackle (2 pcs). Lifting capacity: 2,000 kg.B
Roundsling, 2 m (2 pcs). Lifting capacity: 2,000 kg.C
Roundsling, 2.5 m (2 pcs). Lifting capacity: 2,000 kg. Wrap once!D
Roundsling, 2 m, secures against rotation. Lifting capacity: 2,000 kg. Wrap twice!E
62 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
2 Installation and commissioning
2.3.2 Lifting robot with roundslings
Continued
