NoteAction
Hex socket head cap screw: M10x30 12.9
Gleitmo 603+Geomet 500 (2 pcs)

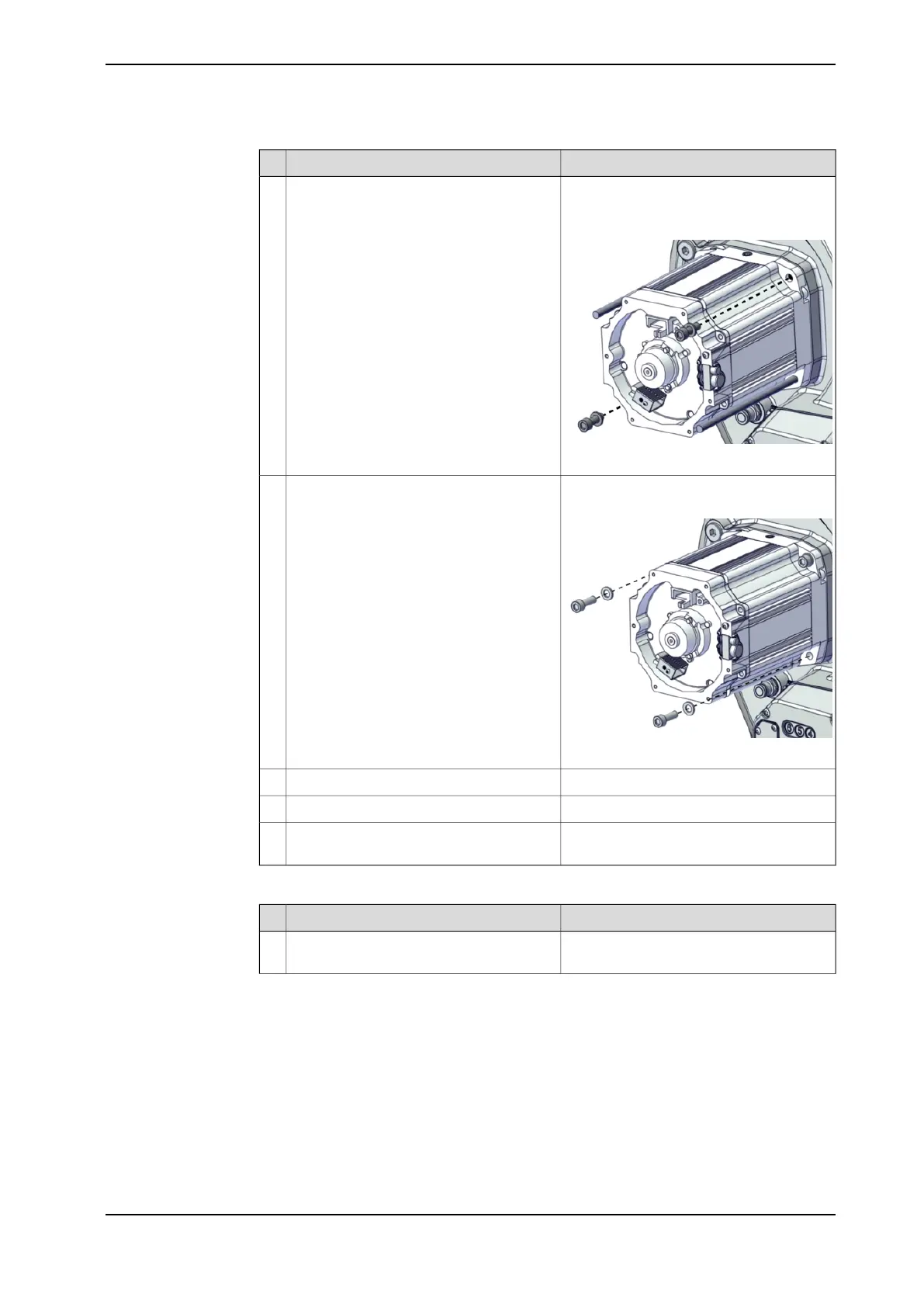

Fit two of the attachment screws and
washers.
8
Bits extender: 3HAC12342-1Use a bits extender in order to reach the
screws.
xx2000000467
Hex socket head cap screw: M10x30 12.9
Gleitmo 603+Geomet 500 (2 pcs)
Remove the guide pins and refit the remain-
ing attachment screws.
9
xx2300000044
Tightening torque: 50 Nm.Tighten the screws.10
Disconnect the brake release tool.11
See Performing a leak-down test on
page 178.
Perform a leak-down test.12
Connecting the motor cables
NoteAction
Put the motor cables in place in the open-
ing.
1
Continues on next page
Product manual - IRB 6710 375
3HAC085695-001 Revision: A
© Copyright 2023 ABB. All rights reserved.
5 Repair
5.7.2 Replacing the axis-2 motor
Continued
