4 Repair
4.7.1. Replacement of gearbox, axis 1
3HAC022033-001 Revision: K368
© Copyright 2004-2011 ABB. All rights reserved.

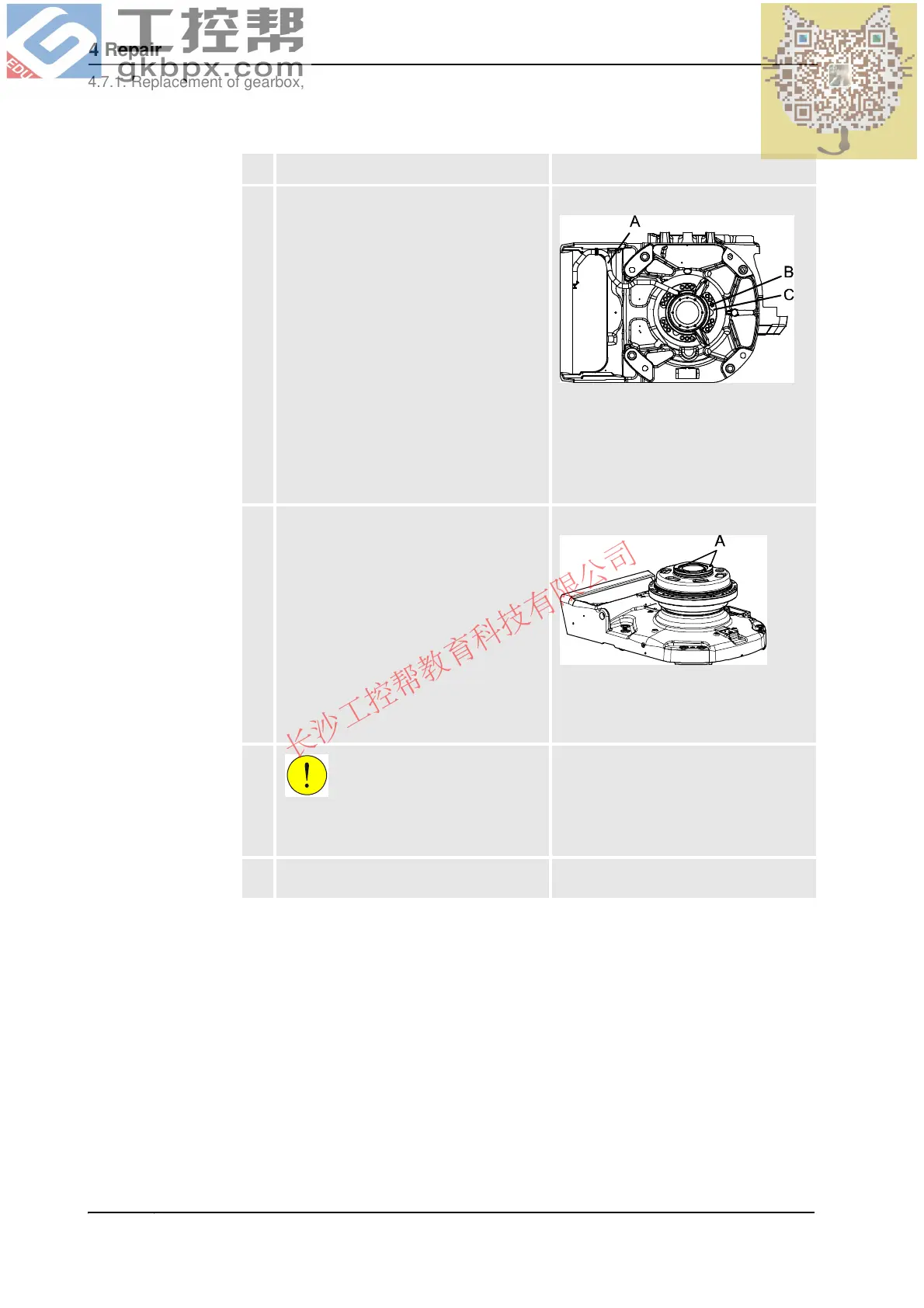

13. Unscrew the 18 attachment screws and
remove the 3 washers, shown in the figure
to the right.
xx0200000227
A view from below:
• A: Oil drain hose
• B: Attachment screws, gearbox
axis 1, 18 pcs
• C: Washers, 3 pcs
14. Remove the cable guide in the center of
gearbox 1 by unscrewing its attachment
screws.
xx0200000256
• A: Location for attachment screws,
cable guide (cable guide removed
in the figure)
15.
CAUTION!
The gearbox weighs 200 kg! All lifting
equipment used must be sized accordingly!
16. Lift the gearbox away with the already
mounted lifting tools.
Action Note
Continued
Continues on next page
