2 Installation and commissioning
2.5.1. Lifting robot with fork lift
733HAC022033-001 Revision: K
© Copyright 2004-2011 ABB. All rights reserved.
Fork lift set, 3HAC0604-2

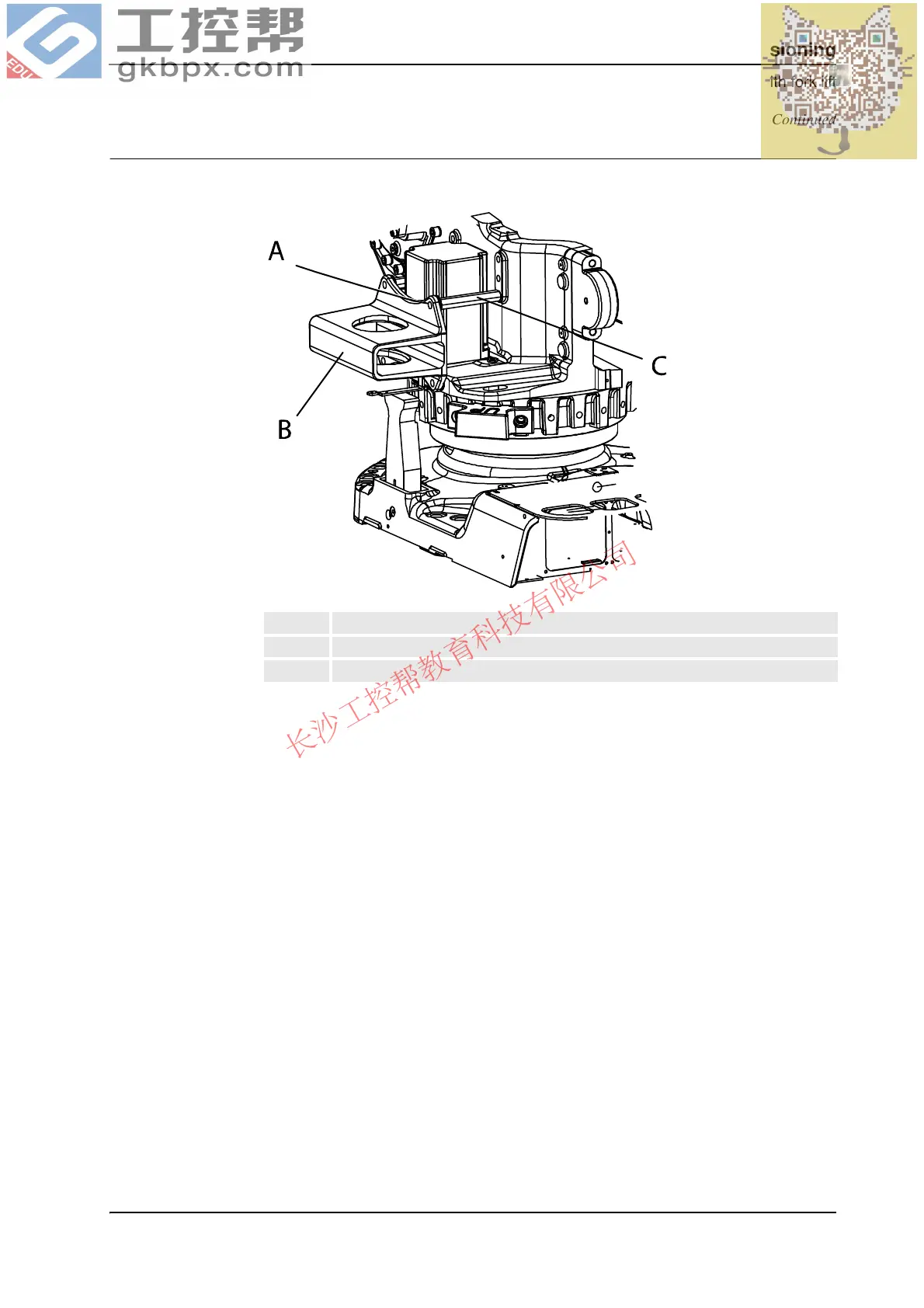

The fork lift set, 3HAC0604-2, is fitted to the robot as shown in the figure below.
xx0100000102
A Vertical attachment screws (4 pcs / fork lift pocket)
B Fork lift pockets (2 pcs)
C Spacer (2 pcs)
Continued
Continues on next page
