IEC10000032-1-en.vsd

IEC10000032 V1 EN

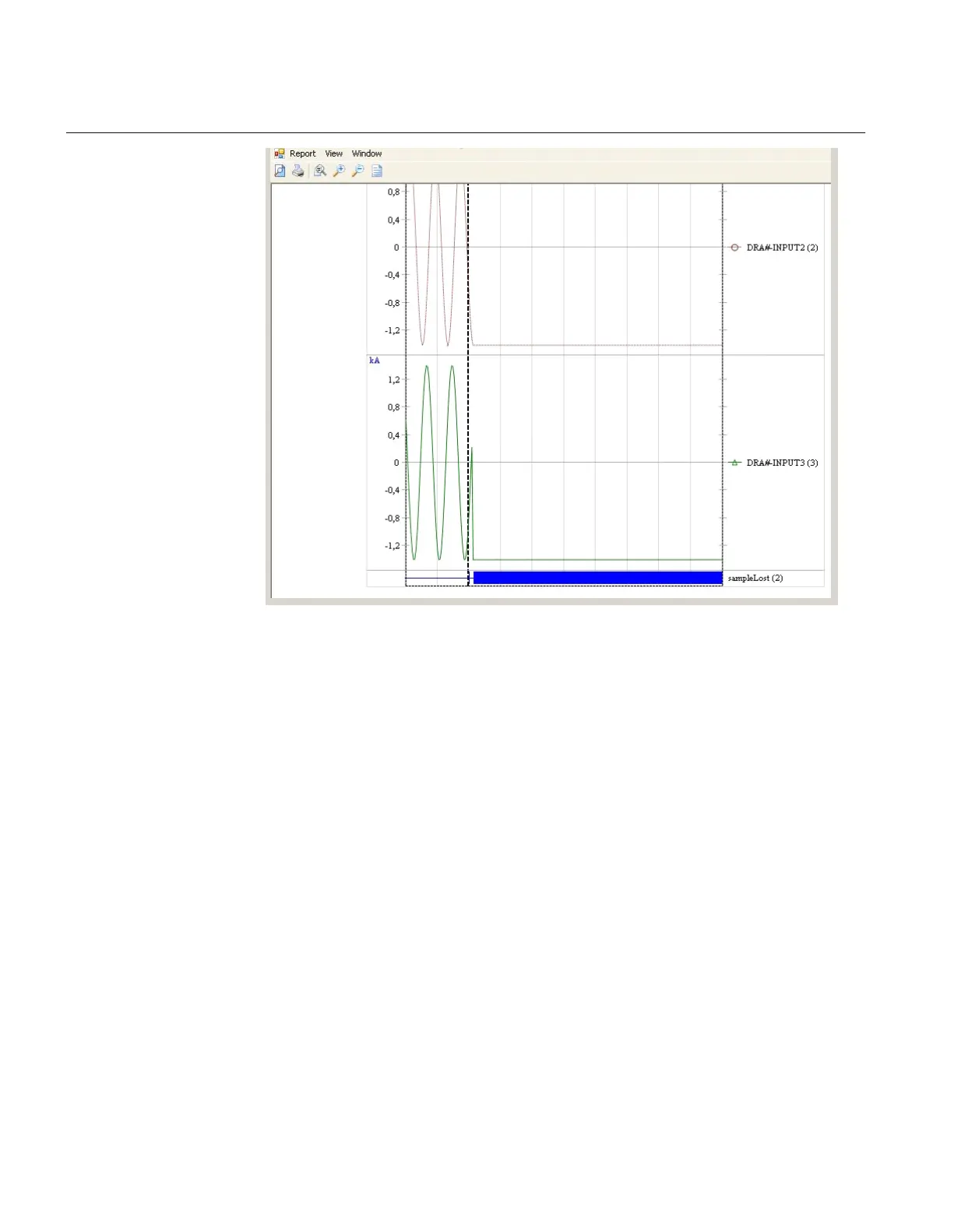

Figure 20: PCM600 report tool display after communication interruption

10.7 Testing the protection functionality

Each protection function must be tested individually by secondary injection.

• Verify operating levels (trip) and timers.

• Verify alarm and blocking signals.

• Use the disturbance handling tool in PCM600 to evaluate that the protection function

has received the correct data and responded correctly (signaling and timing).

• Use the event viewer tool in PCM600 to check that only expected events have

occurred.

Section 10 1MRK 504 165-UUS -

Testing IED operation

96 Transformer protection RET670 2.2 ANSI

Commissioning manual
