IEC140000143-1-en.vsd

IEC140000143 V1 EN

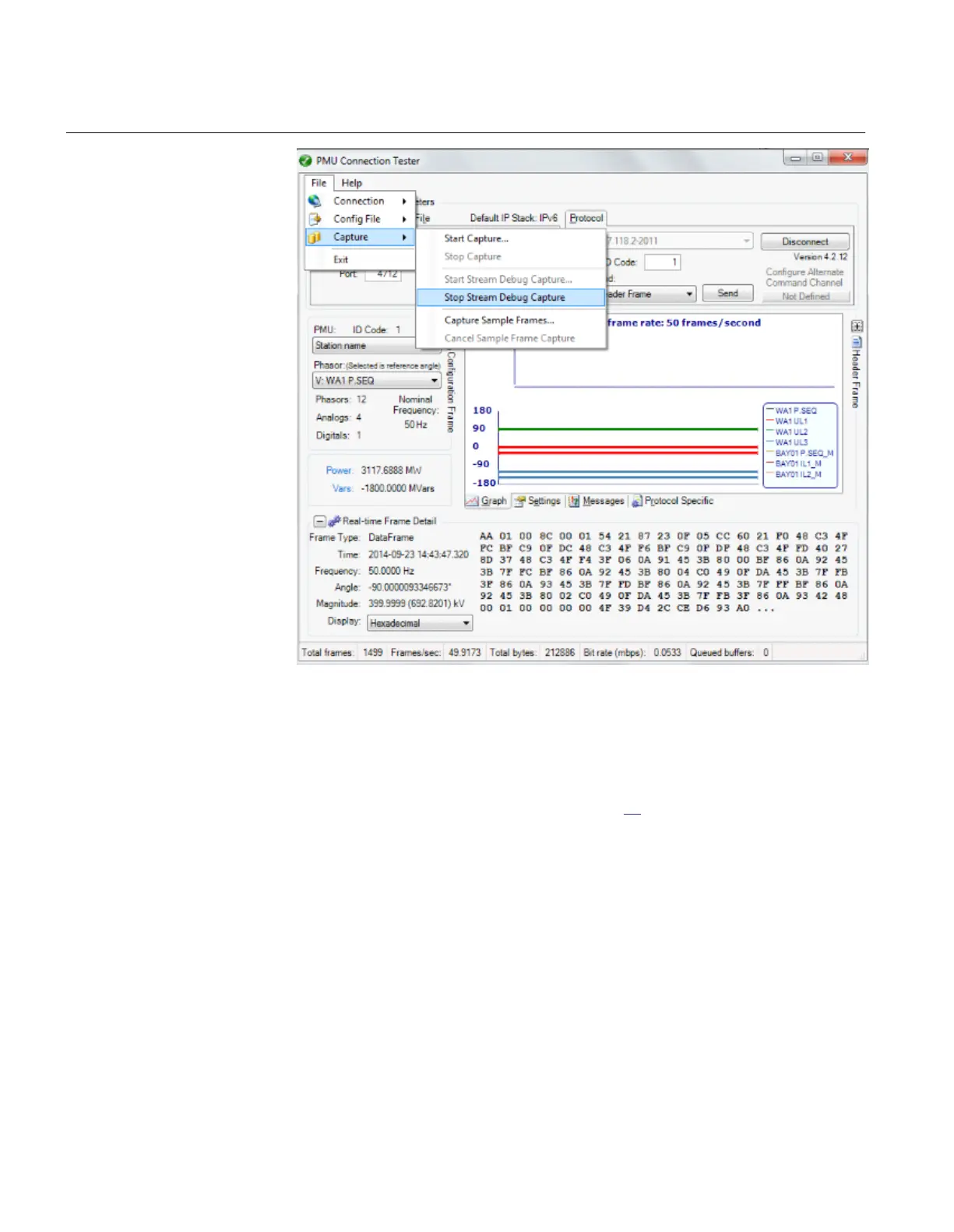

Figure 15: Stop capturing the IEEE C37.118 synchrophasor data

• Open the capture file and observe the captured synchrophasor data. In order to get the

Phasor names on top of each column (See figure 16), the capture process should start

before connecting the PMU Connection Tester to the PMU, i.e. first start the

capturing and then click Connect.

Section 9 1MRK 504 165-UUS -

Establishing connection and verifying the IEEE C37.118/1344 communication

84 Transformer protection RET670 2.2 ANSI

Commissioning manual
