ScreenMaster RVG200
Paperless recorder 4 Operation
OI/RVG200-EN 45
Diagnostics Logic Note. Greyed-out if Math & Logic software option is not enabled.
Touch to display the sub-menu.
Logic Eqtn 1
(to 8)

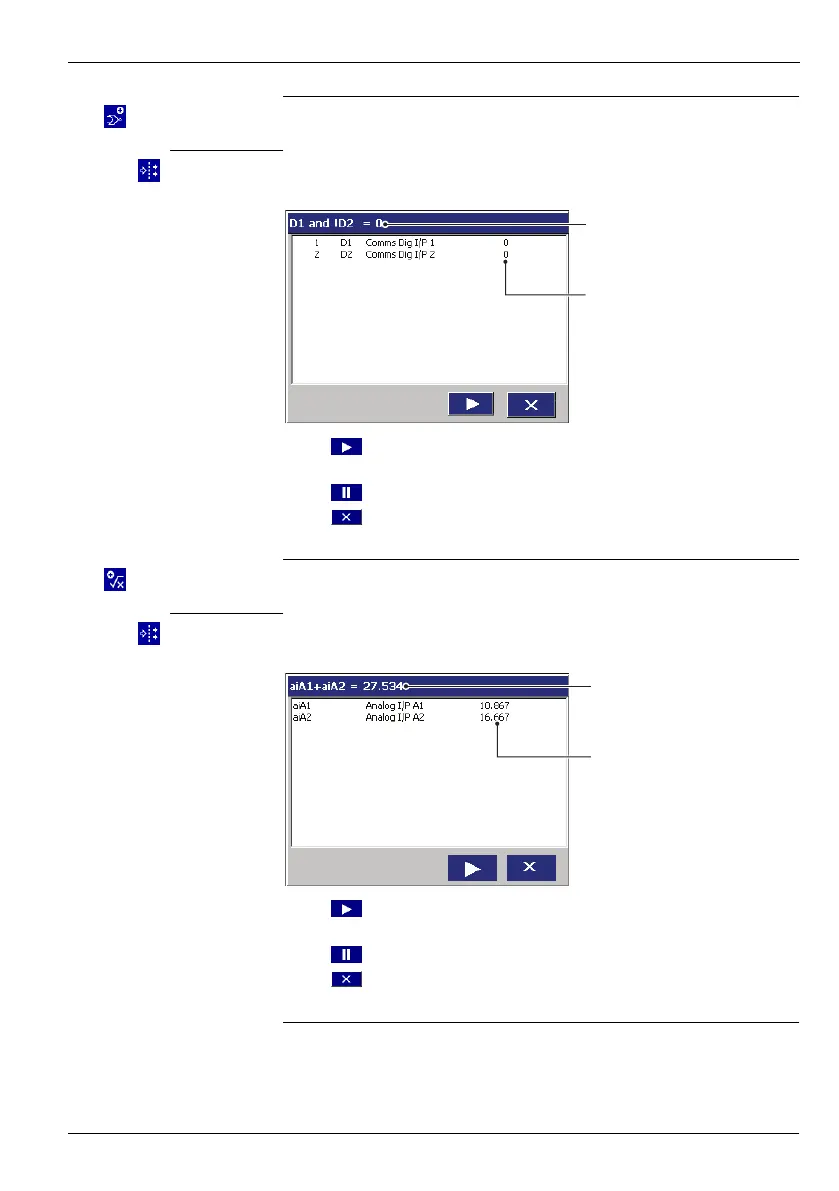

Touch relevant icon to diagnose the logic equation.
Note. Unconfigured logic equations are greyed-out.
Touch to run the equation and display its result based on current
inputs.
Touch to pause the calculation.
Touch to exit.
Diagnostics Maths Note. Greyed-out if Math & Logic software option is not enabled.
Touch to display the sub-menu.
MathsBlock 1
(to 9)
Touch relevant icon to diagnose the math block.
Note. Unconfigured math blocks are greyed-out.
Touch to run the calculation and display its result based on current
inputs.
Touch to pause the calculation.
Touch to exit.
Calculation result
Values of individual equation
elements
Calculation result
Values of individual math
block elements
