7.4 Overview of configuration
Referring to Fig. 7.4, configure the recorder as follows:
a Touch the required icon in the system configuration menu.
b Touch the edit button to select and edit the required parameter(s).
c Touch the next tab required and repeat step 2.
d Repeat steps 2 and 3 as required.
e When all changes are complete, touch to return to the system configuration menu.
f Touch the next configuration icon required and repeat steps 2 to 5.
g When all configuration changes are complete, touch to exit the Configuration level (refer to
Section 7.6, page 66).
Note. Only enabled process groups (and their associated channel options) and enabled software
options (for example, Math and Logic) are visible in the menu.

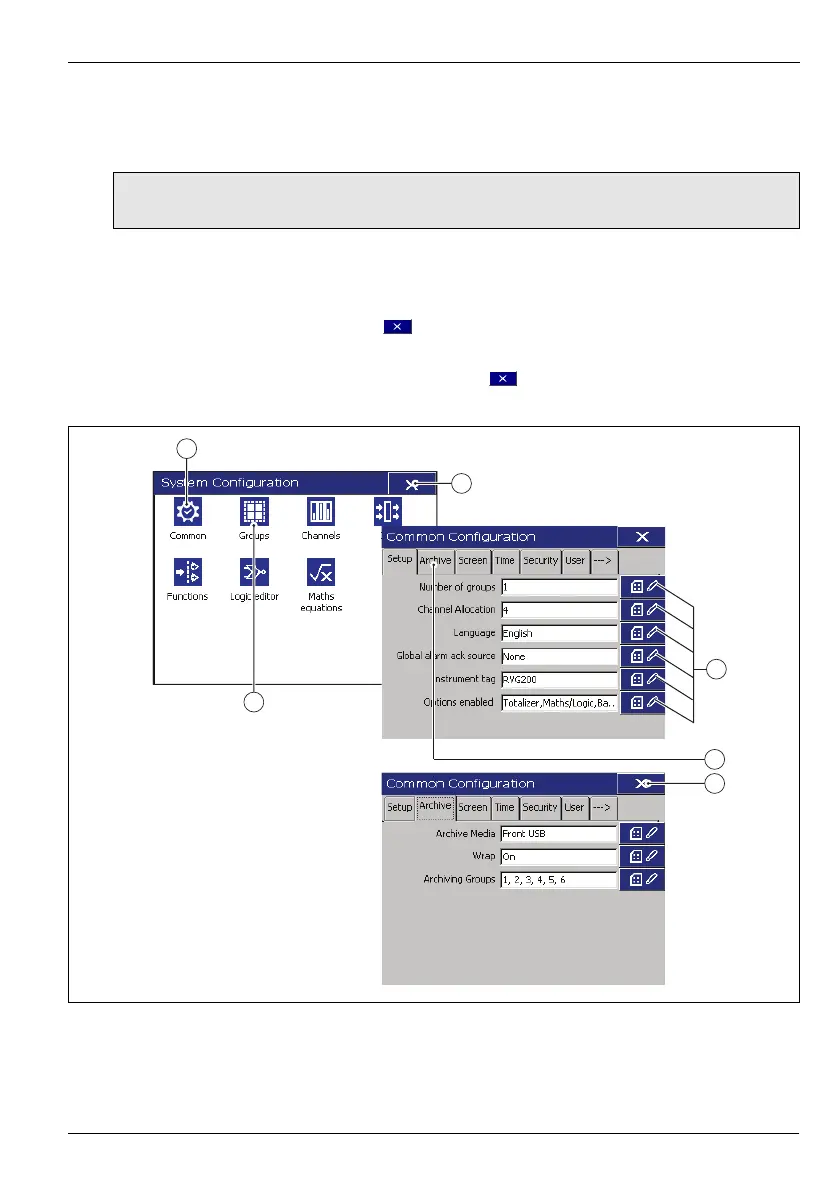

Fig. 7.4 Overview of configuration steps
