ScreenMaster RVG200
Paperless recorder 7 Configuration
96 OI/RVG200-EN
* Refer to Acknowledge Timeout on page 101.

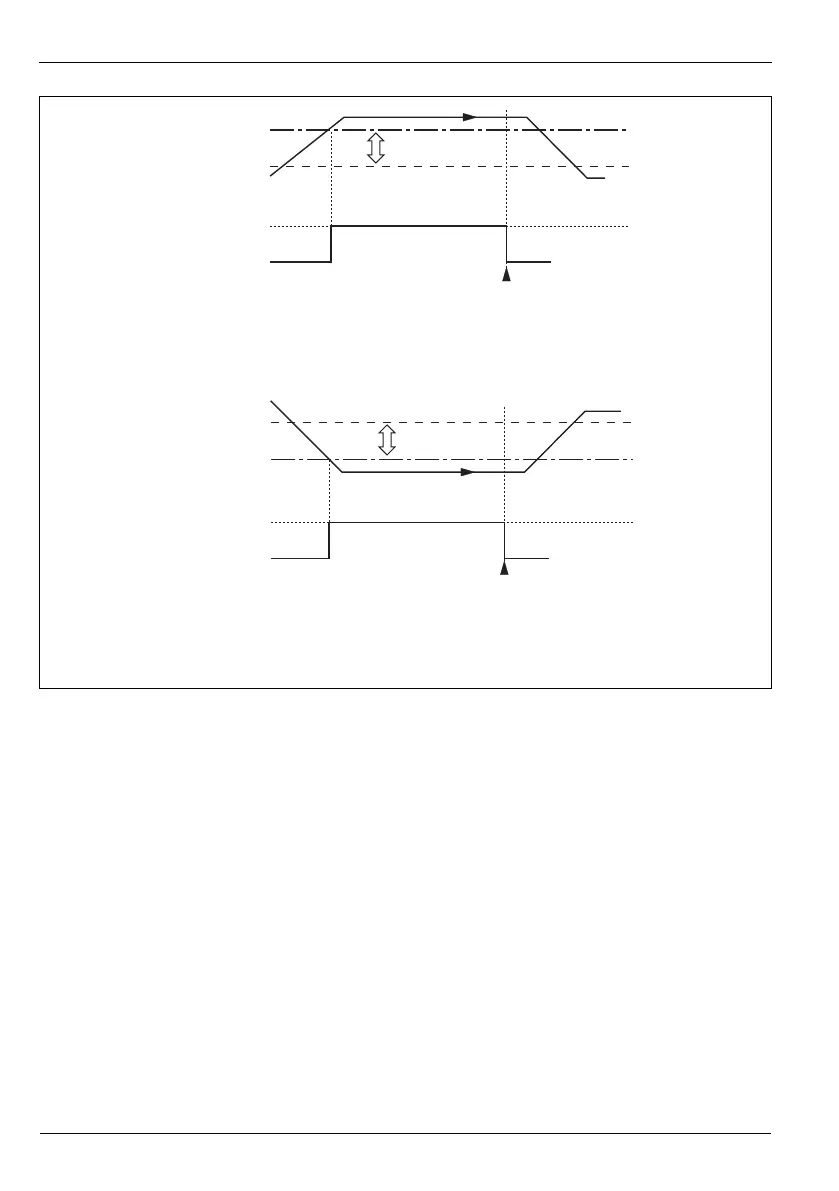

Fig. 7.13 High / Low annunciate alarms
Trip point
Process variable
Alarm on
Alarm off
Hysteresis
Alarm acknowledged
by Operator *
High annunciate alarm action
Trip point
Process variable
Alarm on
Alarm off
Hysteresis
Alarm acknowledged
by Operator *
Low annunciate alarm action
