ScreenMaster RVG200
Paperless recorder 7 Configuration
OI/RVG200-EN 97

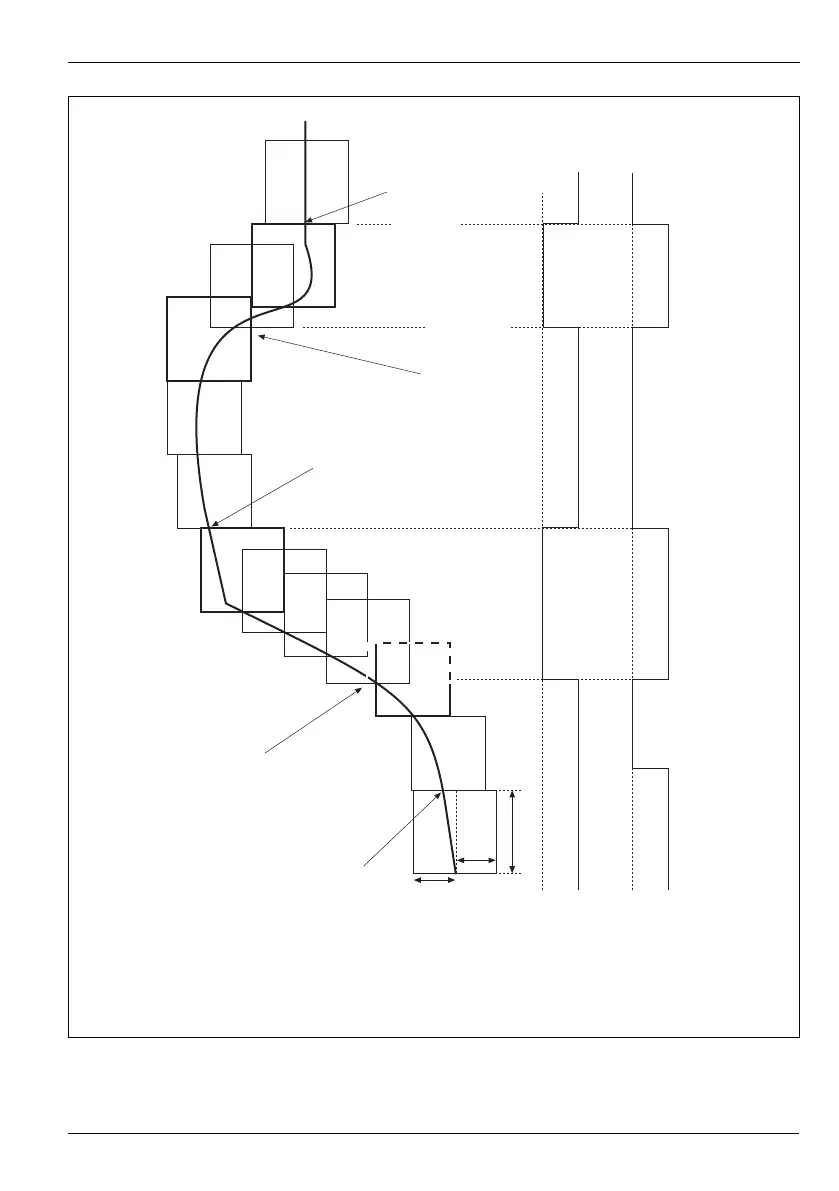

Fig. 7.14 Fast / Slow rate alarms
Alarm off
Alarm off
Alarm on
Alarm on
Fast rate alarm
Slow rate alarm
Deviation
Deviation
Period
Deviation exceeded –
fast rate alarm
becomes active,
slow rate alarm becomes
inactive, new period starts.
Deviation below limit
at end of time period –
slow rate alarm becomes
active, new period starts.
Deviation below limit
at end of time period –
fast rate alarm becomes
inactive, slow rate alarm
becomes active.
Deviation exceeded –
fast rate alarm becomes
active, slow rate alarm
becomes inactive,
new period starts
Deviation below
limit at end of time
period – alarm
becomes inactive.
