Art: 730009-00B Rev. Date: 09-Jan-12

CONFIRMING THAT THE CUSTOM REPORTABLE RANGES HAVE BEEN TRANSFERRED TO

THE i-STAT 1 HANDHELD FROM CDS VERSION 5 OR i-STAT/DE

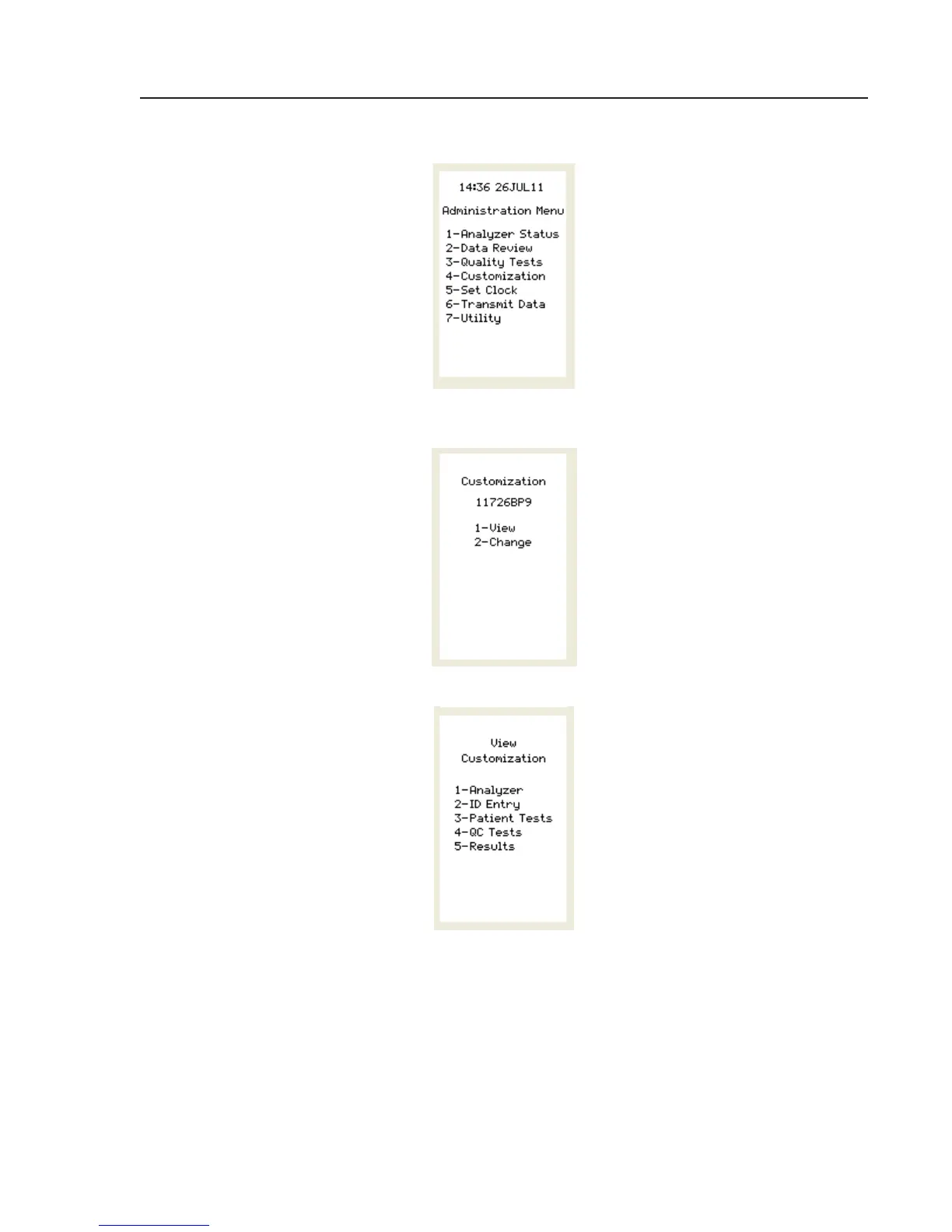

1. Power on the i-STAT 1 handheld and press MENU once to get to the Administration Menu.

2. Press 4 -Customization.

3. Press 1-View..

4. Press 5-Results.
